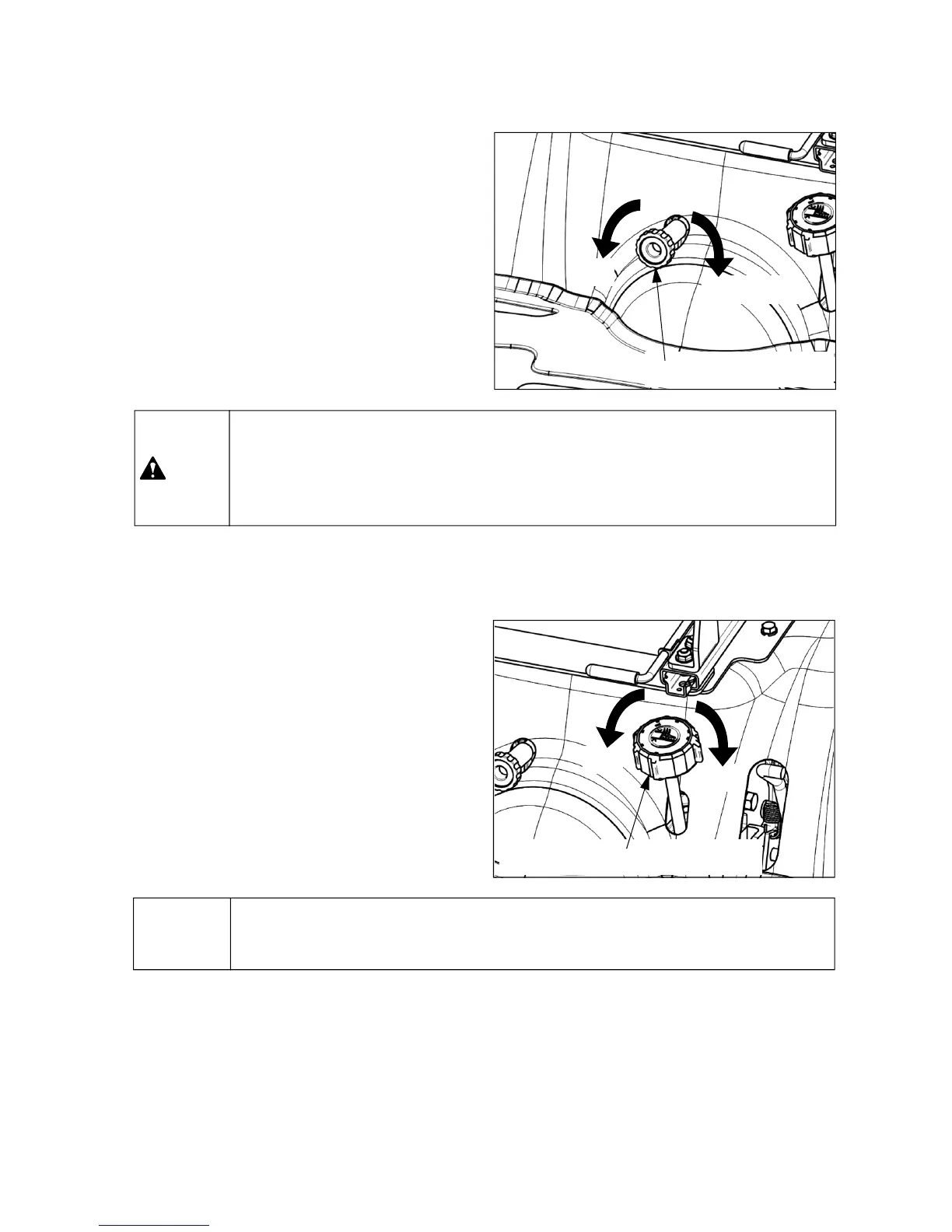

② Down speed control knob
z Turn the knob to the clockwise to lower the
implement slowly and to the counter-clockwise
to rise speed faster. If turning the knob clockwise
to lock, the implement is fixed and even If
lowering down the position control lever, the
implement can not be lowered down.
- Tiller : Slow in down speed.
- Plough : Fast in down speed.
z When working in hard ground, lower down the
implement slowly to avoid the rebound of the
implement.
▶When driving on the road, replacing tiller blades or removing grass around the tiller
blades, turn the down-speed control knob clockwise slightly to lock.
▶DO NOT OVER TIGHTEN (Control knob could lock valve in up position.)
Warning
Fast
Slow & Lock
Down-speed control knob
(4) Mid mower height adjustment knob
z This is used to adjust the height of the mid
mower while working.
z At first, lift up the 3-point linkage and mid mower.
z If rotating the knob counter-clockwise, the height
of the mid mower shall be lowered, and
otherwise the height shall be lifted.
z Lower down the 3-point linkage and mid mower.
Low
High
Mid mower height adjustment knob
▶Do not try to turn the mid mower height adjustment knob clockwise without lifting
the position control lever.
Notice
To Next Page
