(7) Adjusting Wheel tracks and tire replacement
z If the front wheel track is adjusted, check the
clearance between tires and tractor body case
by case. If necessary, the steering angle must
be adjusted.
(See page 4-25 in this manual)

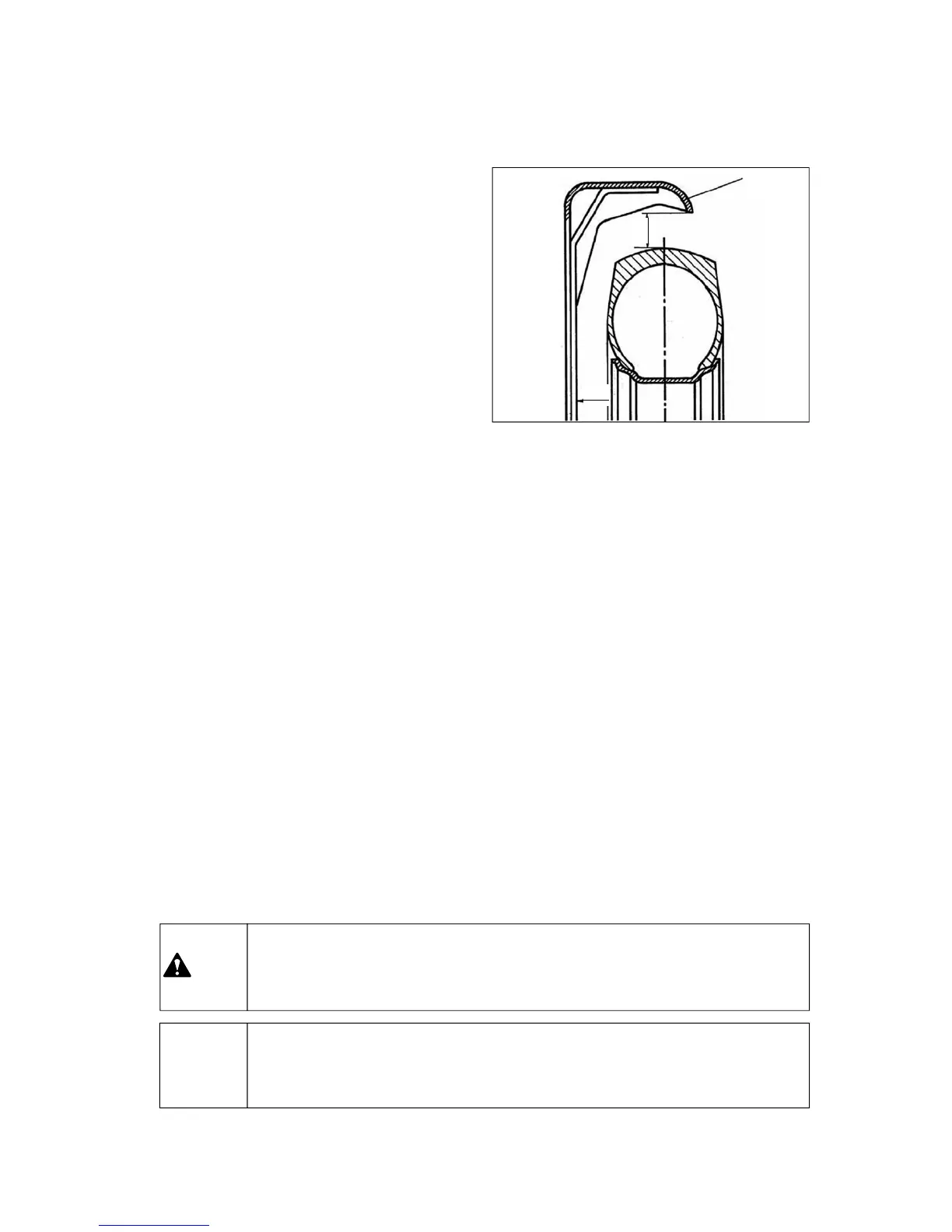

z When adjusting rear wheel track, check the
radial and lateral clearance between rear tire
and tractor chassis as below.
- A : 15mm (0.6 in) (Minimum)
- B : 30mm (1.2 in) (Minimum)
When adjusting the wheel track, pay attention to the direction of tire lugs. If it
shows “/\” shape when looked behind, it is correct.
Actual settings may vary depending on the brand of the rim and type of tire.
Notice
The tractor wheels are very heavy. PLEASE BE CAREFUL.
When removing the wheels, proceed with extreme caution, use a suitable hoist and
specific equipment to move heavy parts.
Warning
“A”
“B”
FENDER
