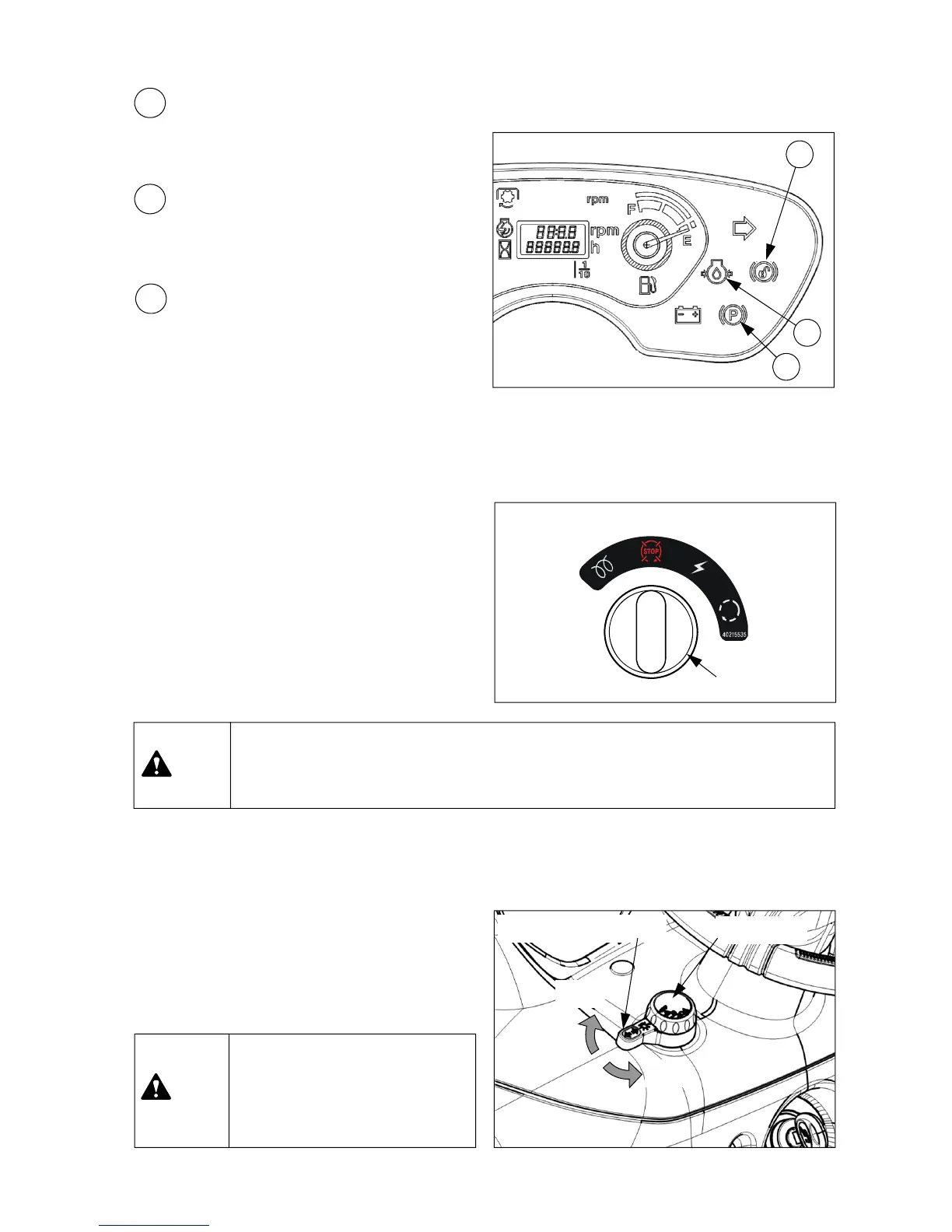

(2) Key switch
z “Preheat” – Preheat (Cold start aid)
z “OFF” – Engine stops, Power off
z “ON” – Power on
z “Start” – Engine start up
▶As soon as engine starts, turn the ignition key to “ON” position immediately. If not, it
may cause damage to starter motor.
▶If the tractor is not in use, the ignition key should be removed.
Caution
Key switch
Preheat
OFF
ON
Start
z This indicator shall be ON when turning the
key switch to ON position, and shall be OFF
after starting engine.
z If not, contact your authorized local dealer for
checking the engine lubrication system.
12
Engine oil pressure indicator
z This indicator shall be ON when pressing
brake pedal.
10
Parking brake indicator
11
Brake pedals not latched indicator
z This indicator is not used.
(3) Turn signal light switch
z This switch is used to give information to other
vehicles when turning to the left or right.
z If turning the switch to clockwise, the right turn
signal lights are blinking.
If turning the switch to counter-clockwise, the left
turn signal lights are blinking.
▶ When changing the lane or
direction on the road, operate
the turn signal lights to inform
other vehicles of your direction.
Caution
Turn signal light switch
Right
Left
Light switch
10
12
11
