LS tractor MT125 User Manual

1 -23

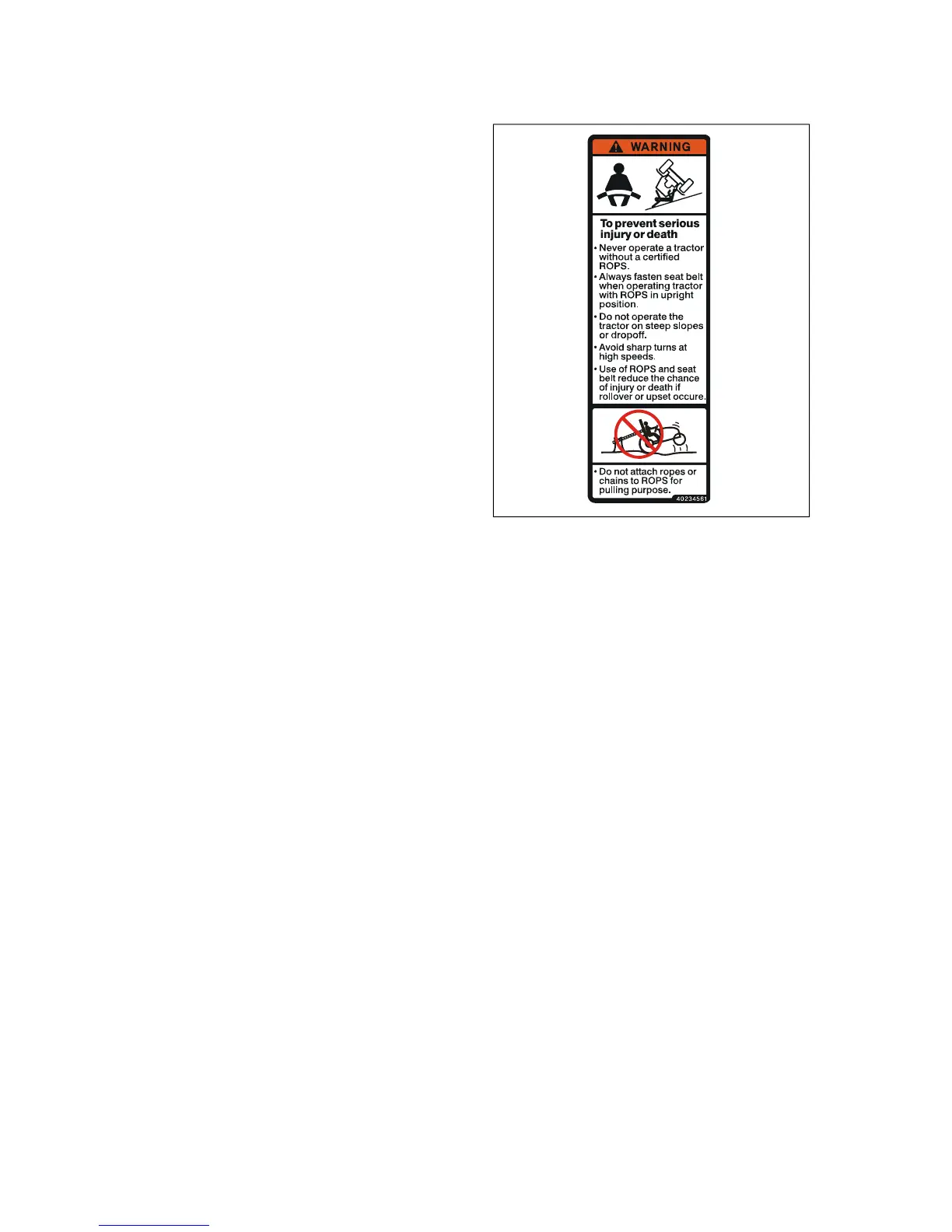

10. Location : On the left-hand side of the roll-
bar.
- TO PREVENT SERIOUS INJURY OR DEATH;
• Never operate a tractor without a certified
ROPS.
• Always fasten seat belt when operating tractor
with ROPS in upright position.
• Do not operate the tractor on steep slopes or
drop-off.
• Avoid sharp turns at high speeds.
• Use of ROPS and seat belt reduce the chance
of injury or death in roll-over or upset occur.
• Do not attach ropes or chains to ROPS for
pulling purpose.
- Failure to comply could result in death or
serious injury.
- Part No. : 40234561

LS tractor MT125 Specifications

General

Engine Power	24.7 HP
Transmission	Hydrostatic
Drive	4WD
Transmission Speeds	Infinite (2-range)
PTO Speed	540 RPM
Hydraulic System	Open center
3-Point Hitch	Category I
Tire Size (Front)	18x8.5-10
Tire Size (Rear)	26x12-12
Engine Type	Diesel
Fuel Capacity	6.6 gal
