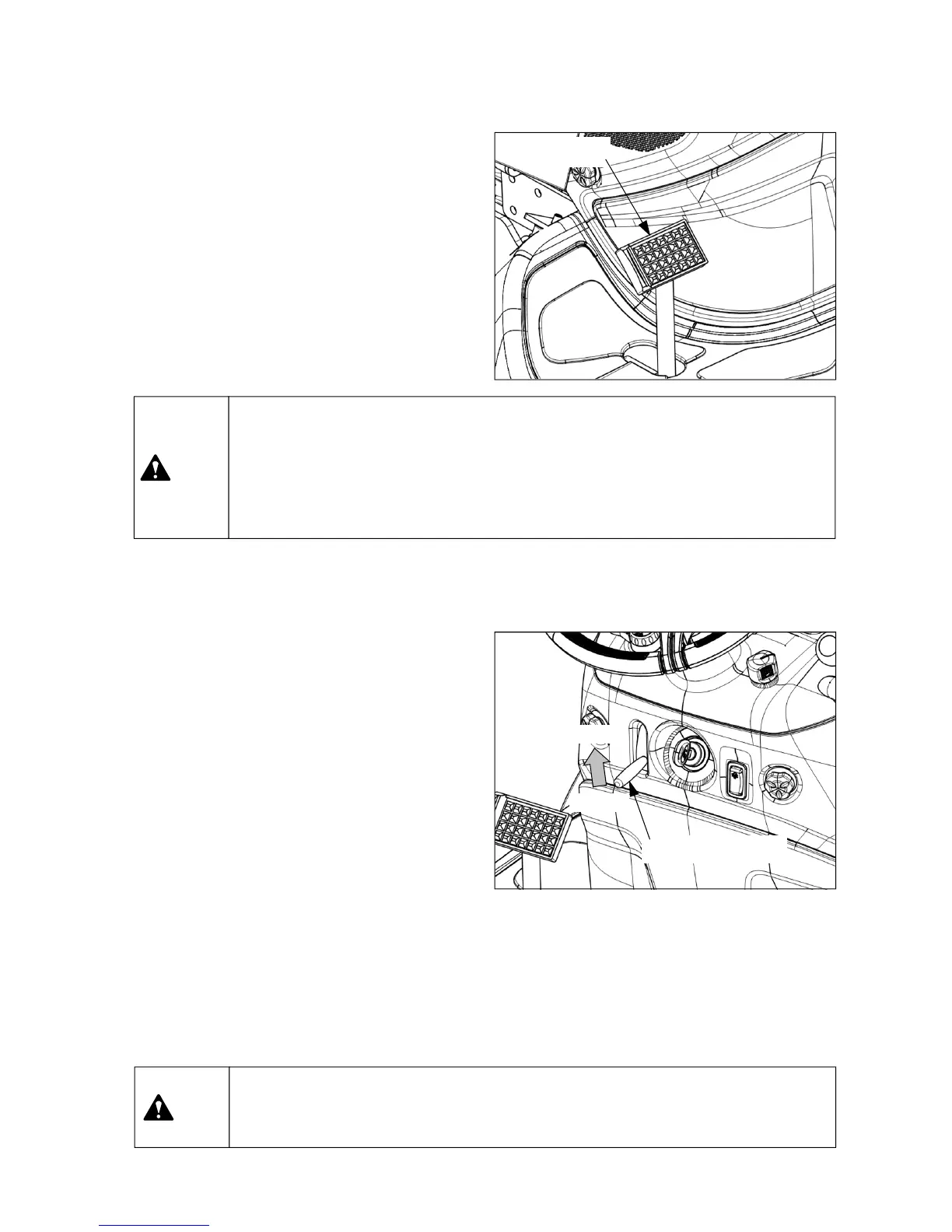

(7) Brake pedal
z The brake pedal for HST models is located at
the left-hand side of the front console.
z To stop the tractor, release the HST pedals. As
the HST pedals are returned to neutral position,
the tractor shall be stopped.
z This brake system is designed for parking brake
or emergency stop only. Do not use this brake
pedal for service brake.
z If 4WD is engaged, the braking force is applied
on front and rear wheels.
Brake pedal
Caution
▶ For HST models, when releasing HST pedals, the pedals shall be return to neutral
position and HST brake begins to work. But, you have to press this brake pedal
additionally in an emergency state.
▶ DO NOT ride your foot on the brake pedal while driving. If so, it may cause failure
of the brake device.
Parking brake lever
PARK
Release
Caution
▶ DO NOT drive the tractor while the parking brake is engaged. It may cause
damage to the brake or parking brake device.
(8) Parking brake lever
z To apply parking brake, press the brake pedal,
and lift the parking brake lever upward to engage
the parking brake ratchet.
z Release the brake pedal slowly with checking
the slippage of the tractor.
z To release the parking brake, press the brake
pedal little bit harder, and then the parking brake
lever shall be released by spring.
