LS tractor MT125 User Manual

4 -12

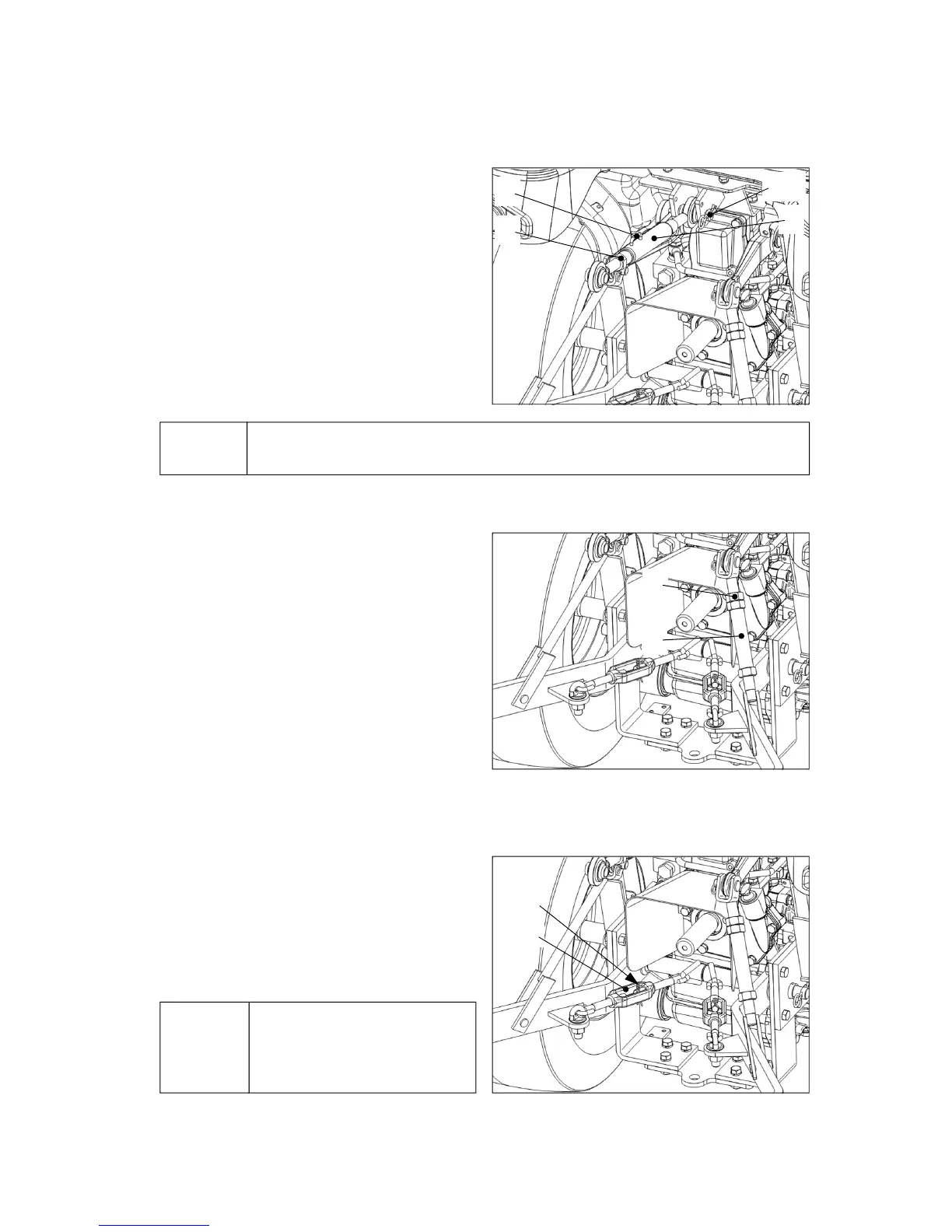

① Upper link installation and
adjustment
z Adjust the upper link ① depending on the
implements.
z Length of the upper link ① can be adjusted by
turning the grip ②.
z Fasten the lock nut ③.
z Adjusting range : 15.7 ~ 29.5 inch.
▶ Insert the snap-pin ⑤ firmly to prevent the upper link pin ④ from being escaped.
Notice
② Adjustment of the lift rod’s length
z Lift rod (RH) can be adjusted by loosening the
lock-nut ②, and turning the body ①.
z After adjusting, tighten the lock-nut ② again.
③ Adjustment of stabilizer’s length
z The length of the stabilizer can be adjusted by
turning the handle ② , after removing the fixing-
pin ①.
z After adjusting, insert the fixing-pin ① again.
▶ Adjust the lateral swinging
clearance of the implement to
be within 20~40mm (0.8~1.6 in).
Notice
②
①
④⑤
③
①
②
①
②

LS tractor MT125 Specifications

General

Engine Power	24.7 HP
Transmission	Hydrostatic
Drive	4WD
Transmission Speeds	Infinite (2-range)
PTO Speed	540 RPM
Hydraulic System	Open center
3-Point Hitch	Category I
Tire Size (Front)	18x8.5-10
Tire Size (Rear)	26x12-12
Engine Type	Diesel
Fuel Capacity	6.6 gal
