LS tractor MT125 User Manual

4 -14
z When driving the tractor without attaching implement, comply with the followings.
1. Fix upper link ⑤ or remove it.
2. Connect stabilizer ② to the lower link ③ to avoid lateral movement of the lower link.
z If the 3-point linkage is not necessary, remove it as follows.
1. Remove upper link pin ⑦, and detach the upper link ⑤.
2. Detach fixing parts between lift rod ①,④ and lower link ③ while holding lower link tightly.
And, put down the lower link.
3. Remove the lift rod pin ⑥ and detach lift rod (LH) and lift rod (RH).
4. Detach the lower link ③ and stabilizer ② after removing the lower link pin ⑧.

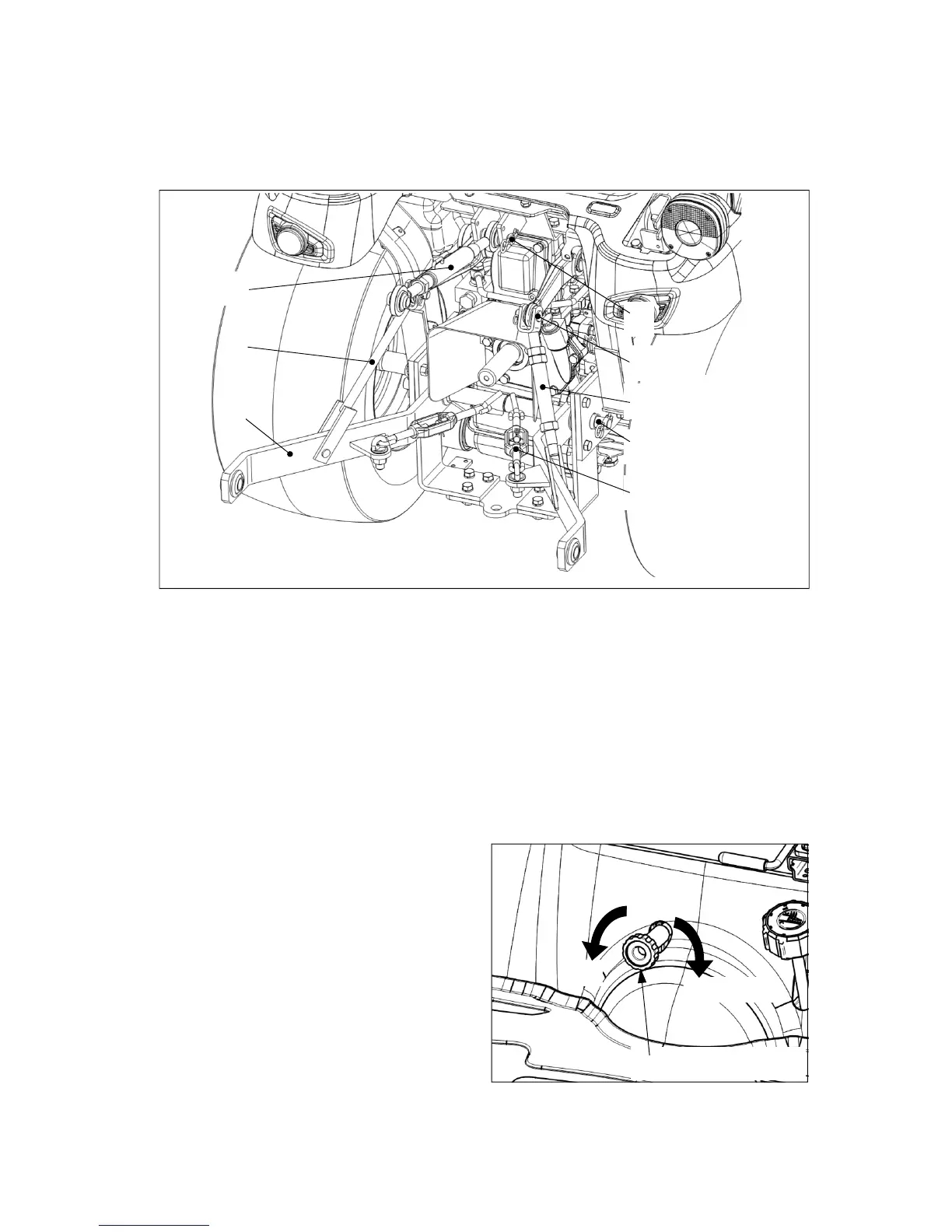

⑤ Handling of the 3-point linkage
①
④
③
⑤
②
⑥
⑦
⑧
Fast
Slow & Lock
Down-speed control knob
z When using hitch/drawbar, or driving on road, lift
up the 3-point linkage and fix it by turning the
down speed control knob to lock position.
① Lift rod (LH)
② Stabilizer
③ Lower link
④ Lift rod (RH)
⑤ Upper link
⑥ Lift rod pin
⑦ Upper link pin
⑧ Lower link pin

LS tractor MT125 Specifications

General

Engine Power	24.7 HP
Transmission	Hydrostatic
Drive	4WD
Transmission Speeds	Infinite (2-range)
PTO Speed	540 RPM
Hydraulic System	Open center
3-Point Hitch	Category I
Tire Size (Front)	18x8.5-10
Tire Size (Rear)	26x12-12
Engine Type	Diesel
Fuel Capacity	6.6 gal
