LS tractor MT125 User Manual

4 -17
④ Attaching PTO drive shaft
z When connecting PTO drive shaft to the PTO shaft and implement, make sure to check the fixing
status of the locking pins.

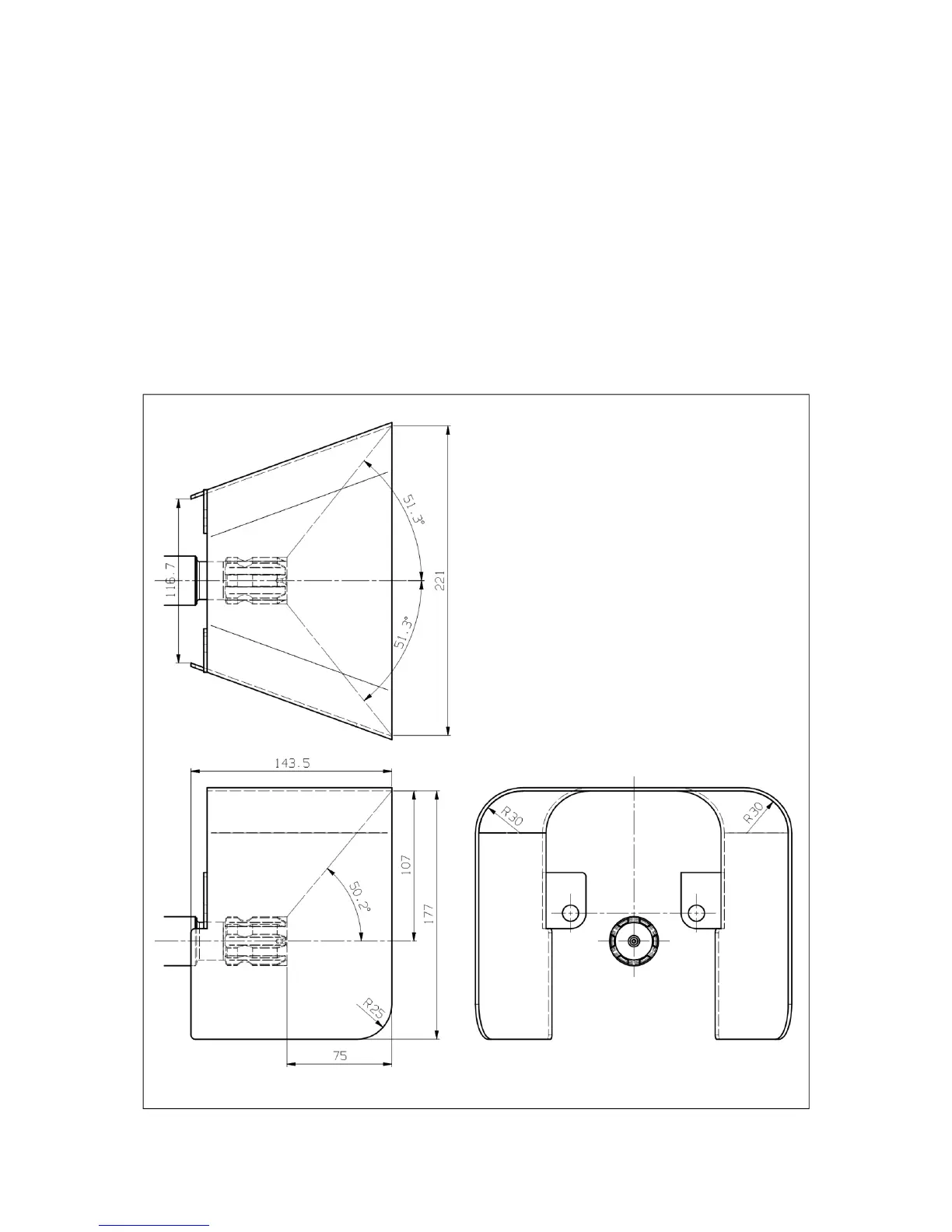

z When attaching implements with power take-off drive shafts, refer to the drawings as below.
z After installing implements,
- check the inclination of the PTO drive shaft,
- check the interference with PTO safety cover and other structure,
- check the effective engaging length of the PTO drive shaft according to the position of the 3-point
linkage.
z The stiff inclination of the drive shaft makes a loud noise and may cause a failure of the driveline.

LS tractor MT125 Specifications

General

Engine Power	24.7 HP
Transmission	Hydrostatic
Drive	4WD
Transmission Speeds	Infinite (2-range)
PTO Speed	540 RPM
Hydraulic System	Open center
3-Point Hitch	Category I
Tire Size (Front)	18x8.5-10
Tire Size (Rear)	26x12-12
Engine Type	Diesel
Fuel Capacity	6.6 gal
