XGB Analog edition manual

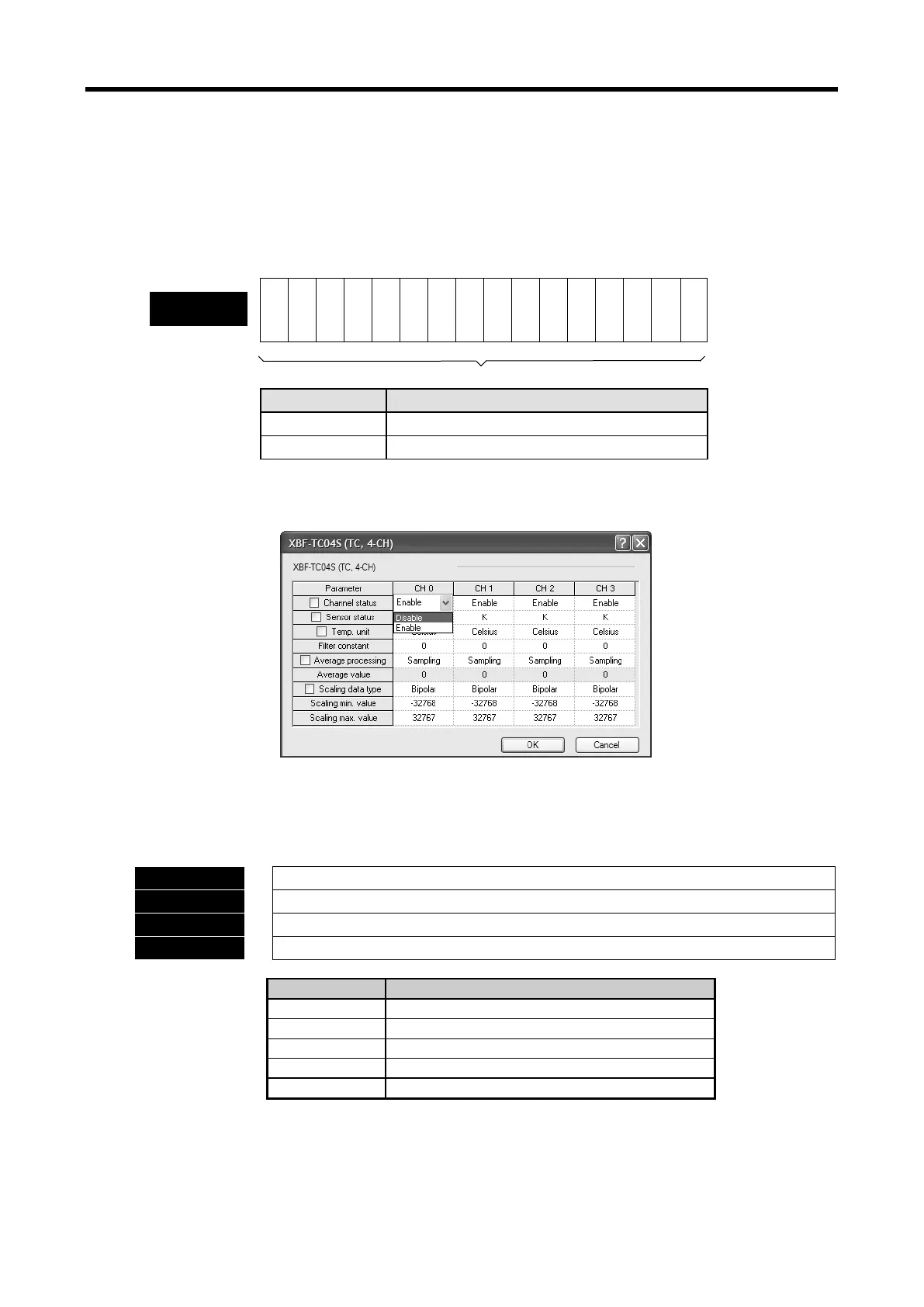

(1) Designating Channel (Address 0)
(a) Temperature conversion module Enable/Disable can be set to each channel.
(b) By prohibiting a channel not to use from conversion, conversion interval by channels can be
shortened.
(c) If channel to use is not designated, every channel can not be used.
(d) In case of using PUT instruction,temperature conversion module Enable/Disable are as follows.
BIT
Description
0
Stop
1
Operate
(e) Vales set in B4 ~ B15 are ignored.
(f) This area shows the same results with operation channel designation in I/O parameter setting
window.
(2) Sensor Type Setting Area (Address 1~4)
(a) Thermocouple sensor type can be set per channel.
(b) In case of using PUT instruction, Sensor Type Setting Area is as follows.
B15 B14 B13 B12 Bt11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0
Address “1”
CH0 sensor type setting
Address “2”
CH1 sensor type setting
Address “3”
CH2 sensor type setting
Address “4”
CH3 sensor type setting
Word
Description
0
K type
1
J type
2
T type
3
R type
4
0~100mV (XBF-TC04B)
(c) When input value is larger than 4, 0 (K type) is selected by force.
But, U0x.01.8~ U0x.01.B (setting error representation, in case of IEC type, %UX0.x.24
~ %UX0.x.27) are on, error information is displayed at bit 0 of address 27~30.
B15
B14
B13
B12
B11
B10
B9
B8
B7
B6
B5
B4
B3
B2
B1
B0
—
— — — — — — — — — — —
C
H
3
C
H
2
C
H
1
C
H
0
Address “0”
5 - 44
