Chapter 5 Thermocouple Input Module (XBF-TC04S,TC04B)

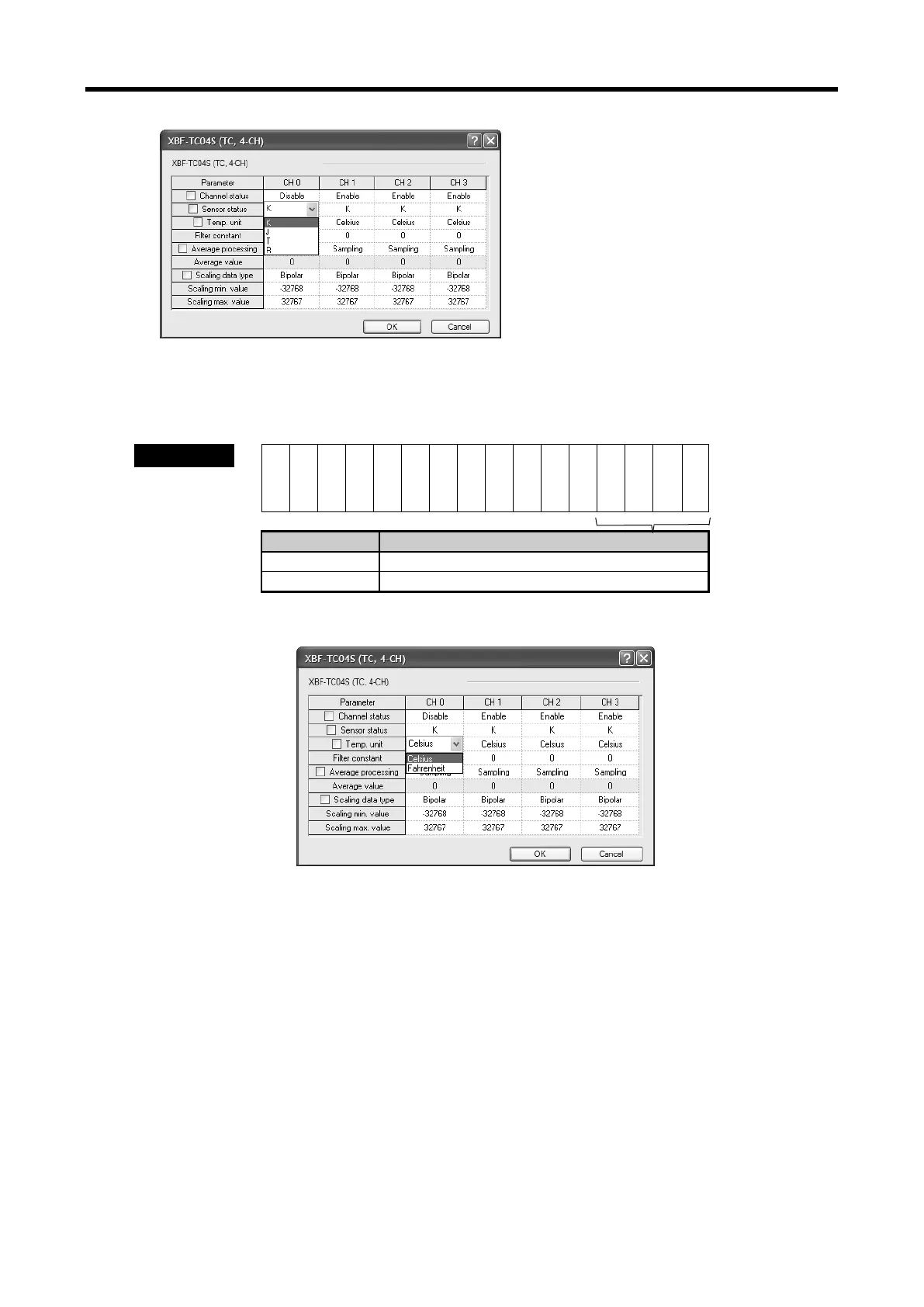

(d) This area shows the same results with sensor type designation in I/O parameter setting window.
(3) Temp. unit setting area (Address 5)
(a) Temp. unit (Celsius/ Fahrenheit) of thermocouple input module can be set per channel.
(b) In case of PUT instruction, Temp. unit setting area is as follows.
B15
B14
B13
B12
B11
B10
B9
B8
B7
B6
B5
B4
B3
B2
B1
B0
Address “5”
— — — — — — — — — — — —
C
H
3
C
H
2
C
H
1
C
H
0
Bit
Description
0
Celsius
1
Fahrenheit
(c) Vales set in B4 ~ B15 are ignored.
(d) This area shows the same results with temp. unit setting in I/O parameter setting window.
(4) Filter constant setting area (Address 6~9)
(a) Filter constant can be set per channel.
(b) Filter constant ranges 0 or 200 ~ 64000.
(c) If filter constant is set as 0, filtering process is not executed.
(d) When input is 1~199 or larger than 6400, 0 (filter disable) is selected by force.
But, U0x.01.8~ U0x.01.B (setting error representation, in case of IEC type, %UX0.x.24
~ %UX0.x.27) are on, error information is displayed at bit 1 of address 27~30.
(e) In case of PUT instruction, filter constant setting address is as follows.
5 - 45
