B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0
Address “6”
CH0 filter constant setting (0, 200~64000)
Address “7”
CH1 filter constant setting (0, 200~64000)
Address “8”
CH2 filter constant setting (0, 200~64000)
Address “9”
CH3 filter constant setting (0, 200~64000)

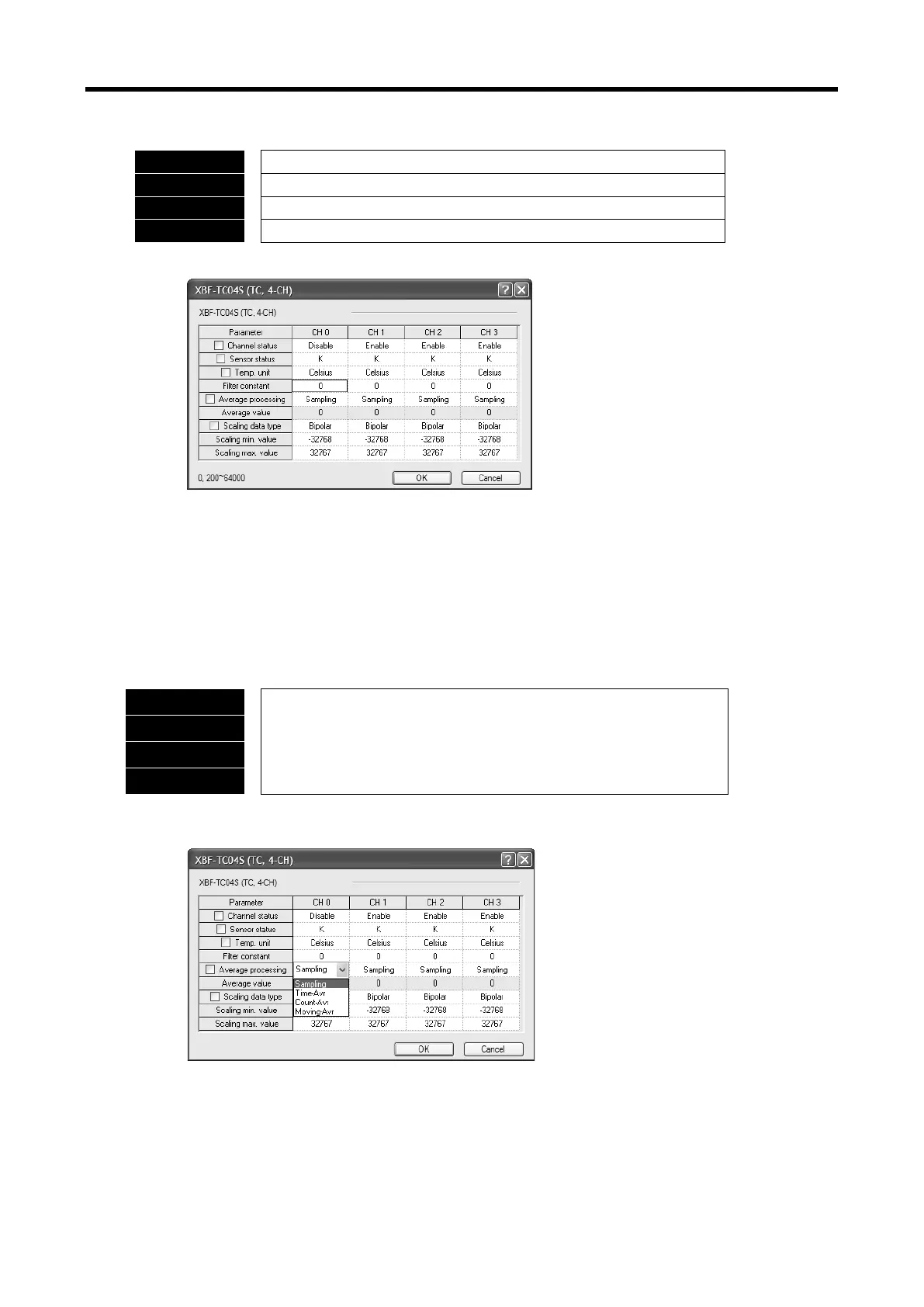

(f) This area shows the same results with filter constant setting in I/O parameter setting window.
(5) Average processing setting area (Address 10~13)
(a) Average processing method can be set per channel.
(b) Average processing method (Sampling: 0 / time-avr.: 1 / count-avr.: 2 / moving-avr.: 3)
(c) When input is larger than 4, 0 (sampling) is set by force.
But, U0x.01.8~ U0x.01.B (setting error representation, in case of IEC
type, %UX0.x.24~%UX0.x.27) are on, error information is displayed at bit 2 of address 27~30.
(d) In case of PUT instruction, average processing setting method is as follows.
B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0
Address “10”
CH# average processing method setting
0: Sampling
1: Time-average
2: Count-average
3: Moving-average
Address “11”
Address “12”
Address “13”
(e) This area shows the same results with average processing method setting in I/O parameter
setting window.
