Chapter 5 Thermocouple Input Module (XBF-TC04S,TC04B)
(6) Average value setting area (Address 14~17)
(a) Average value can be set per channel.
(b) In case average processing method is sampling, values of this area are ignored.
(c) In case of using PUT instruction, average value setting address is as follows.
B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0
Address “14”
CH# average value setting
Time-average: 400 ~ 64000[ms]
Count-average: 2 ~ 64000[times]
Moving-average: 2 ~ 100
Address “15”
Address “16”
Address “17”
(d) When input is out of range, the min. value of each address is selected by force.
But, U0x.01.8~ U0x.01.B (setting error representation, in case of IEC type, %UX0.x.24
~ %UX0.x.27) are on, error information is displayed at bit 3~5 of address 27~30.
(Bit 3: time-average, bit 4: count-average, bit 5: moving-average)
Ex.) When selecting the Time-average and setting average value as 200, 400ms is selected in
address “14” by force.

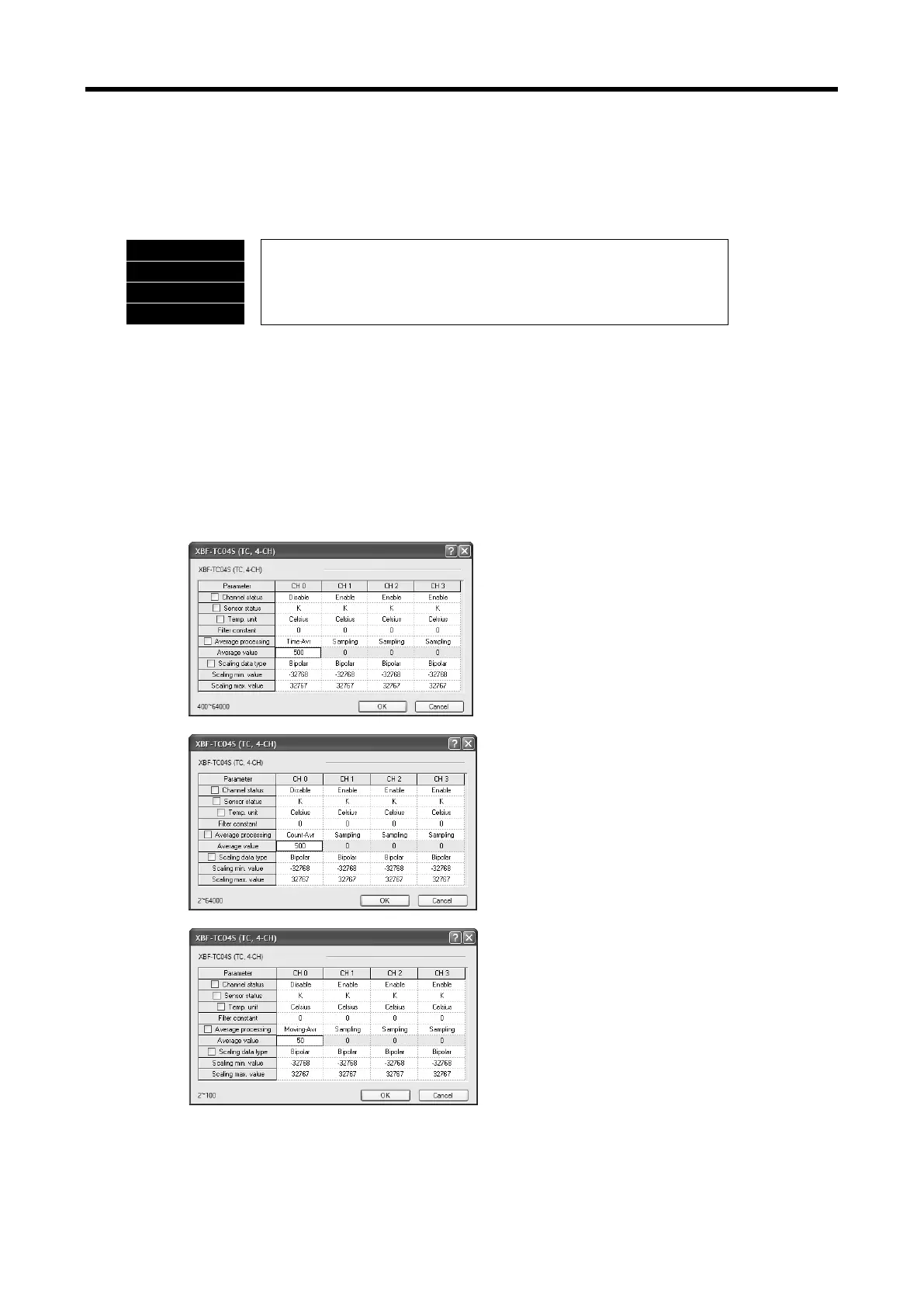

(e) This area shows the same results with average value setting in I/O parameter setting window.
In the I/O parameter setting window, prohibition function is provided not to set value that is out
of range. (In case of setting value that is out of range, that values are displayed with red color
and error message is displayed.)
1) Time-Avr.
2) Count-Avr.
3) Moving-Avr.
