Chapter 7 Analog Input Module (XBF-AD08A)
7.12 Example Program
(1) This sample program sets up operating parameters of analog input module.
(2) Initial settings are saved in the internal memory of the module by input by once.
(3) The sample program below controls the output data of the analog input module at slot #1 and
check open wire.
7.12.1 Example of [I/O Parameter] Usage

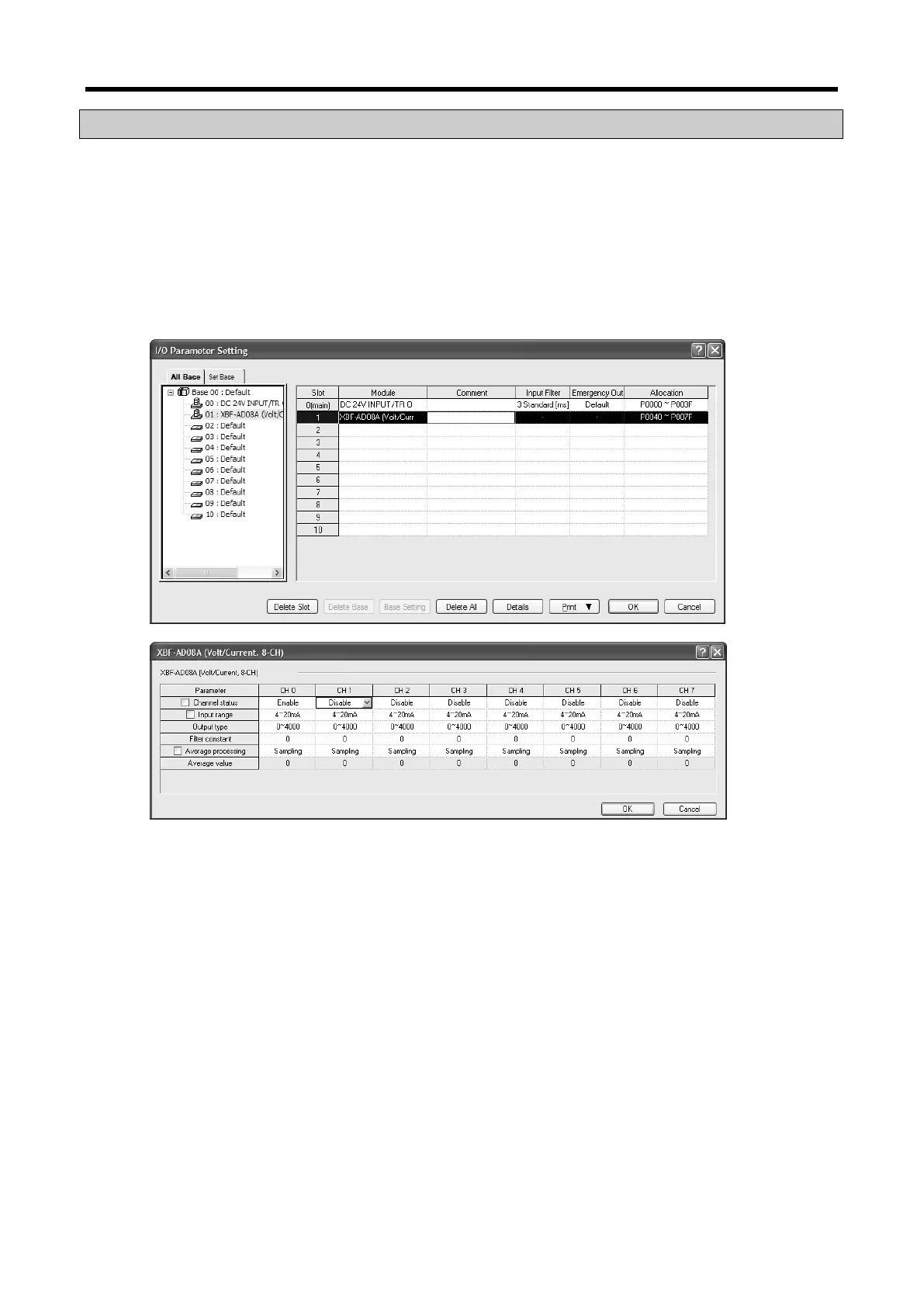

(1) I/O Parameter Setting Window
(a) Input Channel 0 is set to operating channel and input range is set to 4~20mA.
