LSIS XBF-AH04A

XGB Analog edition manual
`

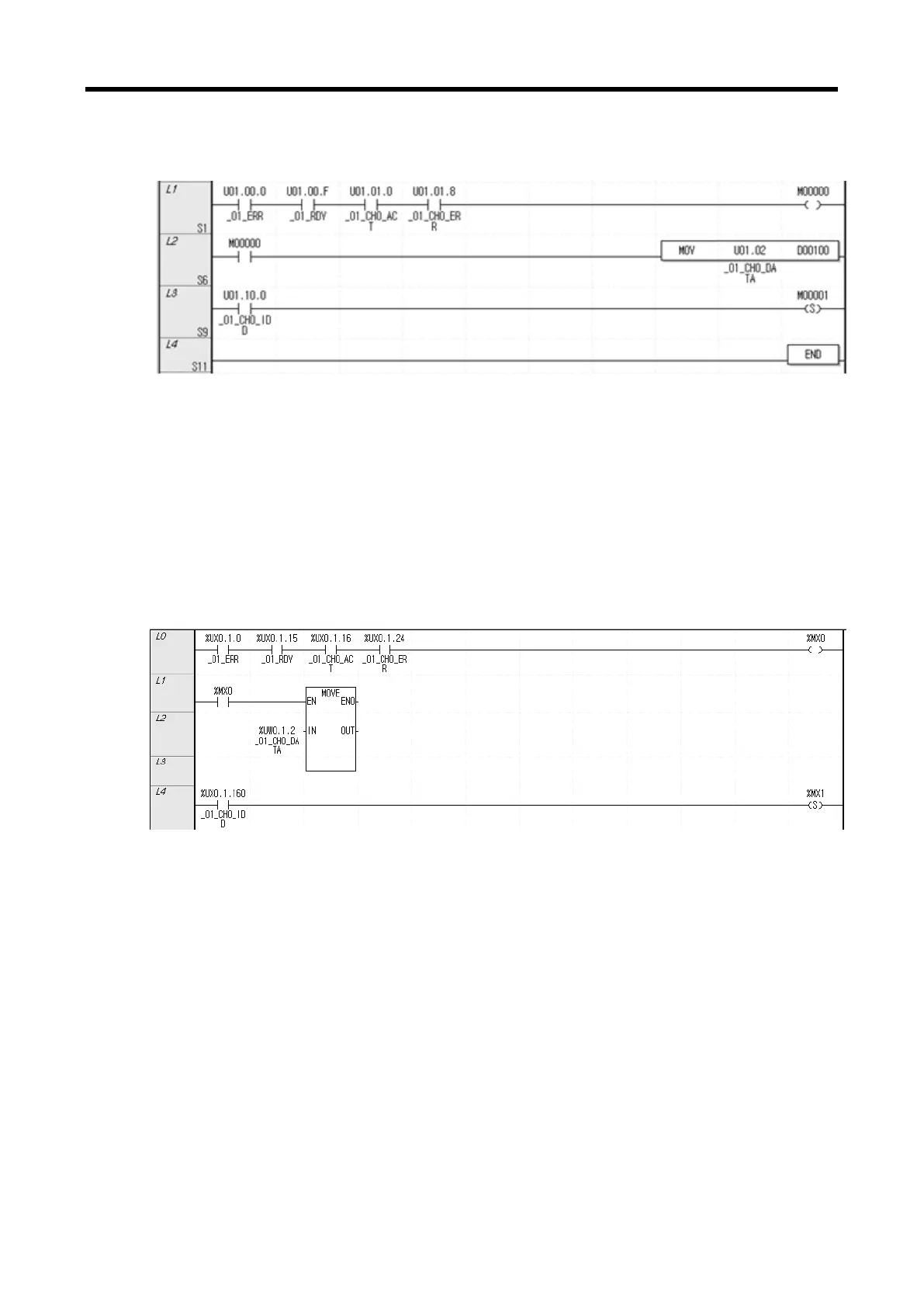

(2) Sample Program
(a) When the module is in normal operation, M0000 is turned On.
U01.00.0 (Module Error) = Off
U01.00.F (Module Ready) = On
U01.01.0 (Input Channel 0 in-operation) = On
U01.01.8 (Input Channel 0 Error) = Off
(b) When M0000 is ON, Input Channel 0 Converted Value(U01.02) is moved to D00100.
(c) If open-wire error occurs in channel 0, U01.10.0 (channel 0 open-wire) is ON, and M0001 bit is
set.
(3) Sample Program (IEC type)
(a) When the module is in normal operation, %MX0 is turned ON.
%UX0.1.0(Module Error) = Off
%UX0.1.15(Module Ready) = On
%UX0.1.16(Channel 0 in-operation) = On
%UX0.1.24(Channel 0 Error) = Off
(b) When %MX0 is ON, Input Channel 0 Converted Value(%UW0.1.4) is transferred to “CH 0
Input” variable.
(c) If open-wire error occurs at Channel 0, %UX0.1.160 (Channel 0 open) turns ON and %MX1 bit
is set.
CH0 program
Output CH0 program
CH 0 input
7 - 36
