Chapter 11 RTD Input Option Board (XBO-RD01A)
- Here describes how to specify the operation condition of RTD input option board.
- RTD input option board is installed on slot 9.
- Initial setting value is saved in internal memory of module with one input.
- The following program is an example to read temperature value and disconnection information.

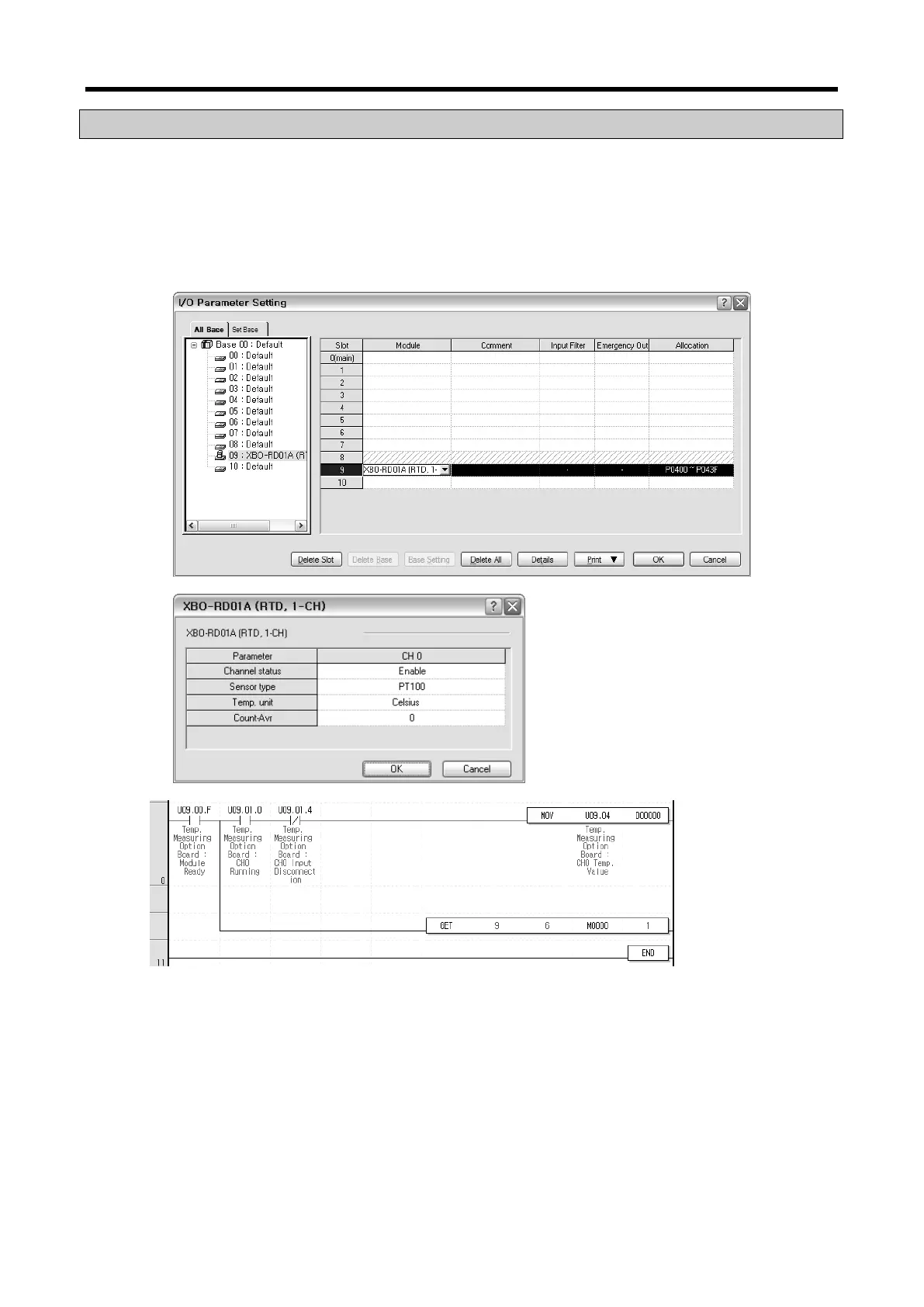

(1) Program example using [I/O Parameter Setting]
Moving channel 0 temp. value to
D0 area
Moving channel 0 disconnection
information to M0
11 - 25
