LSIS XBF-AH04A

To Next Page

To Previous Page

XGB Analog edition manual

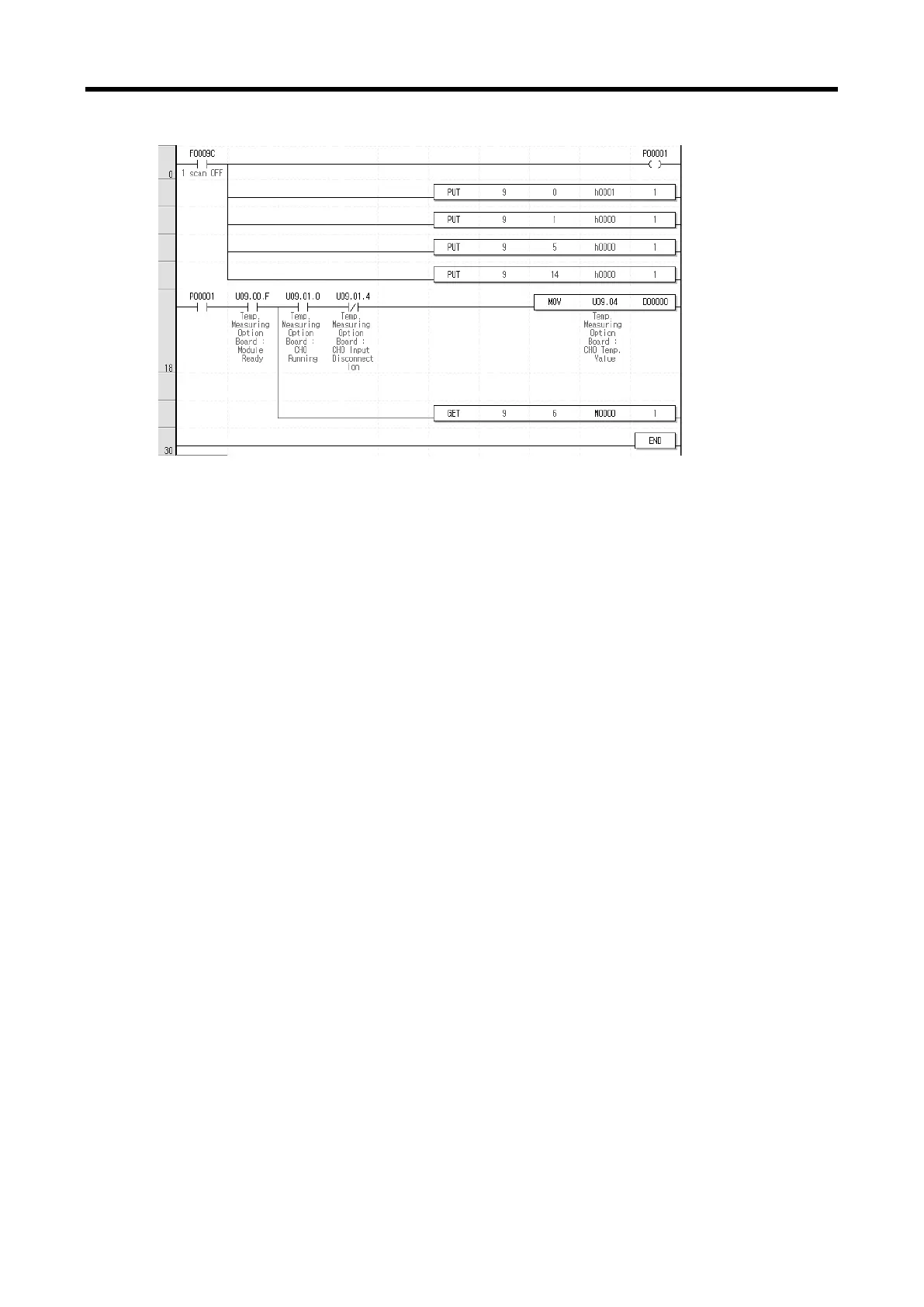

(2) Program example using PUT/GET command

CH Enable

Sensor type (PT100)

Temperature unit (Celsius)

Count average value setting

Moving channel 0 temp.

value to D0

Moving channel 0 disconnection

information to M0

11 - 26
