Chapter 12 Thermocouple Input Option Module (XBO-TC02A)

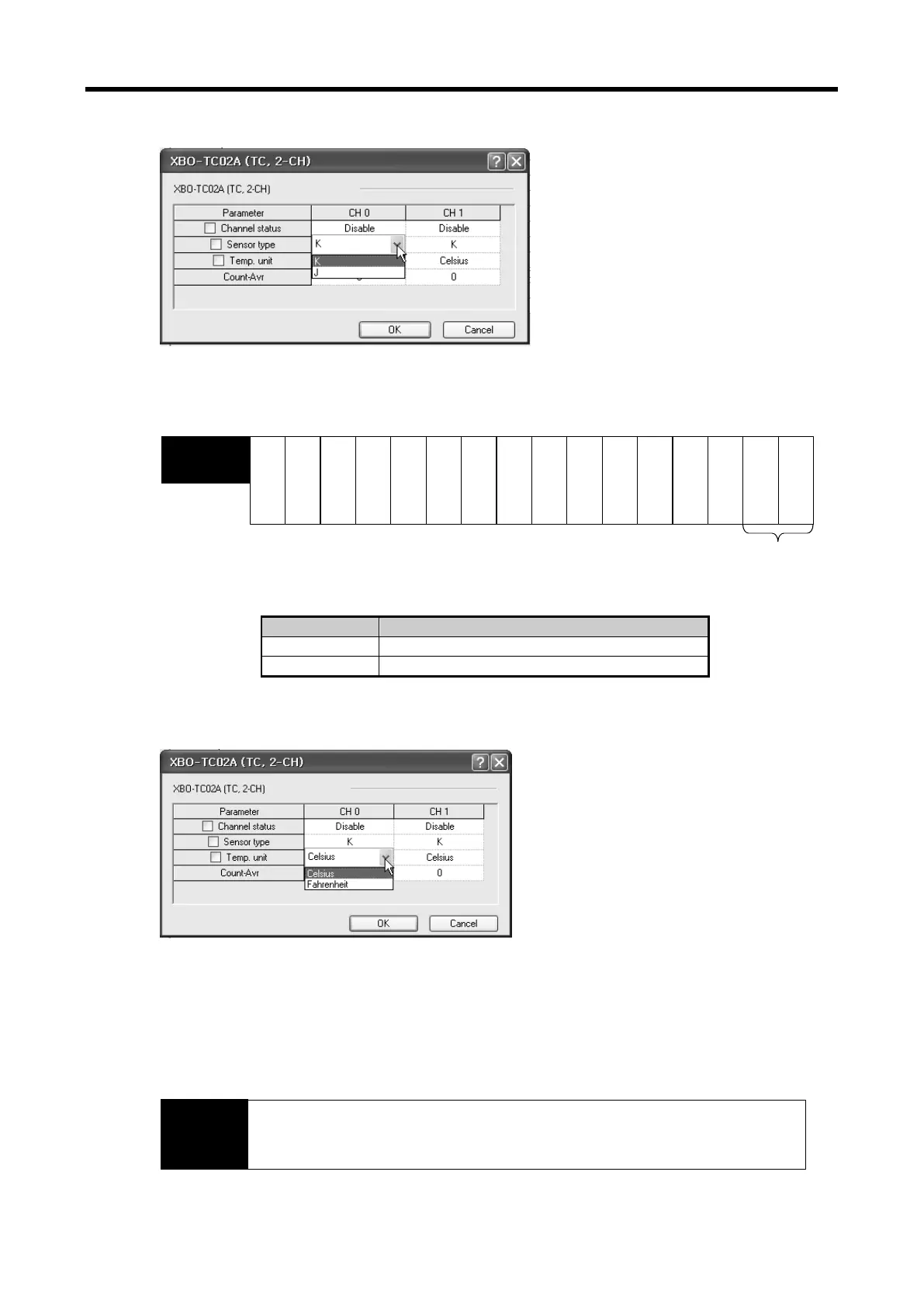

(3) Temp. unit setting area (Address 5)
(a) Temp. unit (Celsius/ Fahrenheit) of thermocouple input module can be set per channel.
(b) In case of PUT instruction, Temp. unit setting area is as follows.
bit15
bit14
bit13
bit12
bit11
bit10
bit9
bit8
bit7
bit6
bit5
bit4
bit3
bit2
bit1
bit0
-
-
CH1
CH0-
-
-
-
-
-
Address 5
Temp unit setting
0: Celsius
1: Fahrenheit
-
-
-
-
-
-
Bit
Description
0
Celsius
1
Fahrenheit
(c) Vales set in B2 ~ B15 are ignored.
(d) This area shows the same results with temp. unit setting in I/O parameter setting window.
(4) Average value setting area (Address 14~15)
(a) Average value can be set per channel.
(b) If count average value is set as 0, averaging process is not applied and sampling-processed
thermocouple input value is outputted.
(c) In case of using PUT instruction, average value setting address is as follows.
bit15
bit14 bit13 bit12
bit11 bit10
bit9 bit8
bit7 bit6
bit5
bit4 bit3 bit2
bit1 bit0
CH# average value setting
Count-average: 2 ~ 64000[times]
Address 14
Address 15
12 - 29
