XGB Analog edition manual
15 - 44
Max. MV: 4000
- Max. MV is set as 4000. If MV is 4000, XBF-DV04A outputs 10V.
Min. MV: 0
- Min. MV is set as 0. If MV is 0, XBF-DV04A outputs 0V.
PWM junction, PWM output cycle
- It is not necessary to set it because the example does not use PWM output.
Hysteresis setting: 10
(2) A/D input module parameter setting

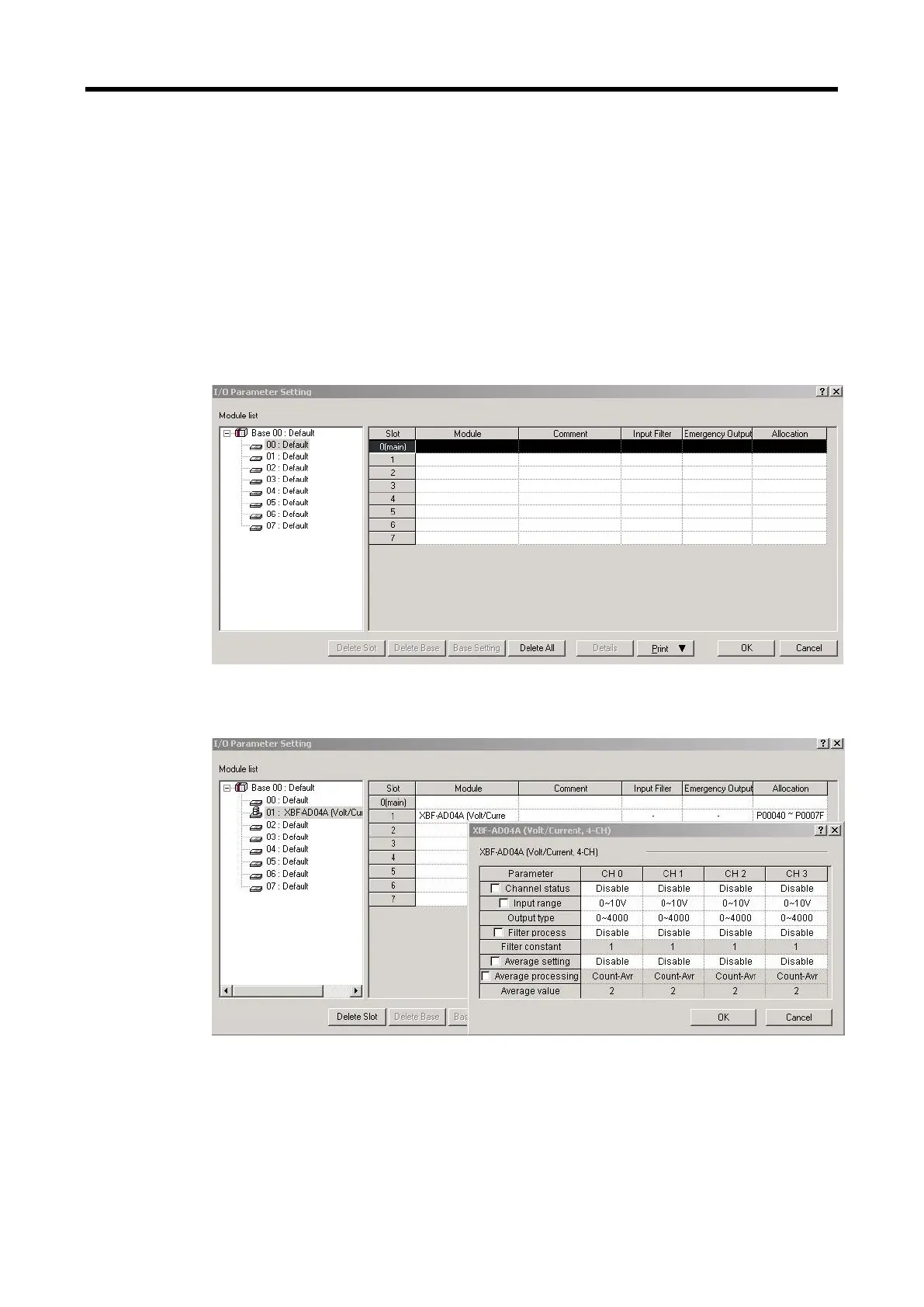

(a) If double-clicking Parameter – I/O parameter, it opens up the setting window as illustrated
in figure 15.19.
[ Figure 15.19 I/O parameter setting window ]
(b) If selecting A/D module for a slot in A/D input module, it opens up the setting window as
illustrated in Figure 15.20.
[ Figure 15.20 A/D input mode setting window ]
(c) Check A/D Module operation parameter and click OK. The example is set as follows.
RUN CH: CH0 RUN
- The example receives the water level sensor input as CH0.
Input scope: 0 ~ 10V
- Set XBF-AD04A input scope as 0 ~ 10V so that it should be identical with the output
To Next Page
