Chapter 6.
Panel Editor
6-70

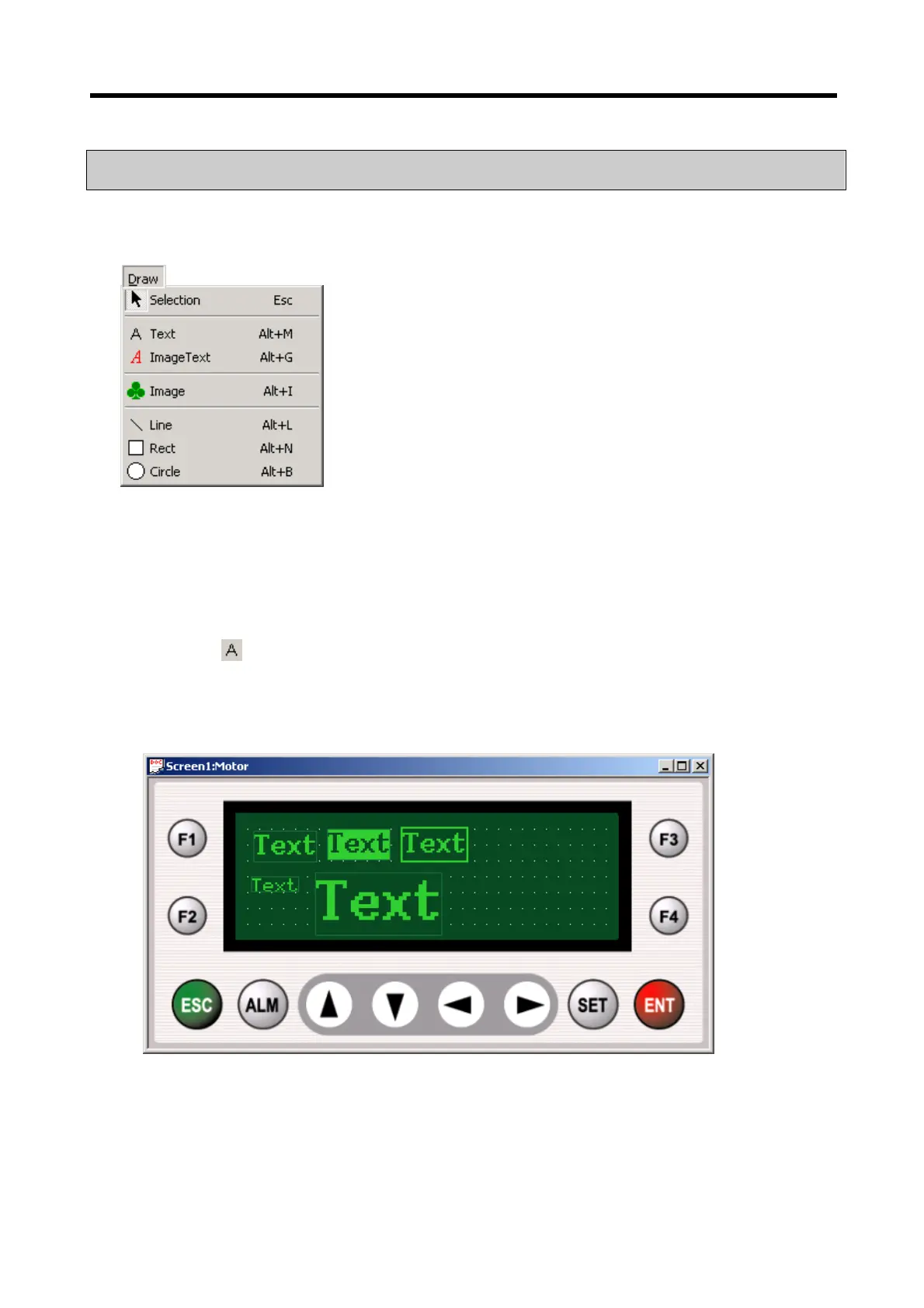

6.10 Draw Menu
Shows the various functions of the Draw menu.
6.10.1 Se
lection
It is a tag Selection mode, which is used to edit or select the tags r
egistered on the screen.
6.10.2 Text (
)
Displays the Text input by the user.
108
