Chapter 8. Communication Driver
8-36

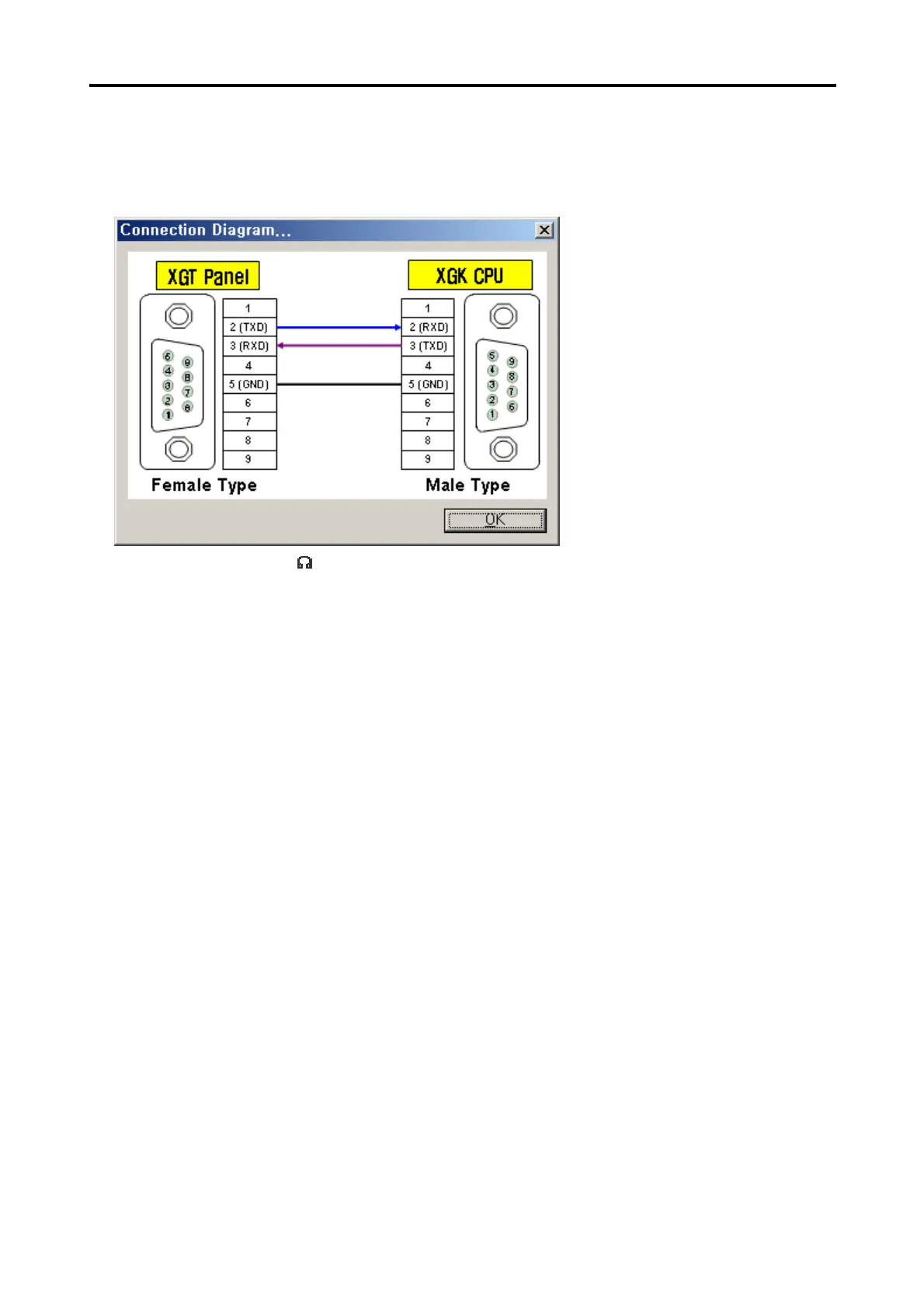

8.17.3 Connection Diagram
If the Loader Protocol is used, the Connection Diagram of XGT Panel and XGK series is as shown below.
Use the Connection Diagram button of PLC Type Change on the Panel Editor to check the Connection Diagram below.
* Use terminal resistor 120
