Chapter 6. Panel Editor
6-75
3) Line
(1) Type: Specifies a type of line. (One of solid line, dotted line, dashed line)
(2) Thickness: Specifies thickness of line. (From 1 to 5 dots)
6.10.6 Rect ( )
Draws a rectangle of various shapes.

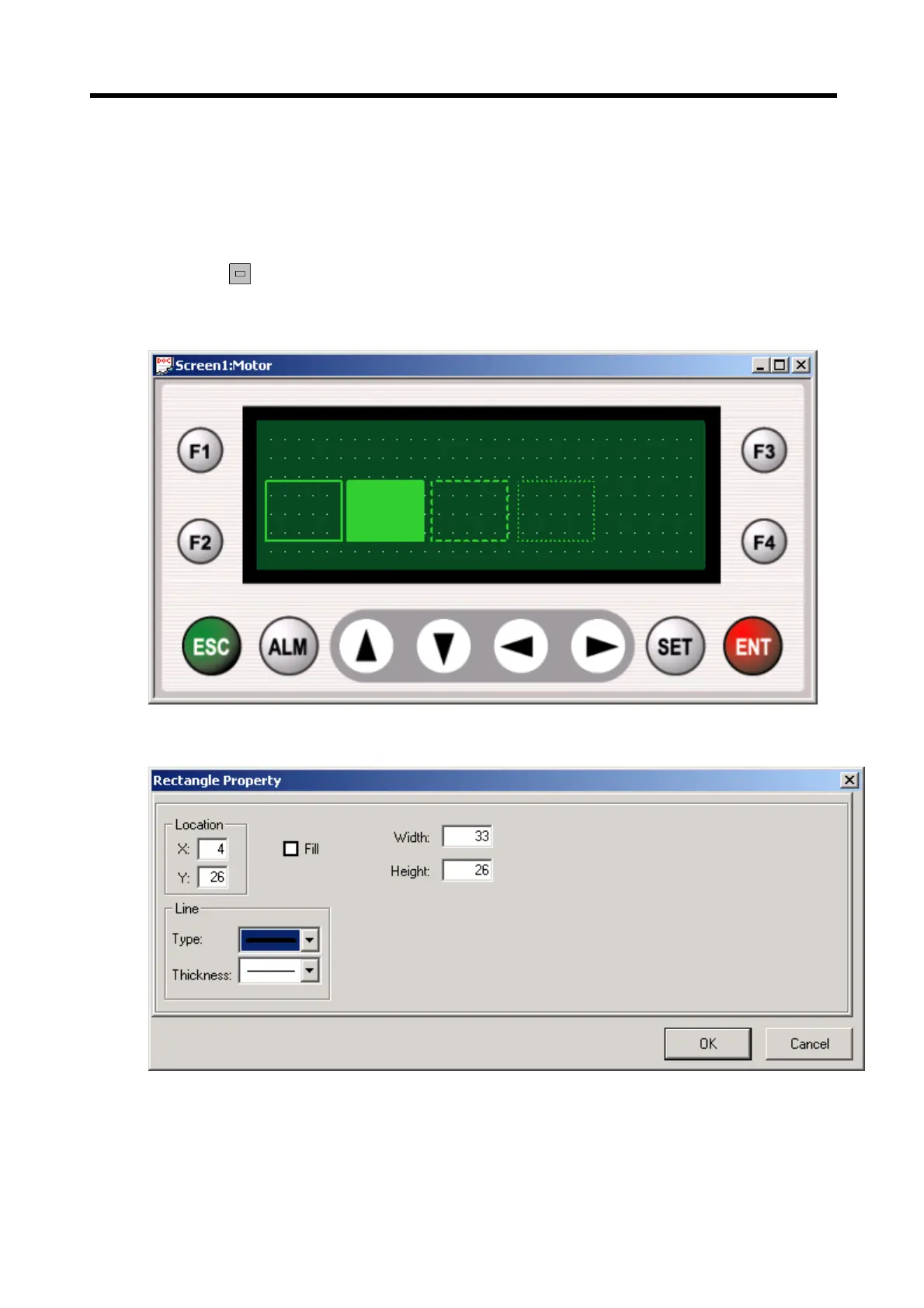

In order to specify the property of the Rectangle Tag, double-click to display the Property setting window as shown below.
1) Location
(1) Indicates tag’s location (X-axis:0~191, Y-axis:0~63)
(2) Thereupon, the X,Y coordinates point at the left upper edge of the tag.
To Next Page
