Chapter 6. Panel Editor
6-66
Data Value Block No. Display Cycle
Time Taken per Round
( (Display Cycle) × (No. of Images) )
91 ~ 95 2
40 ㎳
40ms × 4 = 160ms
96 or more 1
20 ㎳
20ms × 4 = 80ms
6.9.9 Move Tag ( )
Varies a position of tag according to the values of devices.

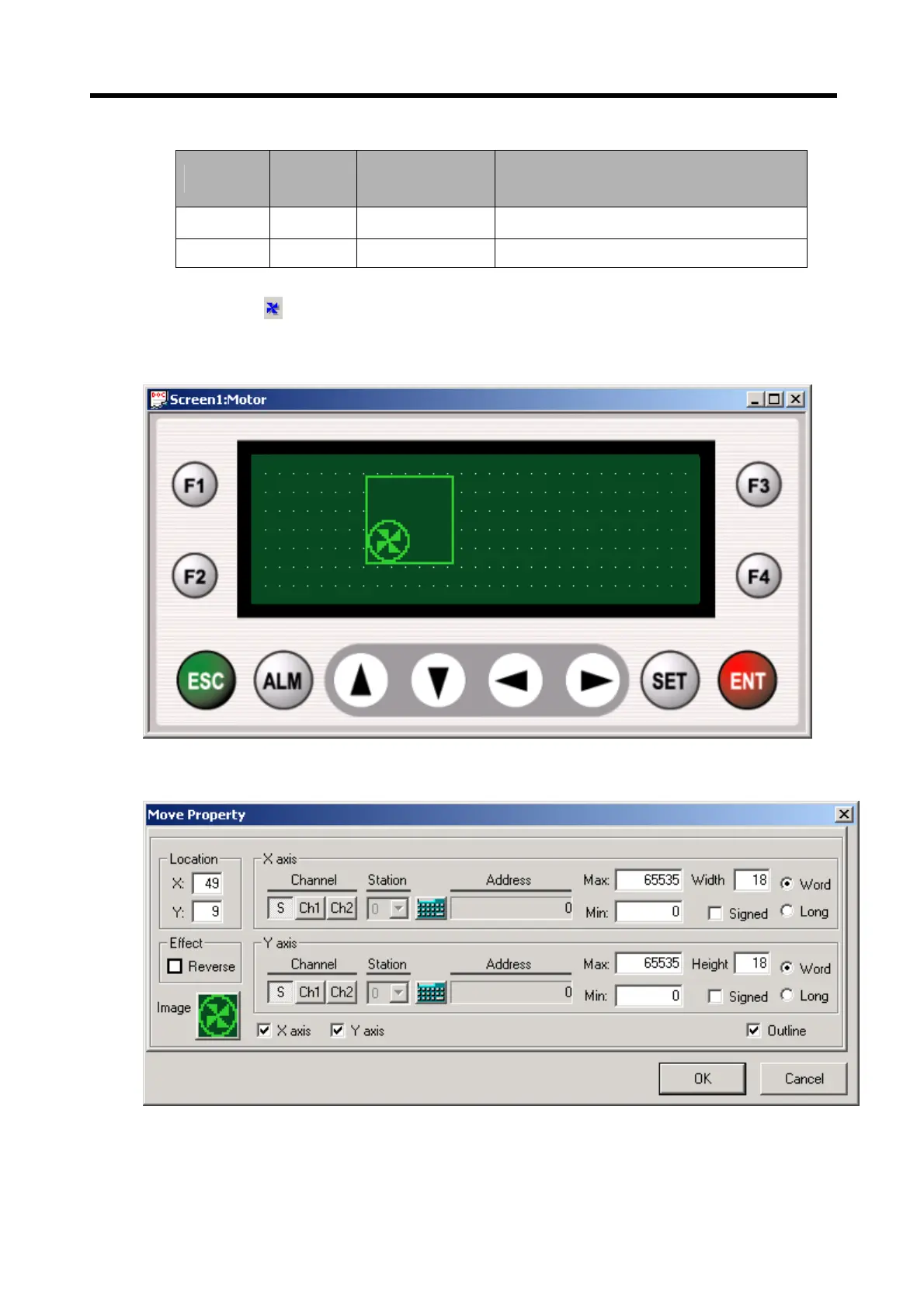

In order to specify the property of the Tag, double-click to display the Property setting window as shown below.
The Location, Effect, Addresses of X-axis Y-axis, Max., Min., Width and Height in the Move Property should be set identical
to ‘6.9.5 Bar Graph Tag’.
