Chapter 4. System Configurations
4-14
Select and set communication parameter.
If setting is completed, XGT Panel is ready to communication with the connected controller

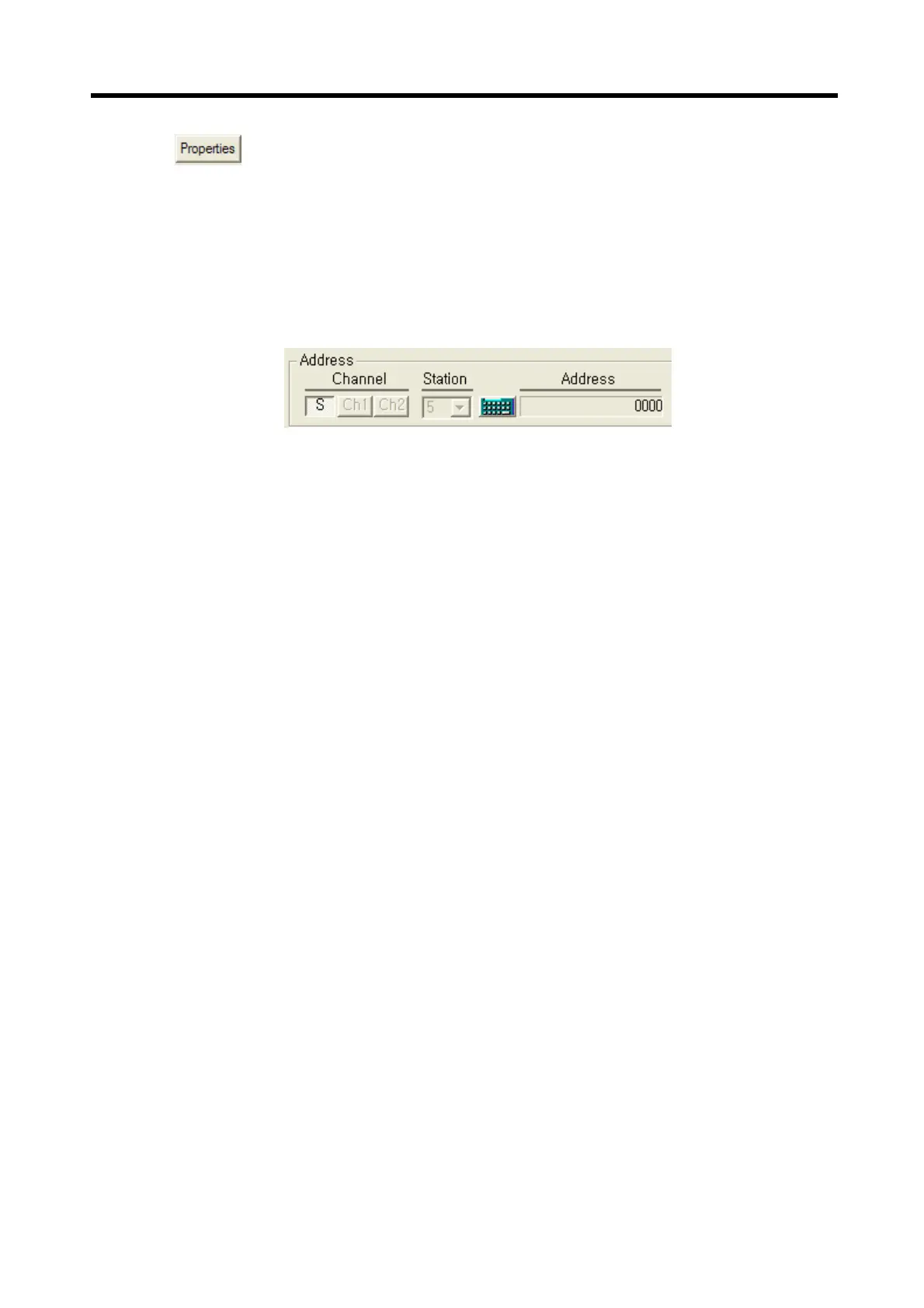

In the slave configuration, the controller reads/writes the devices of Ch1 and Ch2. So Only S area (inner device of XGT Panel)
can be set like figure below.
XGT Panel can read/write inner device of XGT Panel like above figure.
