Installation
BPD17 pH / Redox Monitor
Operating Guide
- 13 -
Enclosure
The BPD17 as standard is designed to be mounted on a wall or surface via the two holes
located in the rear half of the enclosure. Alternatively, it can be mounted to a panel or a
pipe using optional mounting kits.

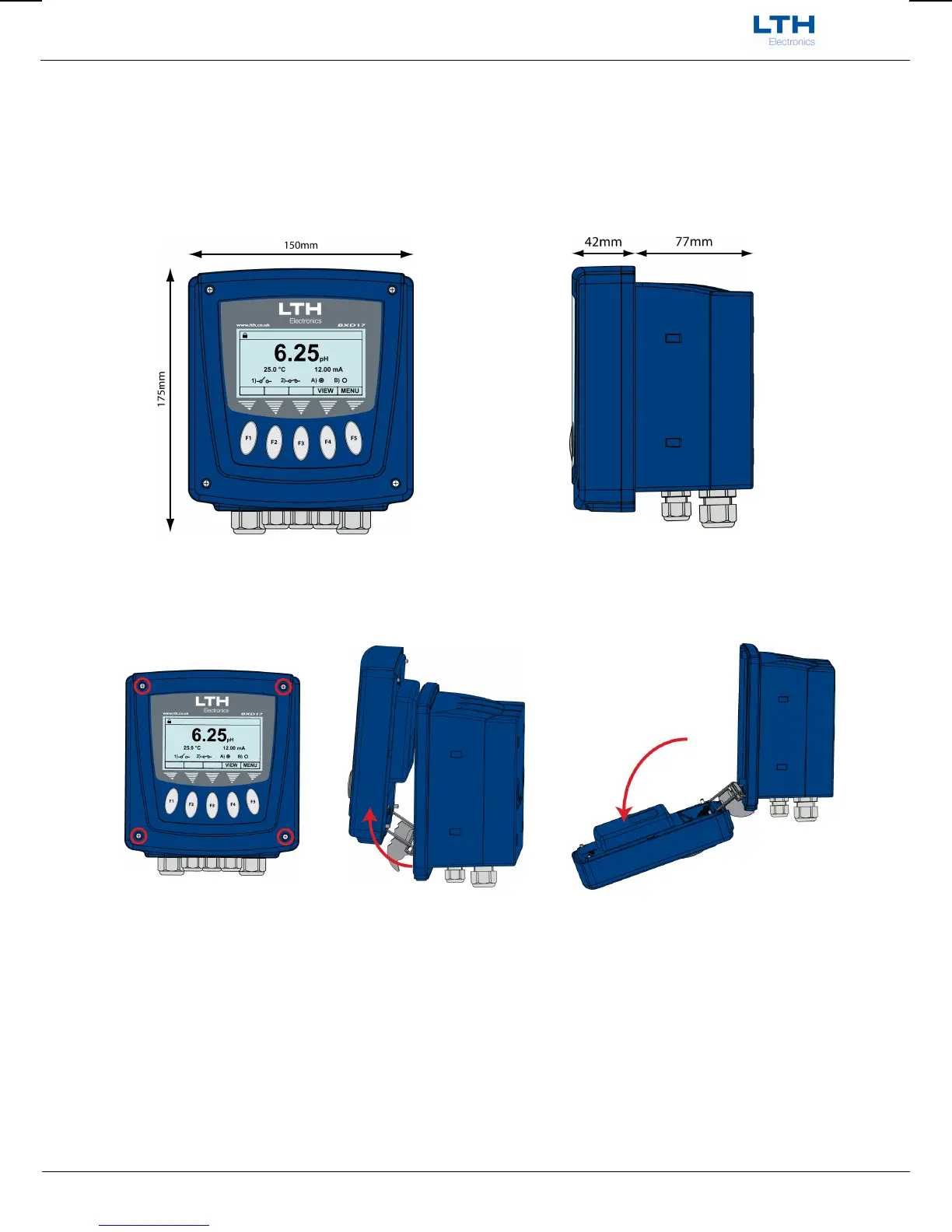

BPD17 Overall Dimensions
The enclosure should be opened as following.
Undo four captive
screws as
highlighted
Lift front up and
forward
Rotate front down until hinge
locks under the rear and
front is supported
To close repeat process in reverse, folding the hinge into the rear.
