LTH Electronics BPD17 - Surface-Mounting

Installation
- 14 -
BPD17 pH / Redox Monitor
Operating Guide

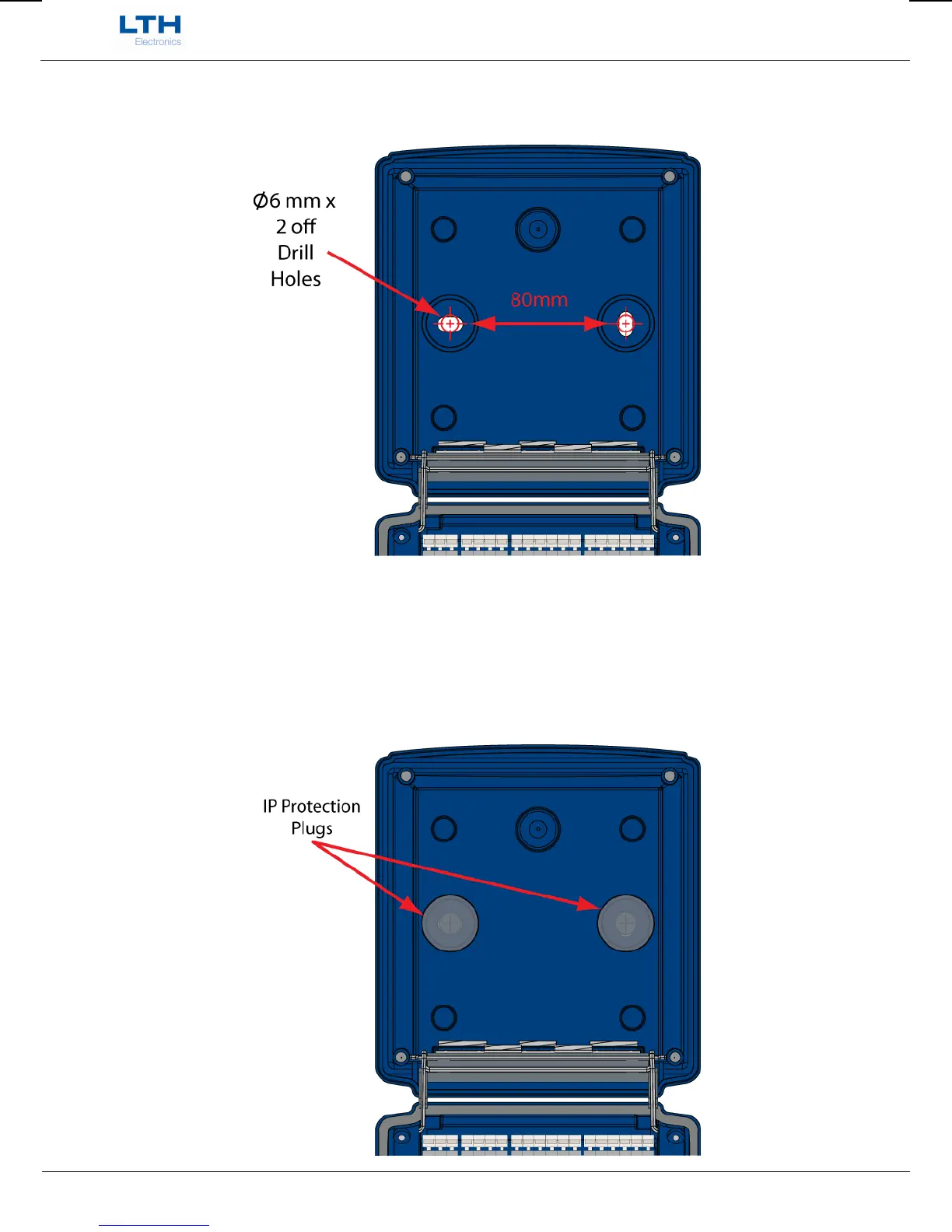

Surface-Mounting
 LTH recommends using No. 10 x 1¼ inch round head screws or similar for mounting.
 Care must be taken when fitting the instrument on uneven walls or surfaces.
 Once installed make sure accompanying IP protection plugs are installed over the
mounting holes on the inside rear of the enclosure.

