Installation
- 16 -
BPD17 pH / Redox Monitor
Operating Guide

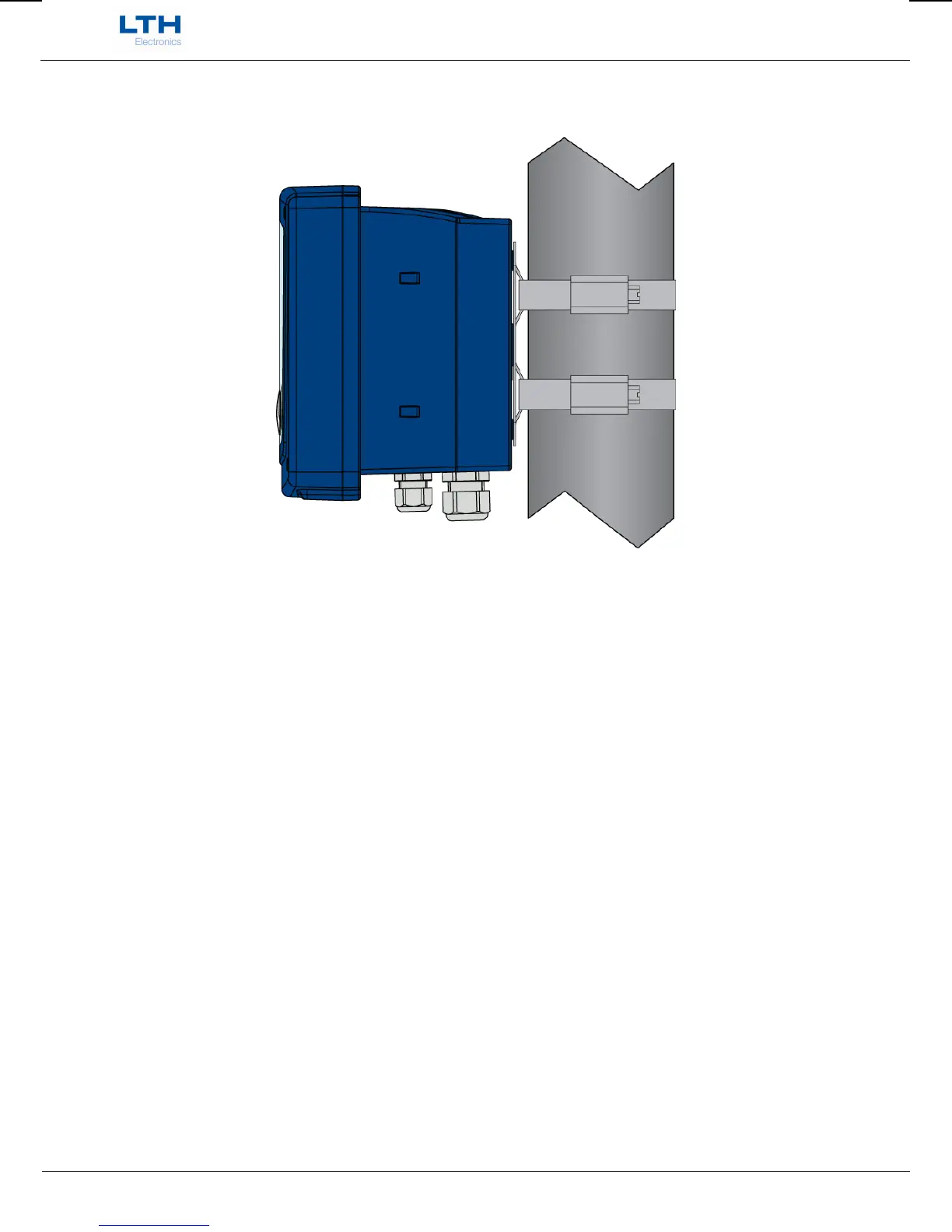

Pipe-Mounting
 Fits pipe 50-100mm
 Uses Kit Part Number 6024.
 Attach the Mounting Plate to the rear of the case with the supplied screws.
 Pass supplied mounting straps through plate loops and tighten round pipe as required.
 Fit the accompanying IP protection plugs over the internal mounting holes on the inside
rear of the enclosure.
