Installation
BPD17 pH / Redox Monitor
Operating Guide
- 19 -

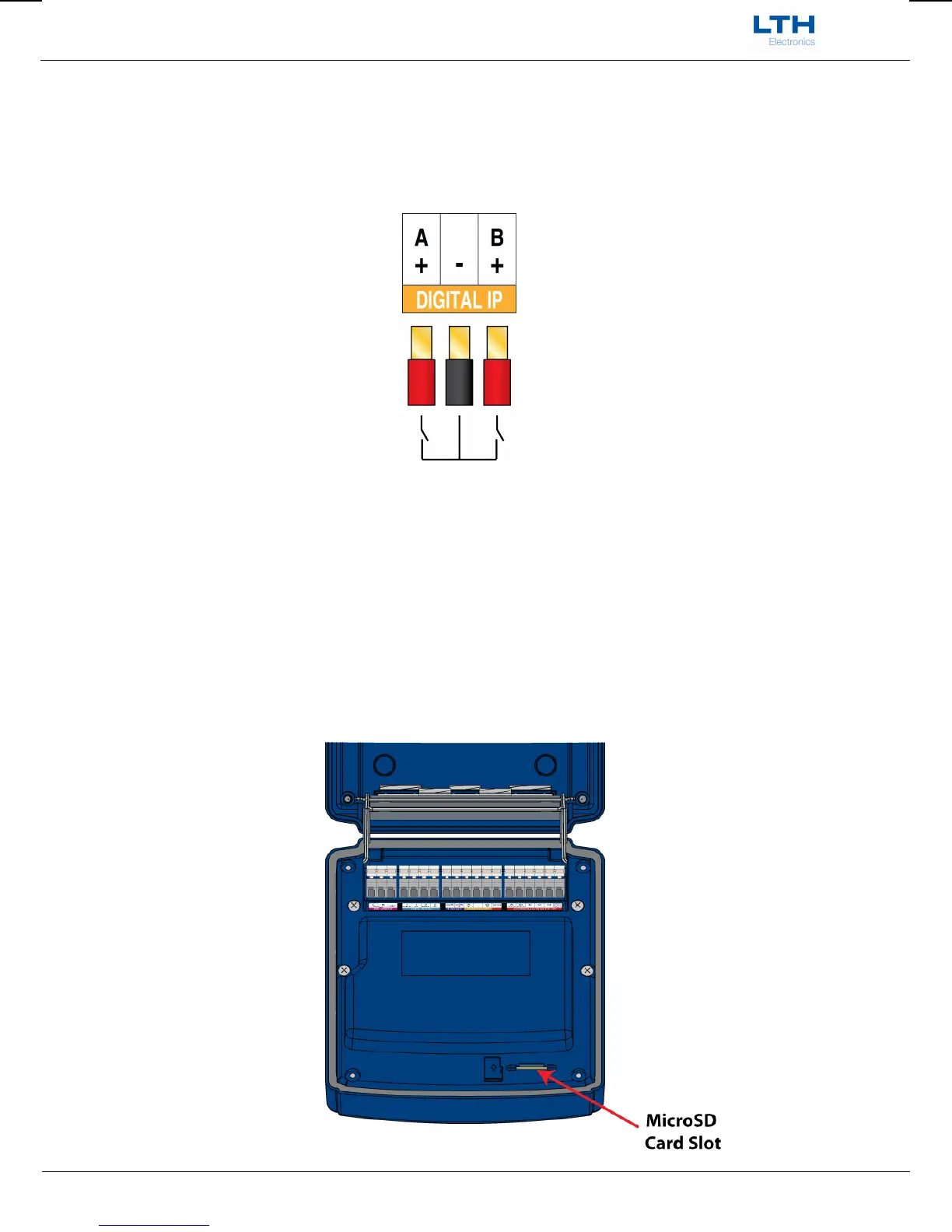

Digital Inputs
The BPD17 features 2 digital inputs, which can be used to initiate a user configurable
instrument operation by use of a volt free link, switch or relay. The instrument can be
configured to initiate the appropriate action when the contact either closes or opens.
Current Output Connection Detail.
MicroSD Card Interface
The BPD17 features a MicroSD card interface which is compatible with SD, SDHC and SDXC
formatted cards (N.B. SDXC cards may need formatted to Fat32 before use). Its primary
function is to enable the upgrading of the instruments operating software
To insert the card, ensure that the side notch is on the right-hand side of the card, and then
just push it all the way in to the socket. To remove the card push it in then release and the
card should then come out of the socket. N.B. It may be required to pull the card out of the
last bit of the socket.
