Installation
BPD17 pH / Redox Monitor
Operating Guide
- 17 -

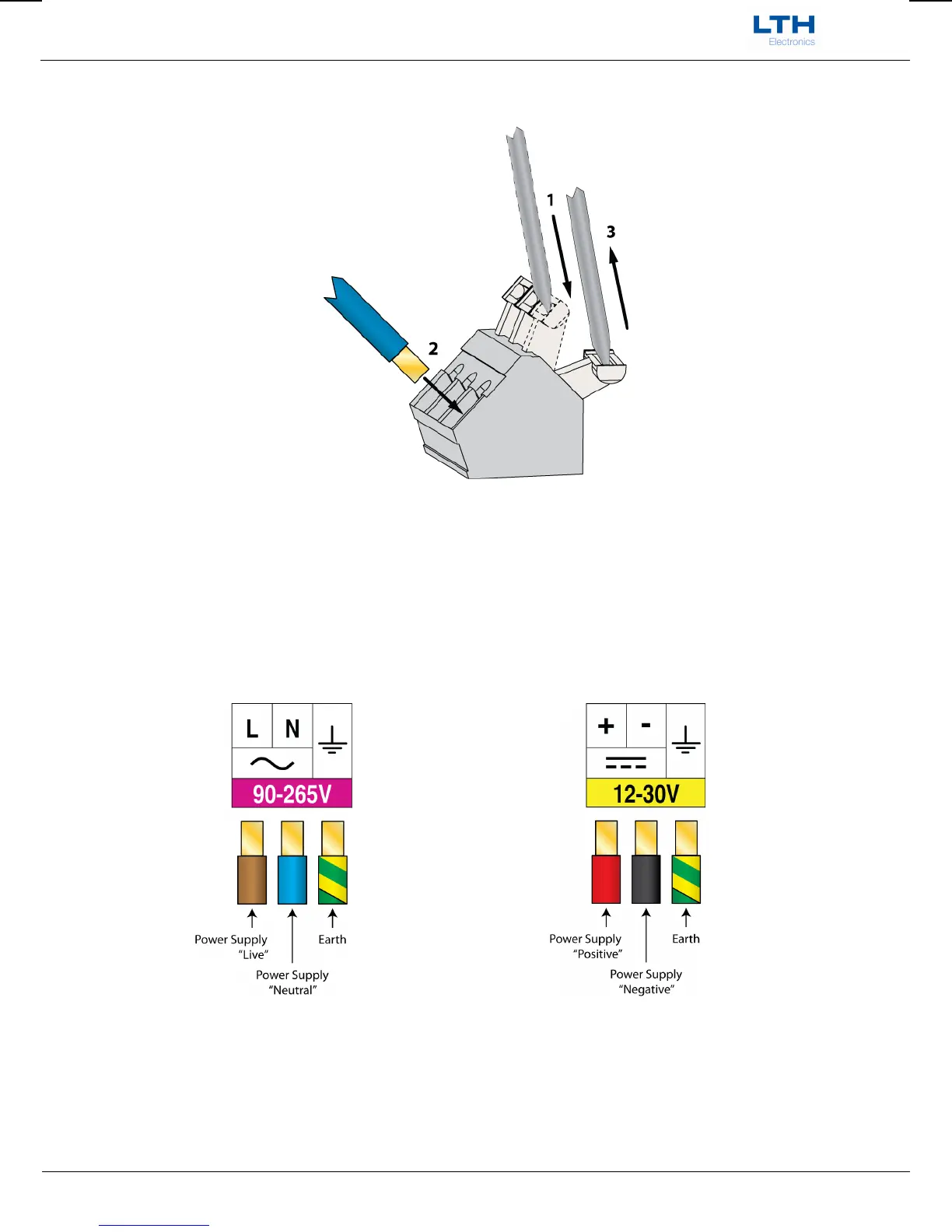

Terminal Operation
Whilst pushing terminal lever down using a 3.5mm Slotted Screwdriver, insert wire into
opening and release level to retain.
Supply Voltage Connections
Depending upon version purchased BPD17 can be powered from either 90-265V AC or 12-
30V DC supply voltage. Refer to the label adjacent to the power supply terminals for
the input voltage limits. Exceeding these limits may damage the instrument.
90-265V AC
Power Connections
12-30V DC
Power Connections
The power supply should be taken from an isolated spur and fused to a maximum of 3
Amps. The incoming Earth connection must be connected to the Earth terminal.
