0/4-20mA Output
BPD17 pH / Redox Monitor
Operating Guide
- 53 -
0/4-20mA Output
The BPD17 is fitted with a single current output. The current output menu contains all of the necessary
setup functions to configure the current output sources. The instrument will display the status of the
current output on the front screen, where --.--mA indicates that the output is disabled.

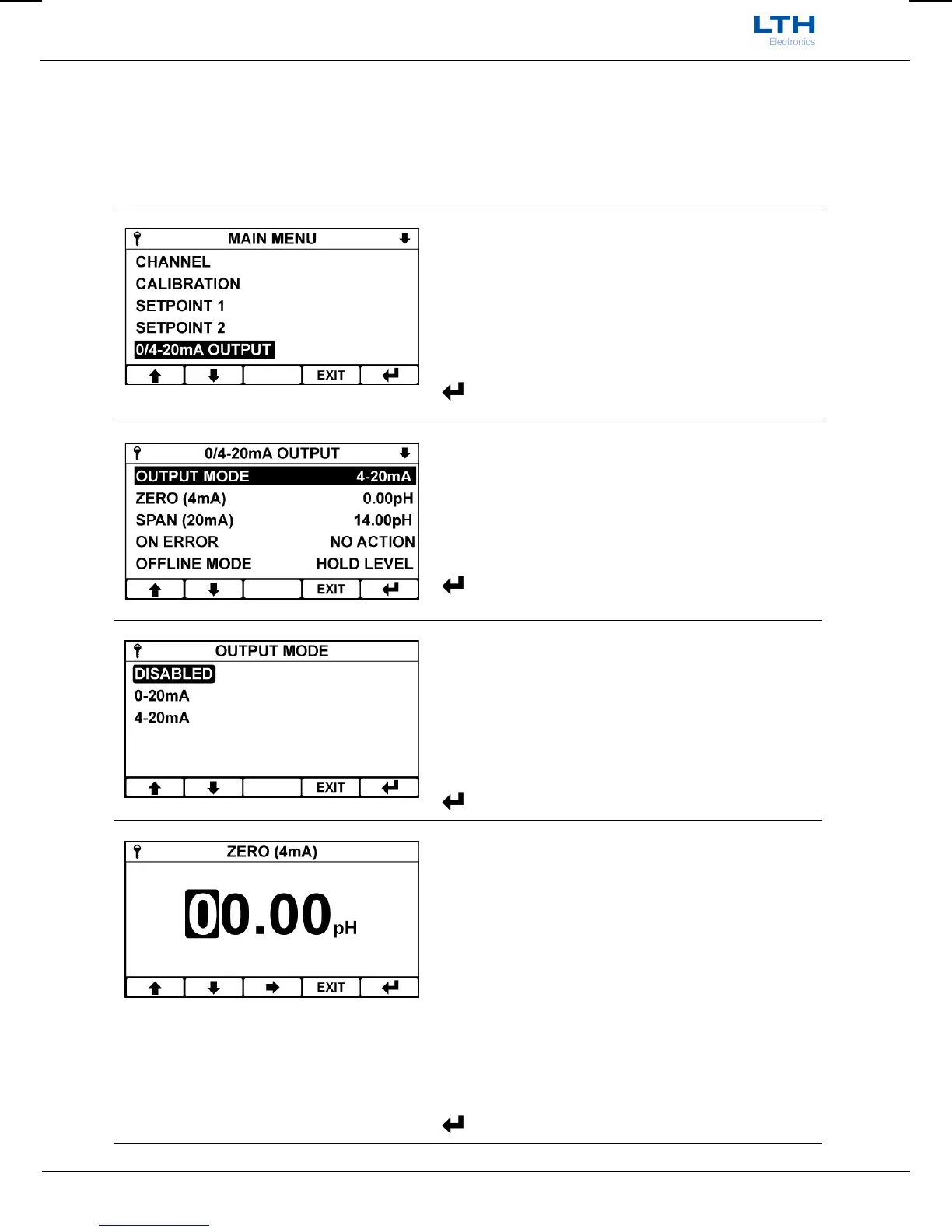

Main Menu
From the front screen press the menu button to show
the main menu options and select 4-20mA Output.
/ – Select Option
EXIT
– Return to Front Screen
– Enter Option
0/4-20mA Output Menu
Select the 0/4-20mA function you wish to configure.
/ – Select Option
EXIT
– Return to Main Menu
– Enter Option
Output Mode
Enable the current output by selecting its output
mode, either 0 – 20mA or 4 – 20mA.
/ – Select Option
EXIT
– Cancel
– Save Selection
Zero (0mA) / Zero (4mA)
Enter the desired sensor value to be represented by
0mA or 4mA (depends on current output mode). An
inverse relationship can be achieved by setting the
Zero greater than the Span.
If the sensor reading falls outside this or the span
value an error will be activated.
/ – Increase / Decrease Digit
– Select Next Digit
EXIT
– Cancel
– Save Value
