Installation
BPD17 pH / Redox Monitor
Operating Guide
- 23 -

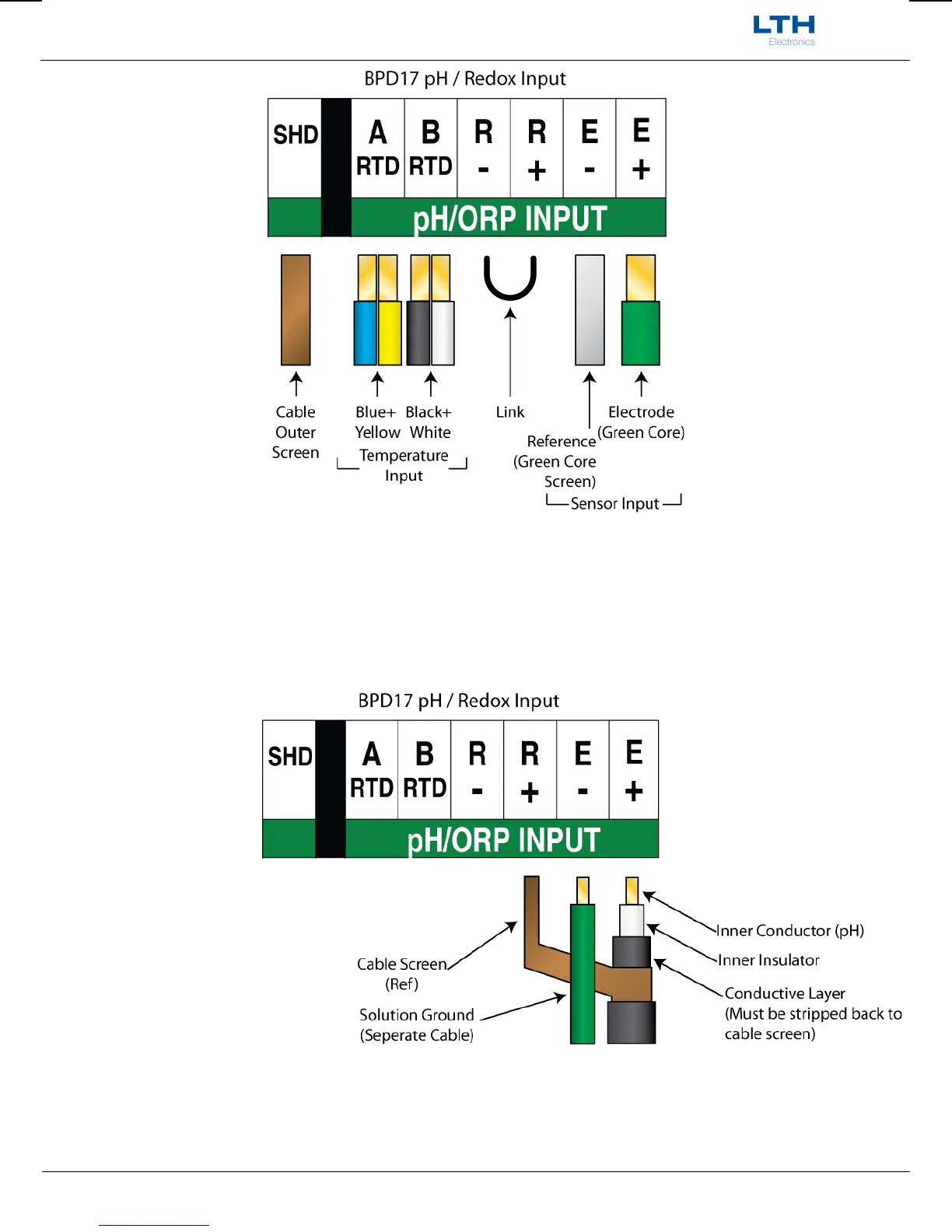

pH / Redox 54E Extension Cable Connection Details
The pH / Redox input of the BPD17 also provides a differential input method of wiring the pH
electrode. This provides better electrical noise immunity and allows the sensor to operate in solutions
where flowing electrical currents may cause measurement problems.
pH / Redox LN10 Coax Cable Connection Details with Separate “Solution Ground” Connection
