0/4-20mA Output
BPD17 pH / Redox Monitor
Operating Guide
- 55 -

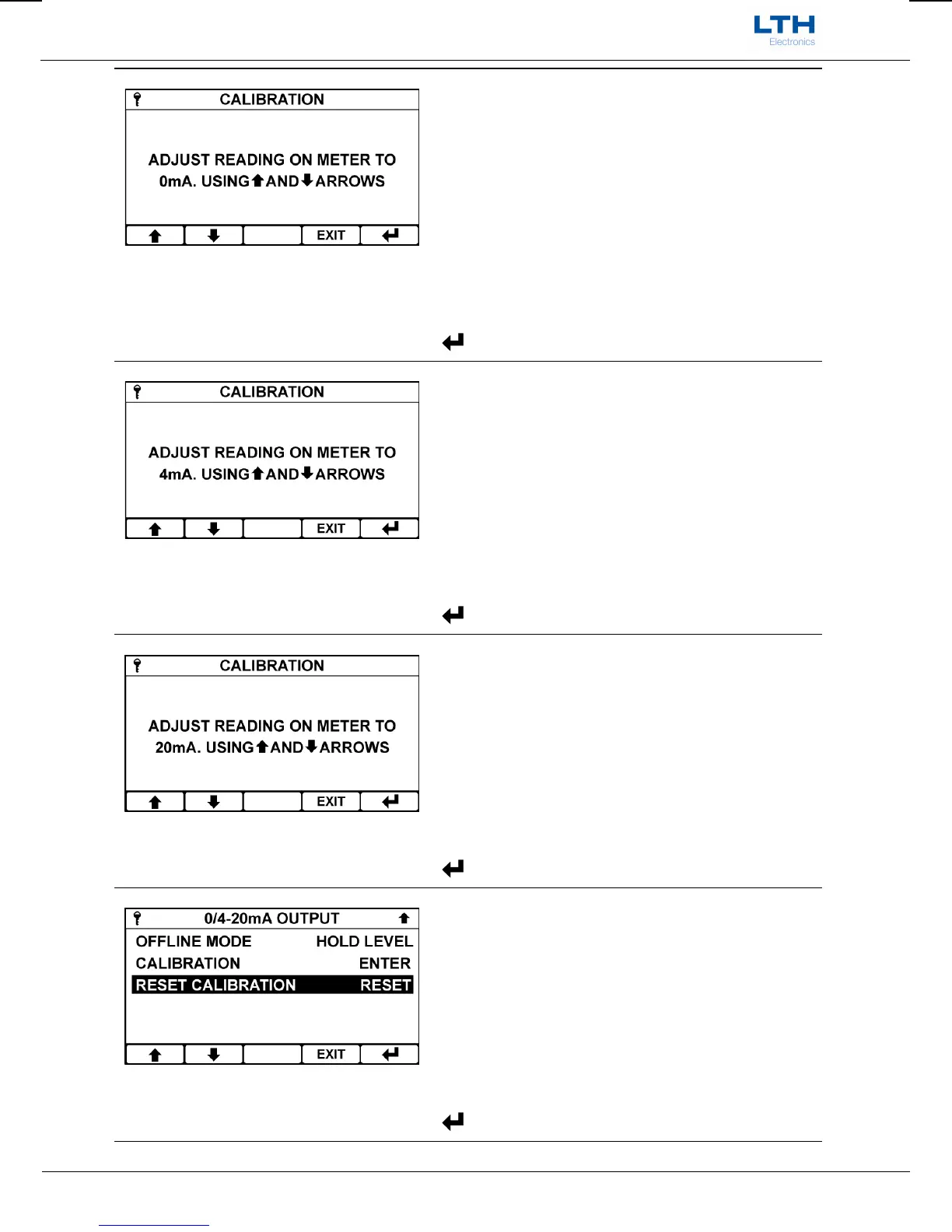

Adjust 0mA Output
Using the  and  buttons adjust the current output
until it reads the desired value on your current meter.
Please keep in mind that the current output cannot
go below 0mA.
Only used when the mode is set to 0-20mA
/ – Adjust Output
EXIT
– Cancel
– Save Adjustment
Adjust 4mA Output
Using the  and  buttons adjust the current output
until it reads the desired value on your current meter.
Only used when the mode is set to 4-20mA
/ – Adjust Output
EXIT
– Cancel
– Save Adjustment
Adjust 20mA Output
Using the  and  buttons adjust the current output
until it reads the desired value on your current meter.
/ – Adjust Output
EXIT
– Cancel
– Save Adjustment
Reset Calibration
Used to reset any user calibration applied to the 0/4-
20mA Output
/ – Select Option
EXIT
– Return to Calibration
– Enter Option
