14 - 2 Troubleshooting Vector Systems Issue 5 June 2000
Troubleshooting Tables
Organization The tables in this section are organized alphabetically by Alarm LED,
then grouped according to the status of the alarm, Major (MAJ) or Minor
(MIN).
Table Reference Use the reference below to locate the Alarm LED and corresponding
table.
Vector Display
Reference

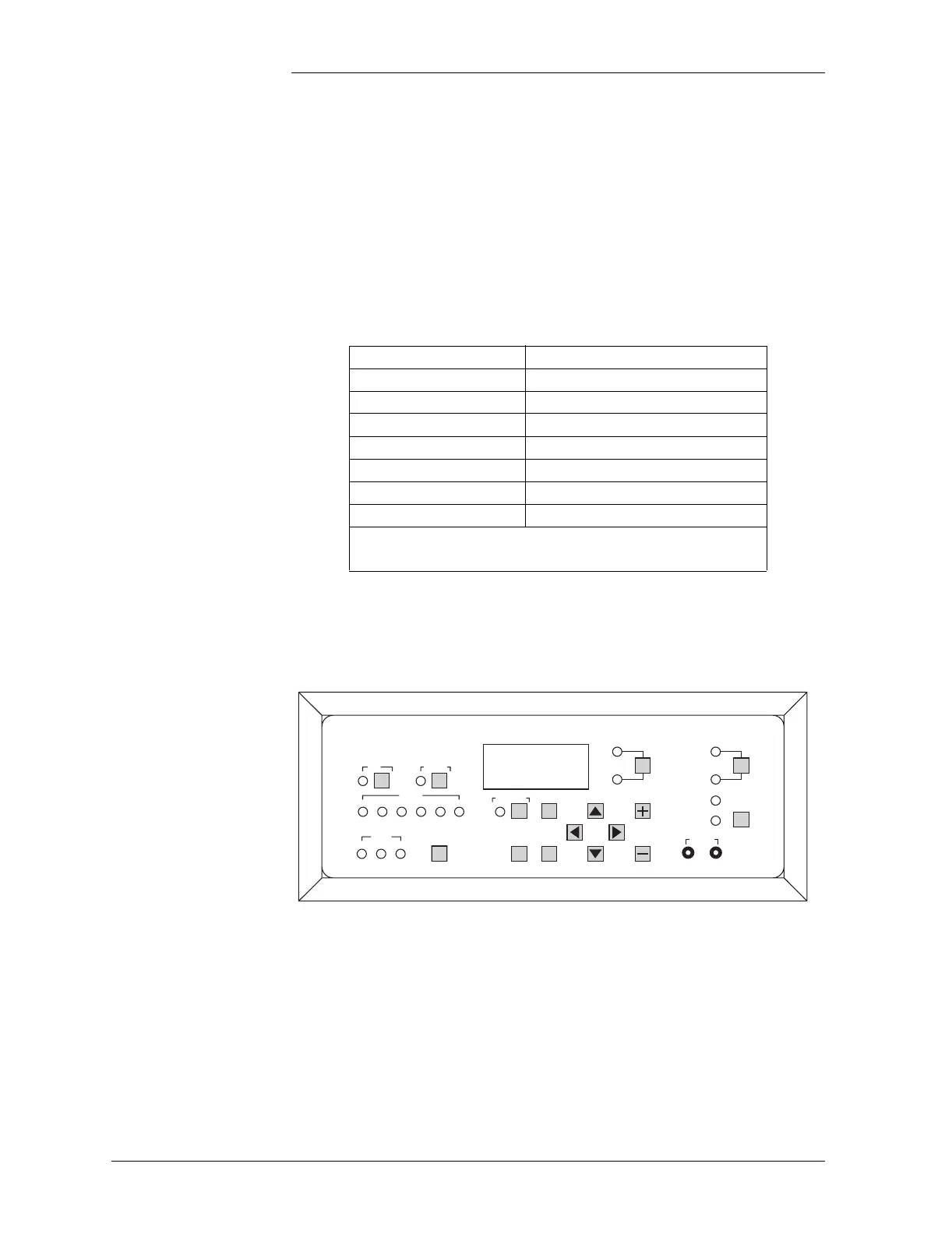

The Vector front display is shown below for quick reference while using
the troubleshooting tables.
Alarm LED Table
AC 14-A, AC Alarms
BATT 14-B, Battery Alarms
BD 14-F, Miscellaneous Alarms
CTRL 14-C, Controller Alarms
DIST 14-D, Distribution Alarms
RECT 14-E, Rectifier Related Alarms
No LED* 14-F, Miscellaneous Alarms
*If an alarm condition exists, but no alarm LED is lit,
refer to Table 14-F.
PLANT
VO LTAGE
BATTERY
TEST
THERMAL
COMPENSATION
FLOAT
BOOST
VOLTS
AMPS
ESCAPE
ENTER
CONFIGURE
DEFAULT
BD
MAJ
BATT
MIN
DIST
NORM
RECT
ALARMS
STATUS
CTRL
VIEW ACTIVE
ALARMS
AC
ACO
LAMP
TEST
+
–
GALAXY VECTOR CONTROLLER
