Lucent Technologies Galaxy Power System 4812

Issue 5 June 2000 DC Distribution Panels 7 - 3

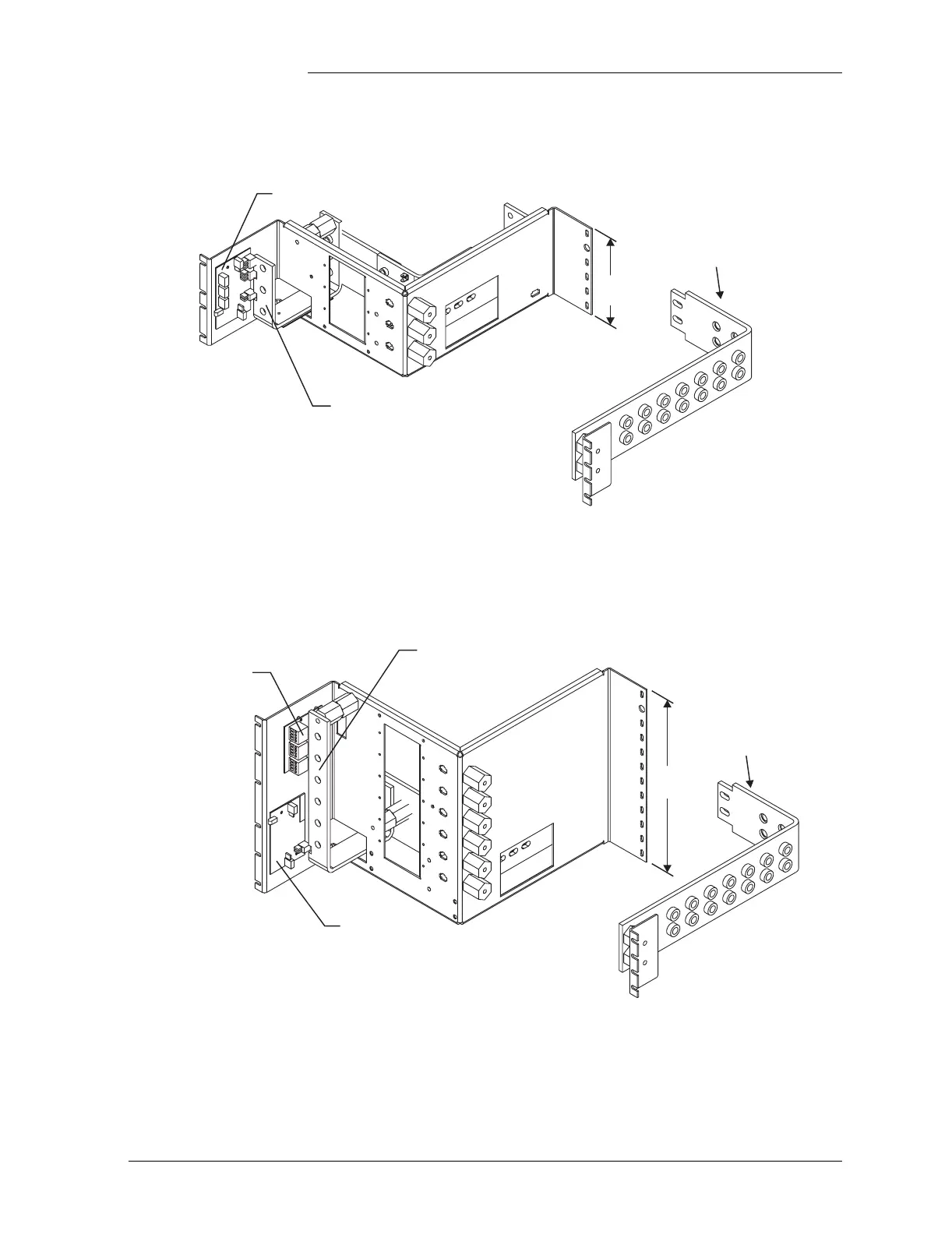

Figure 7-3: H569-436 G42 (ED83143-30 G2/3)

DC Distribution Panel

Alarm/Terminal Card

Three Positions for Large

U.S. Circuit Breakers

Connects to

Charge Return Bus

6" REF

(152mm)

Figure 7-4: H569-436 G43 (ED83143-30 G1/4)

DC Distribution Panel

Alarm Card

Terminal Card

Six Positions for Large

U.S. Circuit Breakers

Connects to

Charge Return Bus

12" REF

(305mm)
