Lucent Technologies SLC-2000 Access System Central Office Terminal - Page 141

363-208-011
Cabling, Wiring, and Assembly
Issue 4 February 1997 3-83

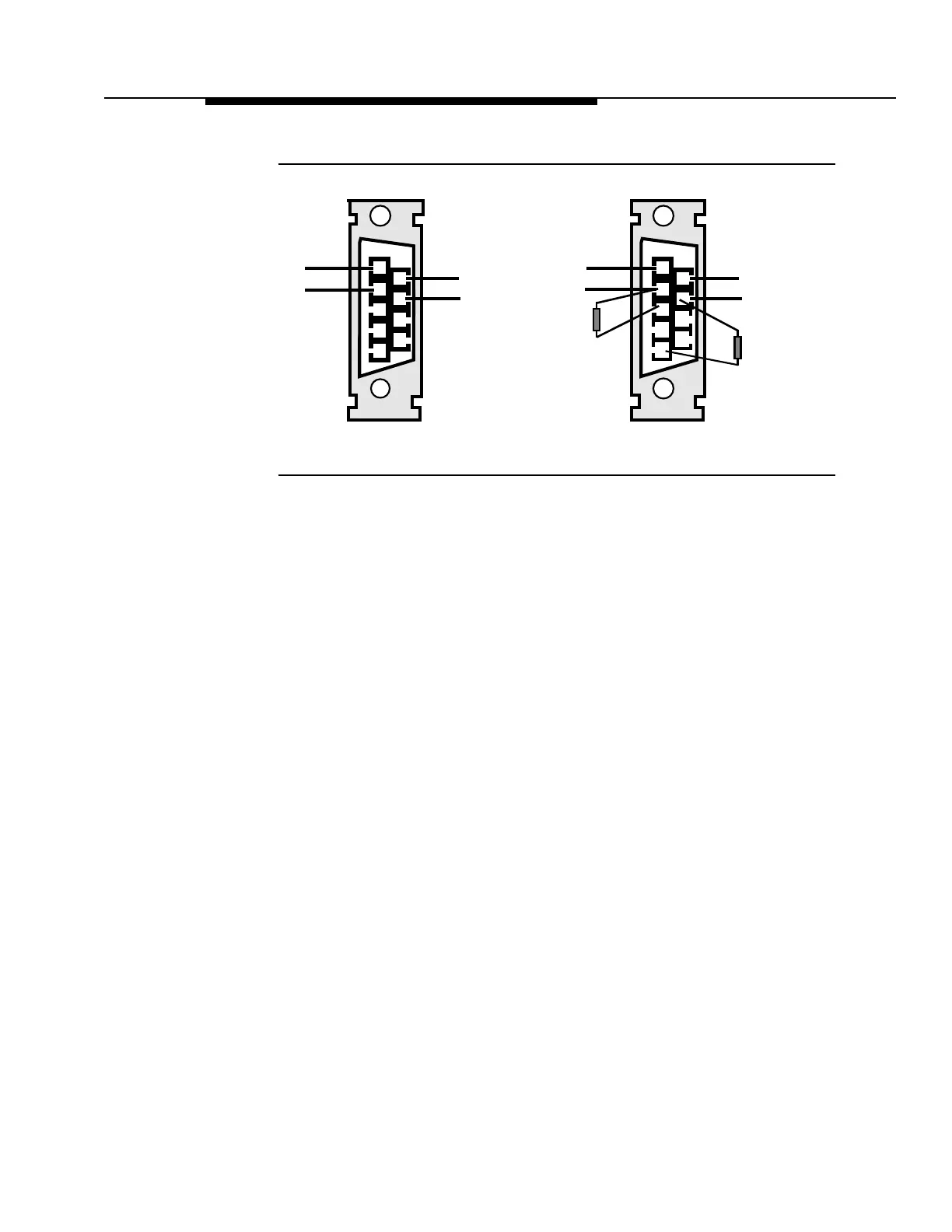

Figure 3-56. TBOS Connections
BL-W
O-W
W-BL
W-O
1
6
5
9
P53 (ACORN)
RTBOSP
XTBOSP
RTBOSN
XTBOSN
BL-W
O-W
W-BL
W-O
1
6
5
9
P53 (GTP)
RTBOSP
XTBOSP
RTBOSN
XTBOSN
511 Ω
511 Ω
