Lucent Technologies SLC-2000 Access System Central Office Terminal User Manual

3-84 Issue 4 February 1997
363-208-011
Cabling, Wiring, and Assembly

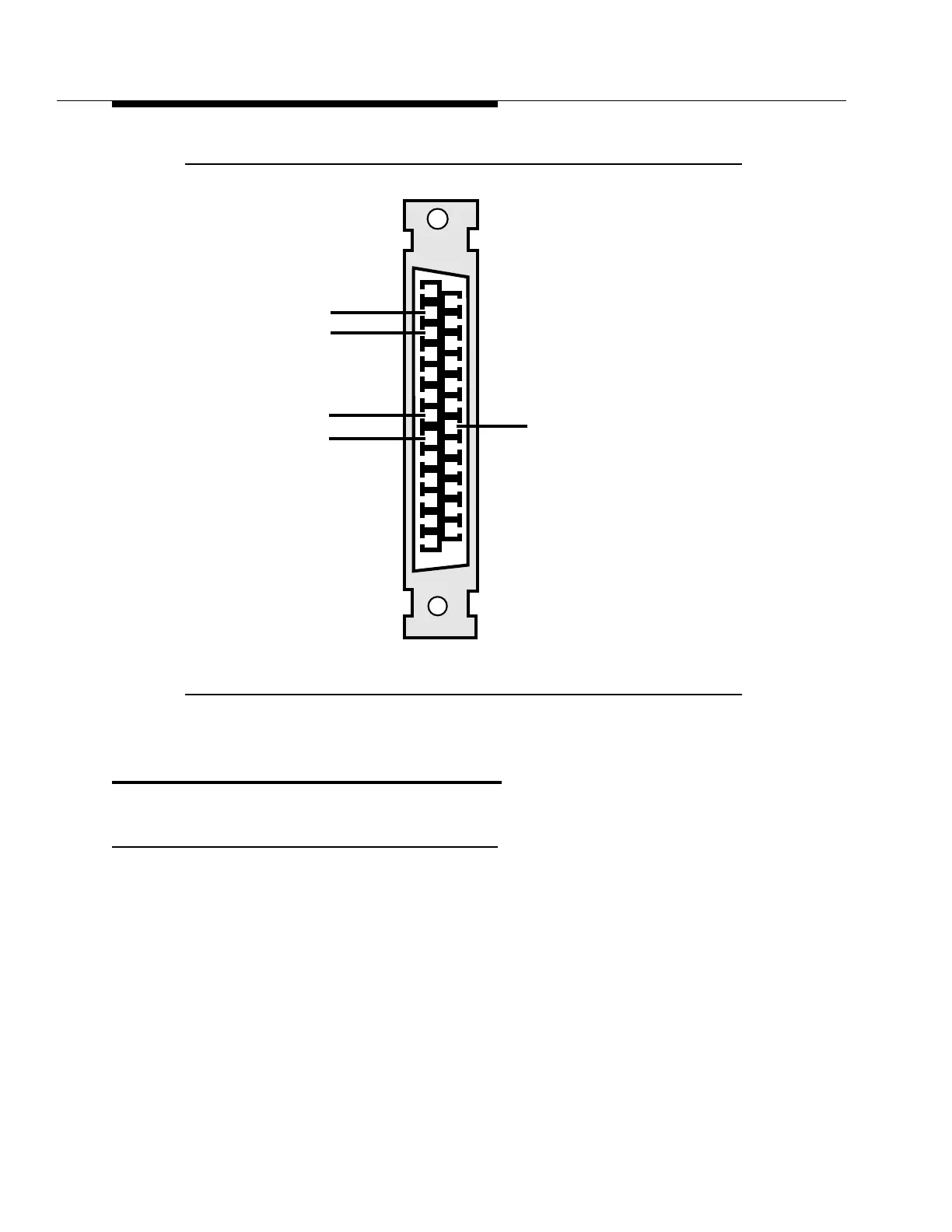

Figure 3-57. CIT/Modem RS232 Connections
ARM Shelf Fiber Optic Cables
General
Fiber jumpers must be single mode with ST

type connectors at the SLC -2000
OLIU end. The other end’s connector must match the connector of the vendor’s
fiber cross-connect panel.
Use care when routing the fiber cable in order not to pinch or severely bend the
cable especially when routing through the wire slots in the ARM shelf trough.
BL-W
W-BL
O-W
W-O
G-W
1
13
14
25
P182
Q4TDA
Q4RDA
GRD
Q4DCD
Q4DTR
