Lucent Technologies SLC-2000 Access System Central Office Terminal - Dimensions for Figure

363-208-011
Installation Procedures
Issue 4 February 1997 2-7

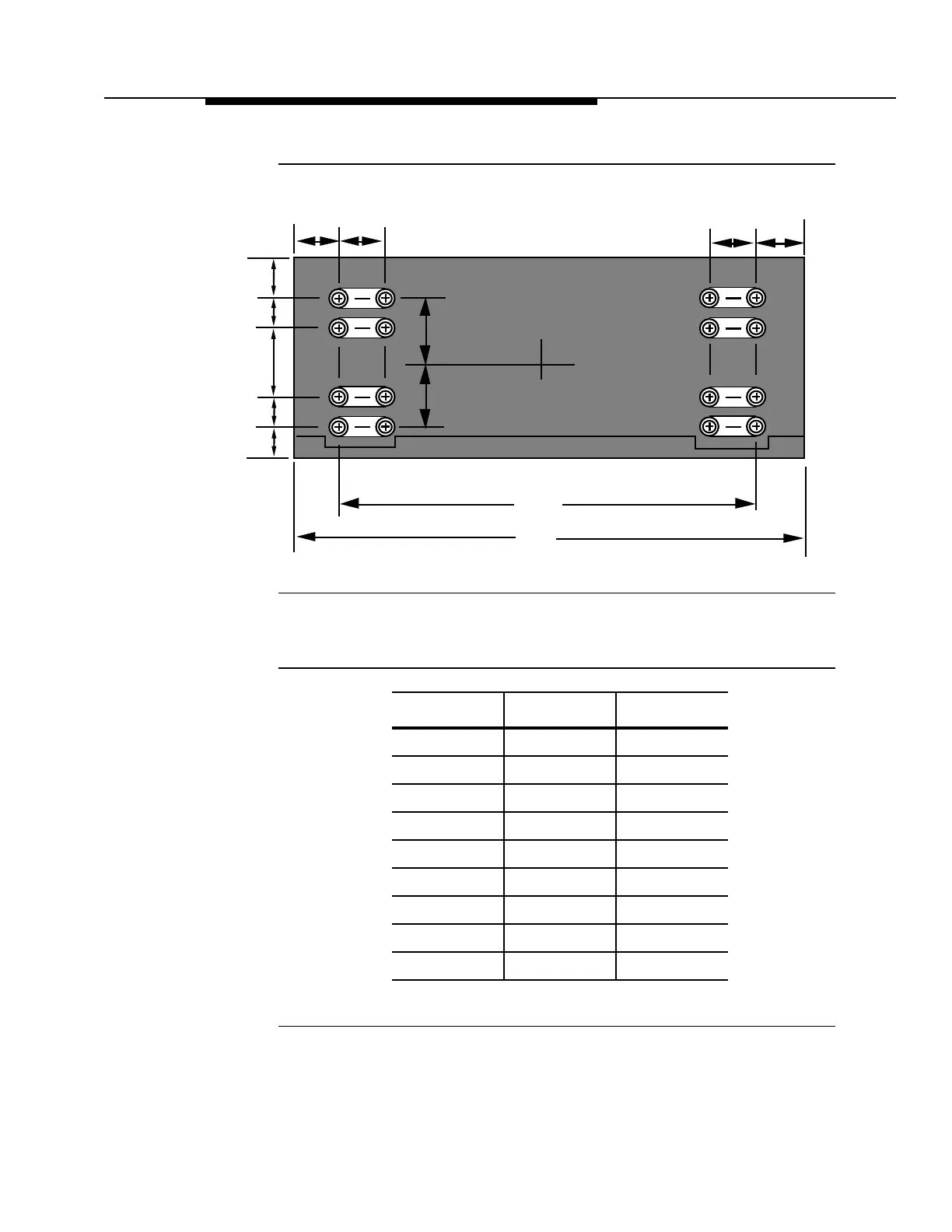

Figure 2-2. Floor Drilling
Table 2-1. Dimensions for Figure 2-2
Symbol English (in.) Metric (mm)
A 02.00 050.800
B 03.94 100.076
C 18.00 457.200
D 07.25 184.150
E 01.17 029.718
F 02.00 050.800
G 03.25 082.550
H 25.87 657.098
I 03.63 092.075
