Lucent Technologies SLC-2000 Access System Central Office Terminal User Manual

363-208-011
Applications
Issue 4 February 1997 A-5

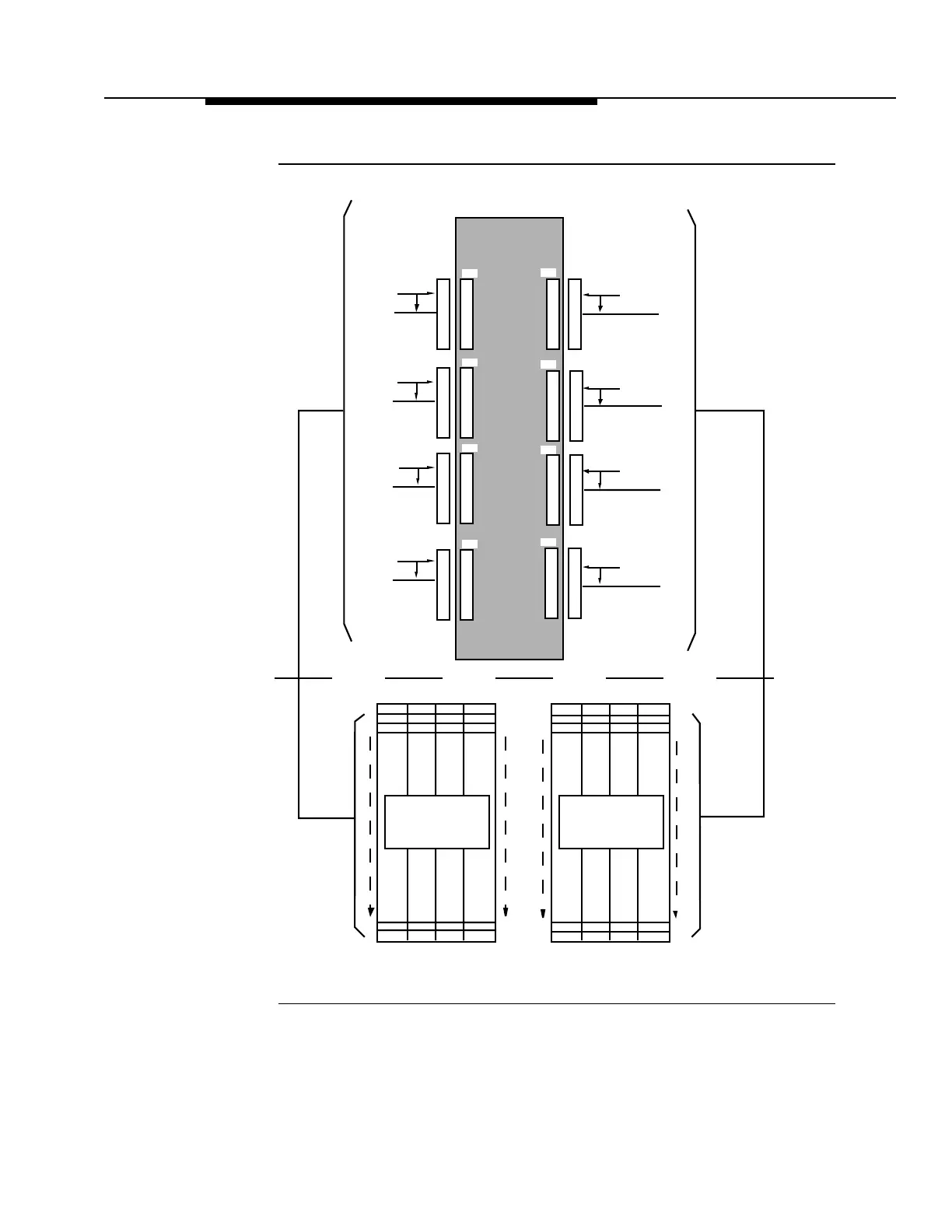

Figure A-2. MDS Assembly VF Cabling to VF Cross-connect Frame
Refer to Section 3
and
SD7C180-01 CAD 1
for details
M
D
S
A
S
S
E
M
B
L
Y
( )
Follow standard color
sequence for each cable
assembly
VF DF
89F1F - 100
type Blocks
1
5
9
4
8
12
93
96
T R T RT RT R
1
5
9
4
8
12
93 96
T R T RT RT R
VF DF
89F1F - 100
type Blocks
P/O CA ASSEM
ED7C723-37
Group 4, 5, or 6
P101
J101
CH 1 - 25
P102J102
CH 26 - 50
P103J103
CH 51 - 75
P104
J104
CH 76 - 96
Refer to Section 3
and
SD7C180-01 CAD 1
for details
Follow standard color
sequence for each cable
assembly
J201P201
P/O CA ASSEM
ED7C723-37
Group 7, 8, or 9
CH 1 - 25
J202
P202
CH 26 - 50
J203
P203
CH 51 - 75
J204P204
CH 76 - 96
Cross-Connect to
Switching Facilities
per Table A-1
P/O CA ASSEM
ED7C723-37
Group 4, 5, or 6
P/O CA ASSEM
ED7C723-37
Group 4, 5, or 6
P/O CA ASSEM
ED7C723-37
Group 4, 5, or 6
P/O CA ASSEM
ED7C723-37
Group 7, 8, or 9
P/O CA ASSEM
ED7C723-37
Group 7, 8, or 9
P/O CA ASSEM
ED7C723-37
Group 7, 8, or 9
Cross-Connect to
Switching Facilities
per Table A-1
100 Pair
Cable
100 Pair
Cable
100 Pair
Cable
100 Pair
Cable
blue
binder
orange
binder
green
binder
brown
binder
blue
binder
orange
binder
green
binder
brown
binder
