Lucent Technologies SLC-2000 Access System Central Office Terminal User Manual

363-208-011
Applications
Issue 4 February 1997 A-11
Optical Fiber Interconnections
All lightguide interconnect cables should be brought out to the LGX

lightguide
cross connect panel or other vendor's customer cross connect point. Appropriate
designations should be added at this frame to identify the function from the SLC -
2000 end.
NOTE:
The minimum bending radius for fiber jumper cables is two inches (four
inches diameter).
SONET Interface (ARM Shelf OLIU)
Up to two OLIUs designated Main and Protection (or Main 1, Main 2) can be
provided at the COT Bay. Fiber pairs (transmit and receive), equipped with ST

connectors, are connected at the OLIU faceplate connectors designated IN and
OUT. Cross connections at the LGX are made to the optical line system to the far-
end SLC -2000 RT.

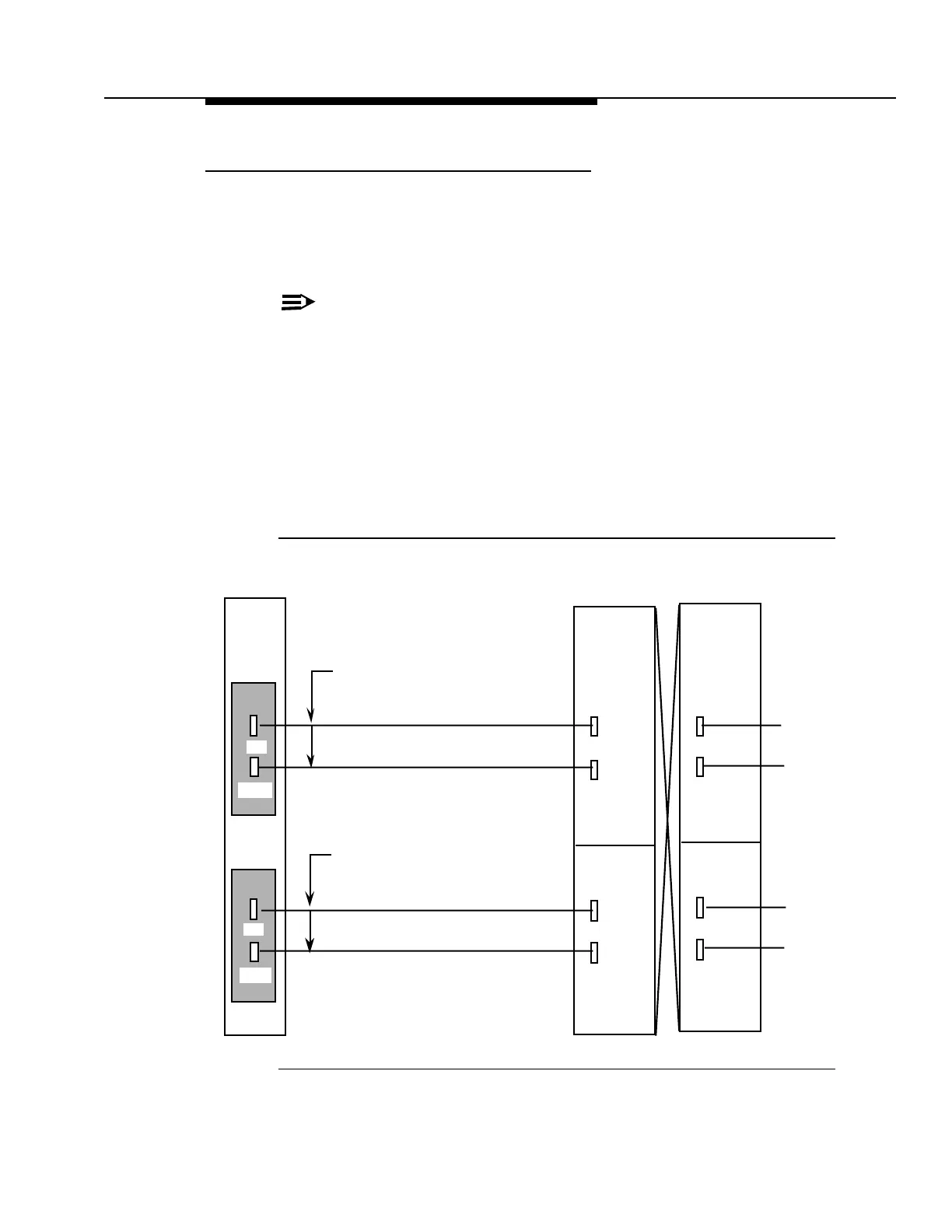

Figure A-5. LTG Cabling OLIU 0, 1
ARM
IN
OUT
OLIU
MAIN
PROT
FS1E-A-( ) OR FS1E-E-( ) Lightguide
Interconn Cable
IN
OUT
FS1E-A-( ) OR FS1E-E-( ) Lightguide
Interconn Cable
SLC -2000 COT
OLIU
OUT
MAIN
PROTECT
IN
LDS
LDS
OUT
IN
LGX
RCV
MAIN
PROTECT
TR
LDS
LDS
RCV
TR
To
Outside
Plant
Fiber
System
