Lucent Technologies SLC-2000 Access System Central Office Terminal User Manual

A-18 Issue 4 February 1997
363-208-011
Applications

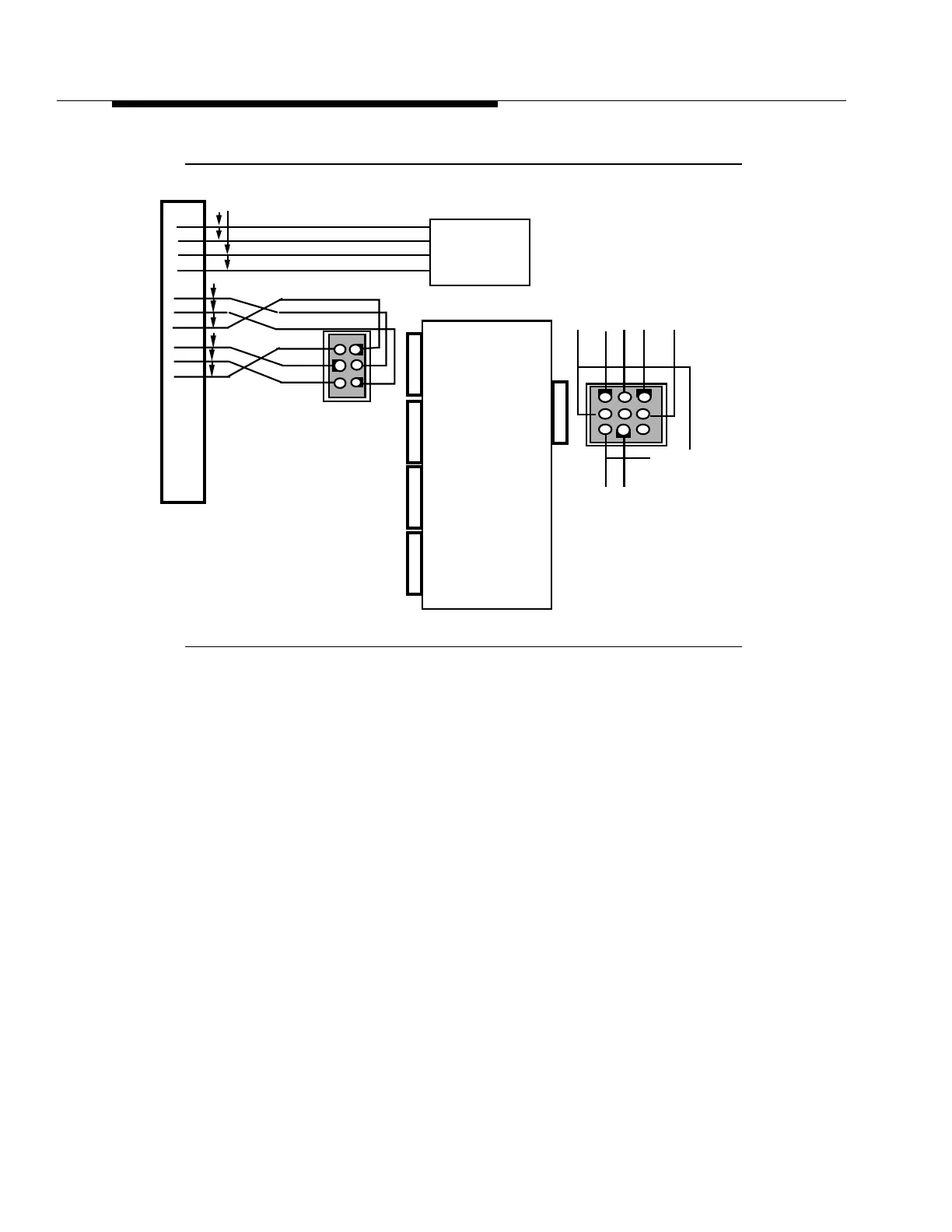

Figure A-8. Power and Ringing Cabling
J116-2 (for COT Bay 2)
p/o Ringing Shelf
e/w 2 Ringing Supplies
J1C182BC-1 or equivalent
p/o ED7C734-30 Power Interface Unit
Refer to SD7C180-01 CAD 2 for details
TB1
-48V A
A RTN
-48V B
B RTN
P, 10ga (max)
BDFB or equivalent -48V DC Power Source
30 amp breaker A
RTN
30 amp breaker B
RTN
1
2
3
4
J116-1 (J100)
-20Hz A
20Hz RTN
+20Hz A
5
6
7
T, 24ga
1
3
4
6
-20Hz B
20Hz RTN
+20Hz B
T, 24ga
J117
8
9
10
13
7
9
FRQ MJ2 MN1 MN2
RTN -48v
MJ1
to ALM XConn (MDF)
to Fuse Panel
P117
Application Figure 6
J116-4 (for COT Bay 4)
J116-3 (for COT Bay 3)
ED7C723-35 G-10
Cable Assembly
ED7C723-35 G-9 Cable Assembly
BK
W
R
BK
W
R
S
R
W/G O/WW/BLBL/WW/O
P116
(J1C182BD-1 or equivalent)
