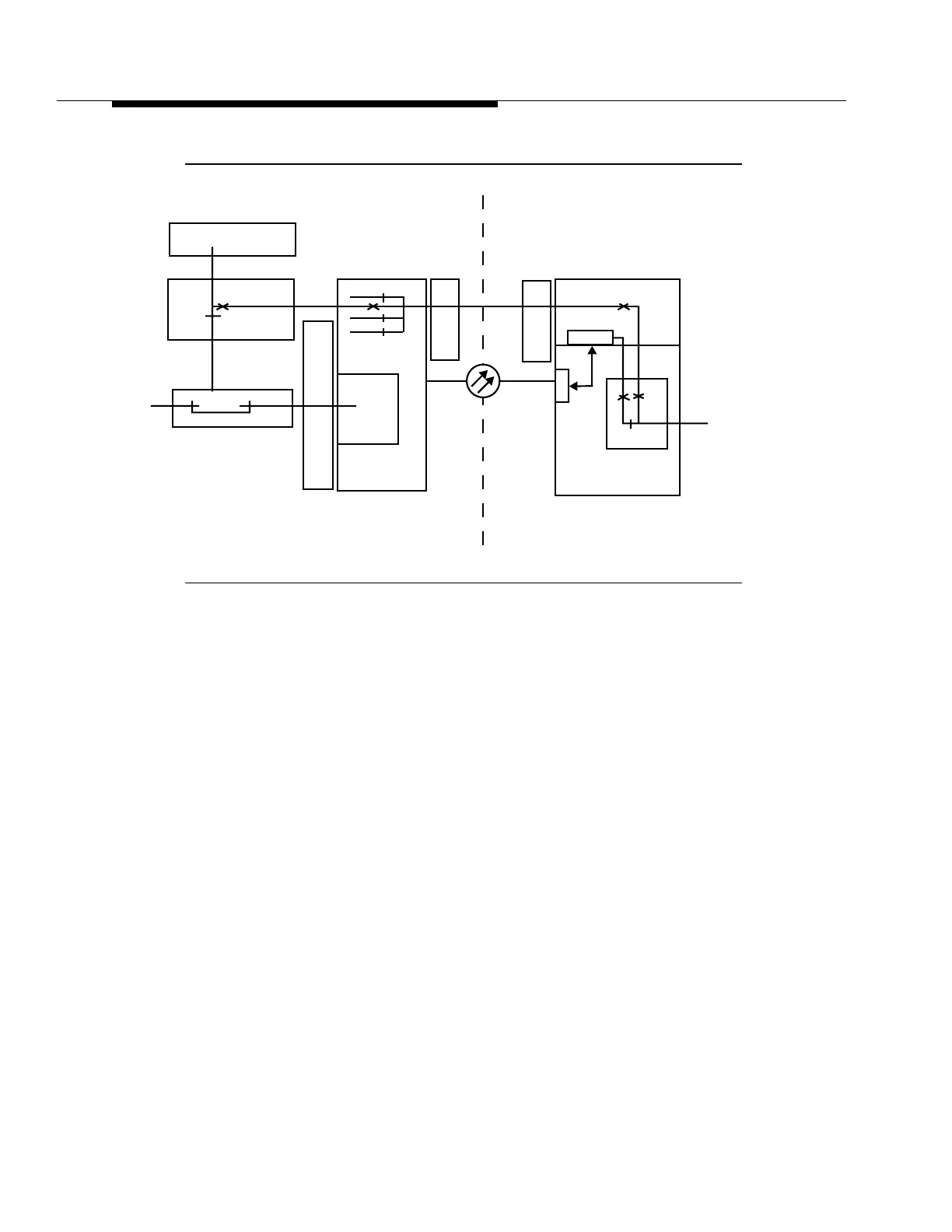

Figure A-9A. Typical Test Pair Arrangements
DC Test Pair
SLC -2000 COT
CU
MDF
MLT
PGTC
Switch
ATU
Central Office
Term.
CU
SLC -2000 RT
Loop
PTU
Remote Site
MDF
FDI
