Lucent Technologies SLC-2000 Access System Central Office Terminal User Manual

3-6 Issue 4 February 1997
363-208-011
Cabling, Wiring, and Assembly
AMP Mate-N-Lok II
*
Connectors
AMP Mate-N-Lok II connectors are provided in various housings which accept a
variety of pin sizes dependent upon the gauge of wires used. These pins are the
crimp and solder type requiring only standard crimping and soldering tools. Each
AMP Mate-N-Lok II connector is keyed to fit with its mating connector. Pin
positions are identified by embossed numbers on the flat-sided surface areas of
some positions. Consult Figure 3-3 for connector engagement and Figure 3-4 for
pin replacement procedures.

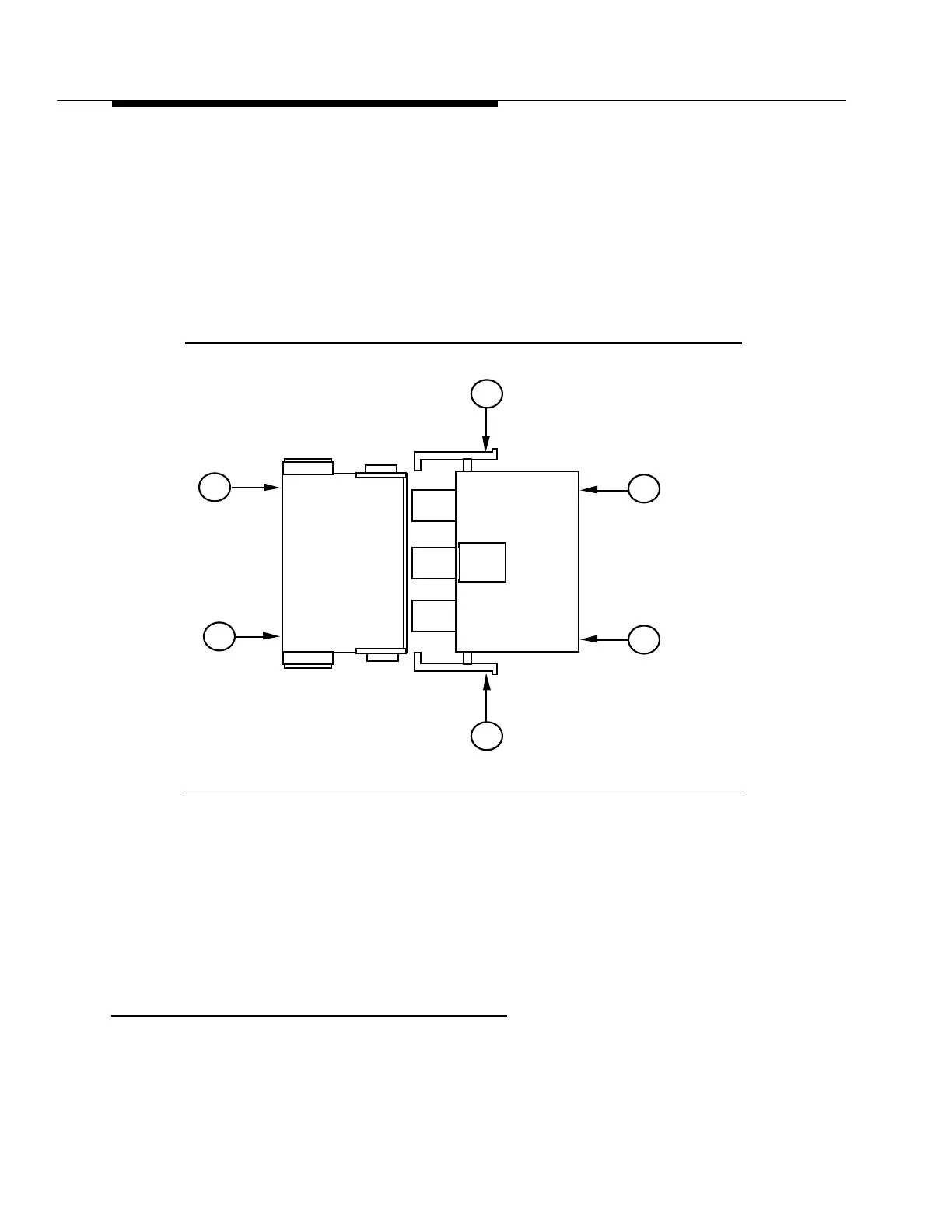

Figure 3-3. AMP Mate-N-Lok II Connector
* Registered trademark of AMP, Inc.
1
1
2
2
2
2
1 Press to unlock
2 Push to engage
