Page 22
Assigning Outputs/Circuits to a Group
1) Under the column heading labeled “Assigned Group” select “Setup”. This can also be accomplished by selecting Group
from the toolbar then selecting “Setup”.

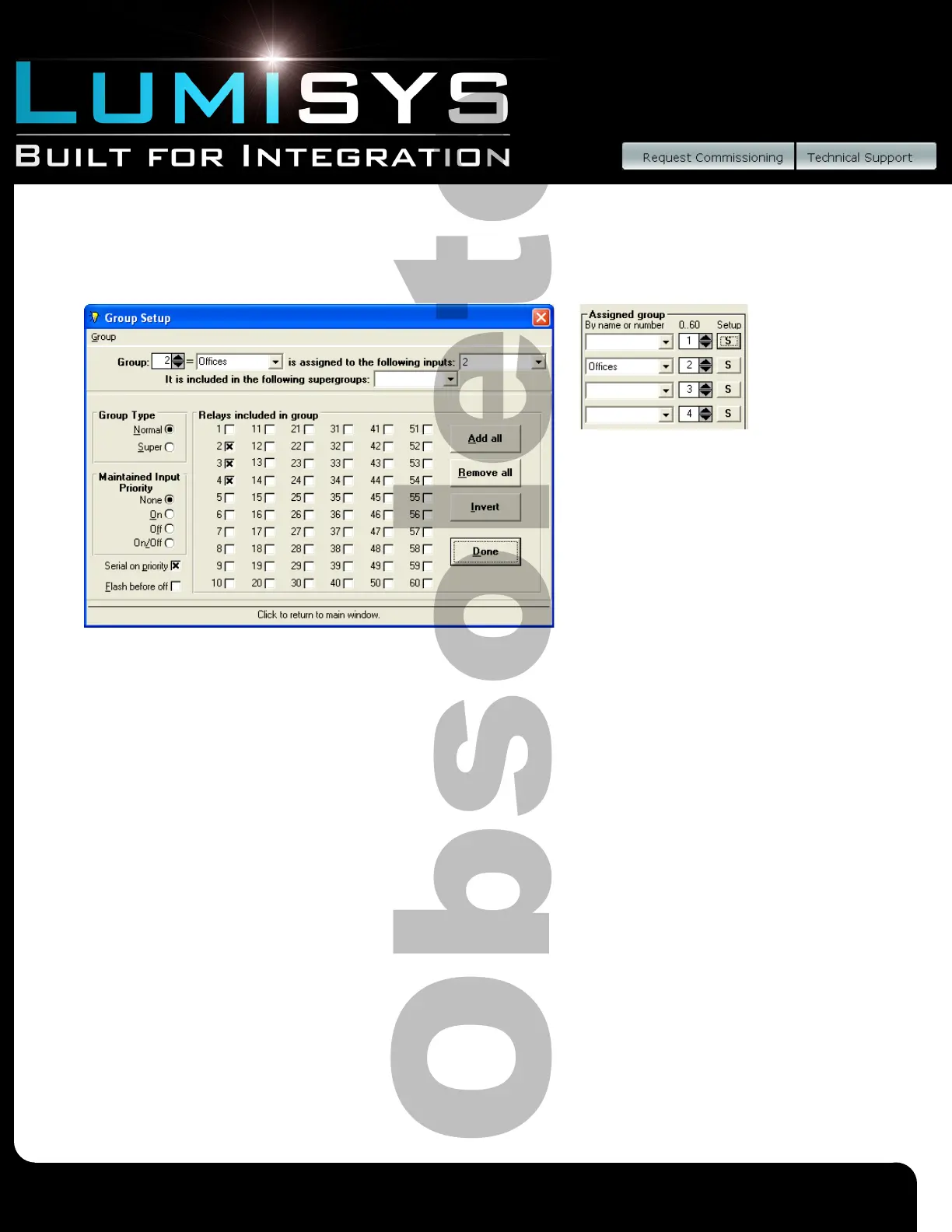

2) The Group Setup screen should appear.
3) Select the desired Group between 1-60, to be created or modied.
4) Once the Group number is selected, click on the box associated to the output/ relay number to be added to the group.
Select each respective box until all the desired outputs/relays are assigned to this group. There are buttons to the left
labeled “Add All” to add all relays to the group; “Remove All” to delete all from the group and “Invert” to select the outputs
that are not checked.
5) Repeat steps 3-4.
6) To save this information to a le or to the LRP Controller see “General LRP Controller Data - Save File and Write Database
to LRP Controller”.
Naming Groups
1) Under the column heading labeled “Assigned Group” select “Setup”. This can also be accomplished by selecting Group
from the toolbar then selecting “Setup”.
2) The Group Setup screen should appear.
3) Select the desired Group between 1-60, to be named.
4) In the box next to the Group number type up to 15 characters to name the output.
5) Repeat steps 3-4.
6) To save this information to a le see “General LRP Controller Data - Save File and Write Database to LRP Controller”.
These names are saved in the .lpx le so be sure to “Open Names” after opening the LRP Controller database.
Obsolete
