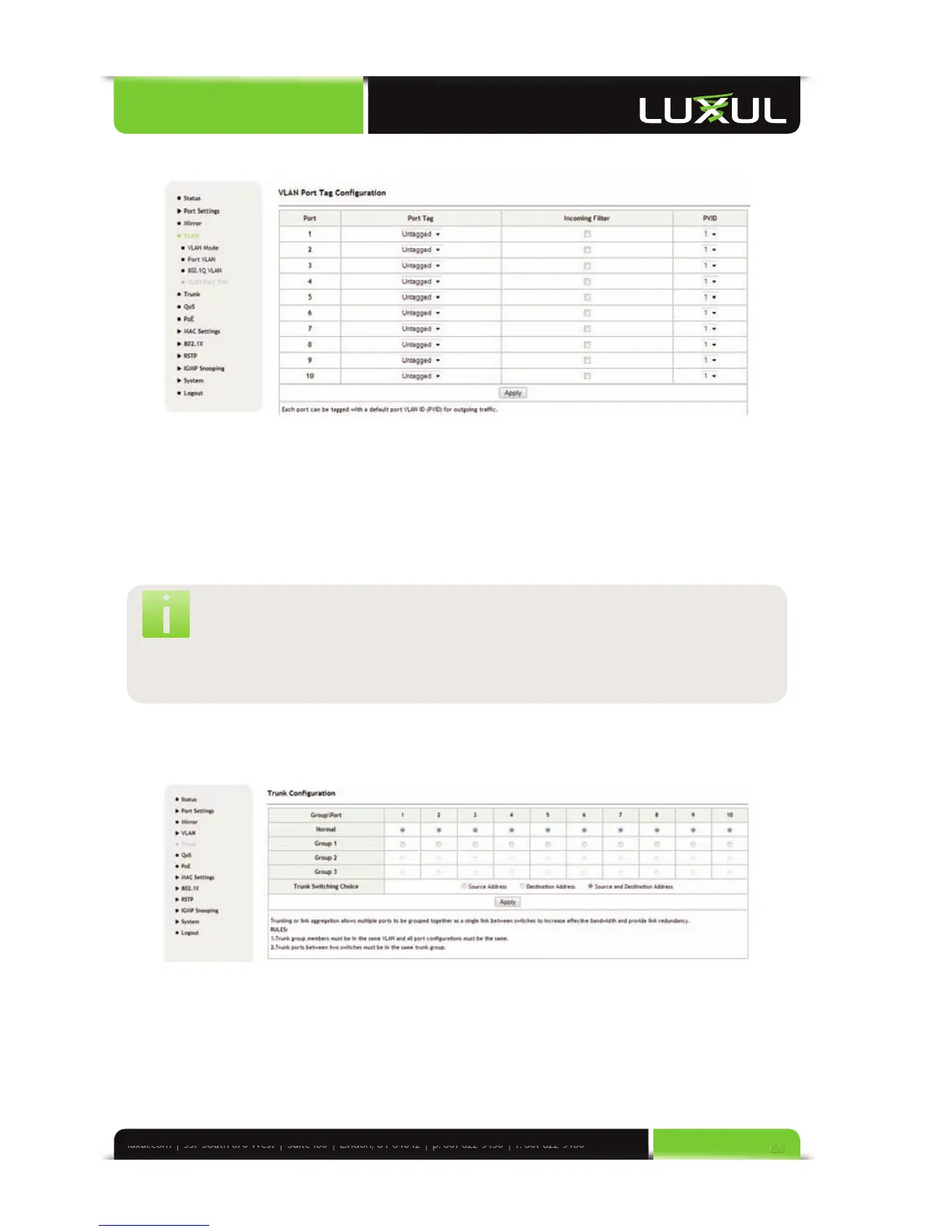

5.6.4 VLAN Port Tag Confi guration
Port Tag: Sets the Tag attribute for the corresponding port. The Port Tag rule
specifi es the changes to be made upon packet transmit. Available options are
to either add the VID tag to the frame or to remove the VID tag from the frame
(Tagged/Untagged)
Incoming Filter: Specifying the Incoming Filter rule determines whether to receive
or not receive the VID tagged packets that are inconsistent with the port PVID
NOTE: Checking the Incoming Filter box will drop all packets sent to
the port that do not have the specifi ed PVID (i.e. if the packet
is tagged as one and the PVID is set to two the packet will be
dropped.)
PVID: Sets the VLAN ID (VID) of the specifi ed port
5.7 Trunk
Trunk Confi guation
Trunking is used to expand bandwidth, for failover, and/or to increase error toler-
ance when networking multiple switches together.
