5.5.1 VLAN Mode
5.5.2 Port VLAN
5.5.3 802.1Q VLAN
Configuration
5.5.4 VLAN Port Tag
Configuration

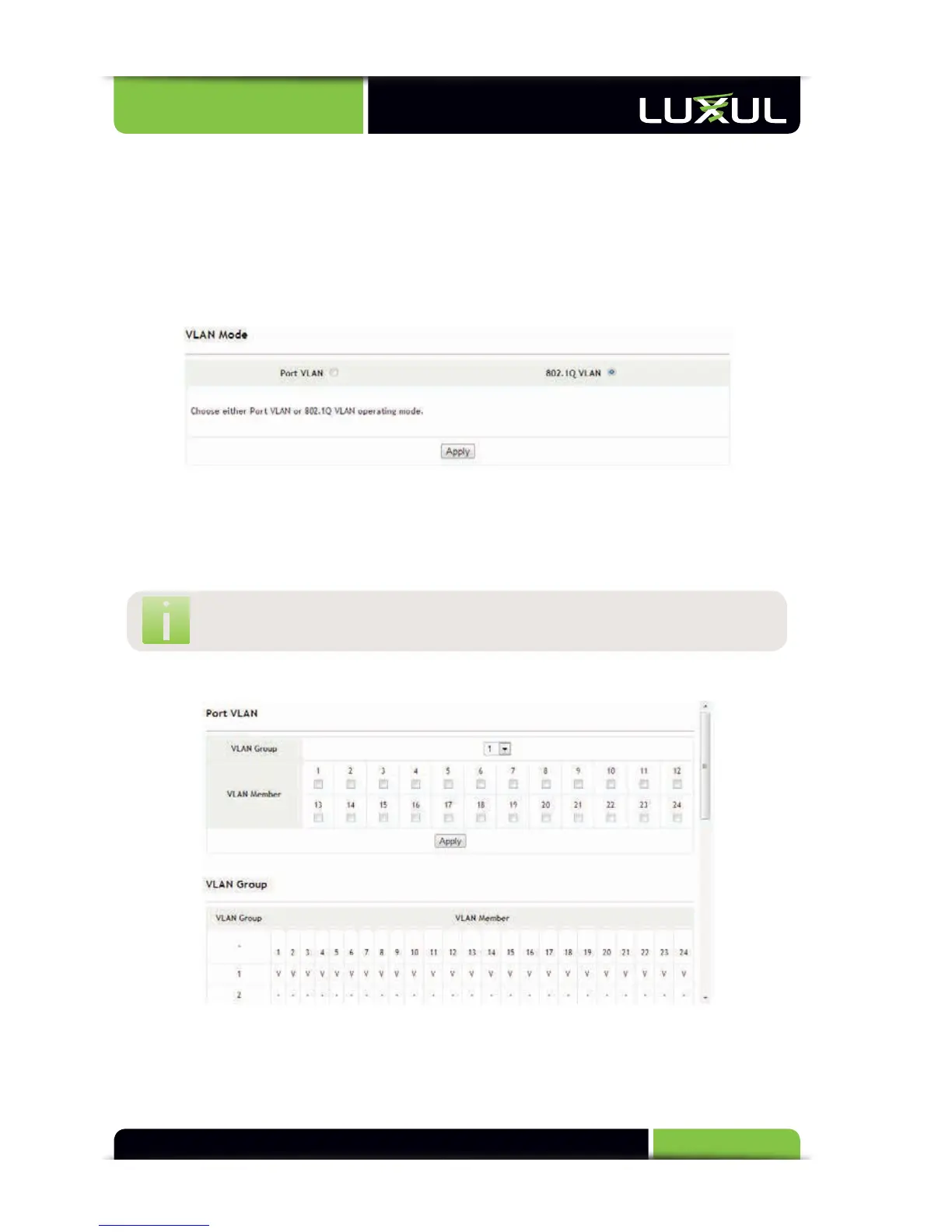

5.5.1 VLAN Mode
Two VLAN modes are available: Port VLAN and 802.1Q VLAN
Port VLAN: This option sets the XMS-1024 to operate in port VLAN mode
802.1Q VLAN: This option sets the XMS-1024 to operate in 802.1Q VLAN mode
NO
TE:
When
one
VL
AN
mode
is
s
elected,
the
other
mode
will
be
dis
abled
5.5.2 Port VLAN
Port VLAN Configuration: Port VLAN uses the physical ports of the switch to
distinguish between VLANs.
