User Guide
25
5.8.2 Static MAC

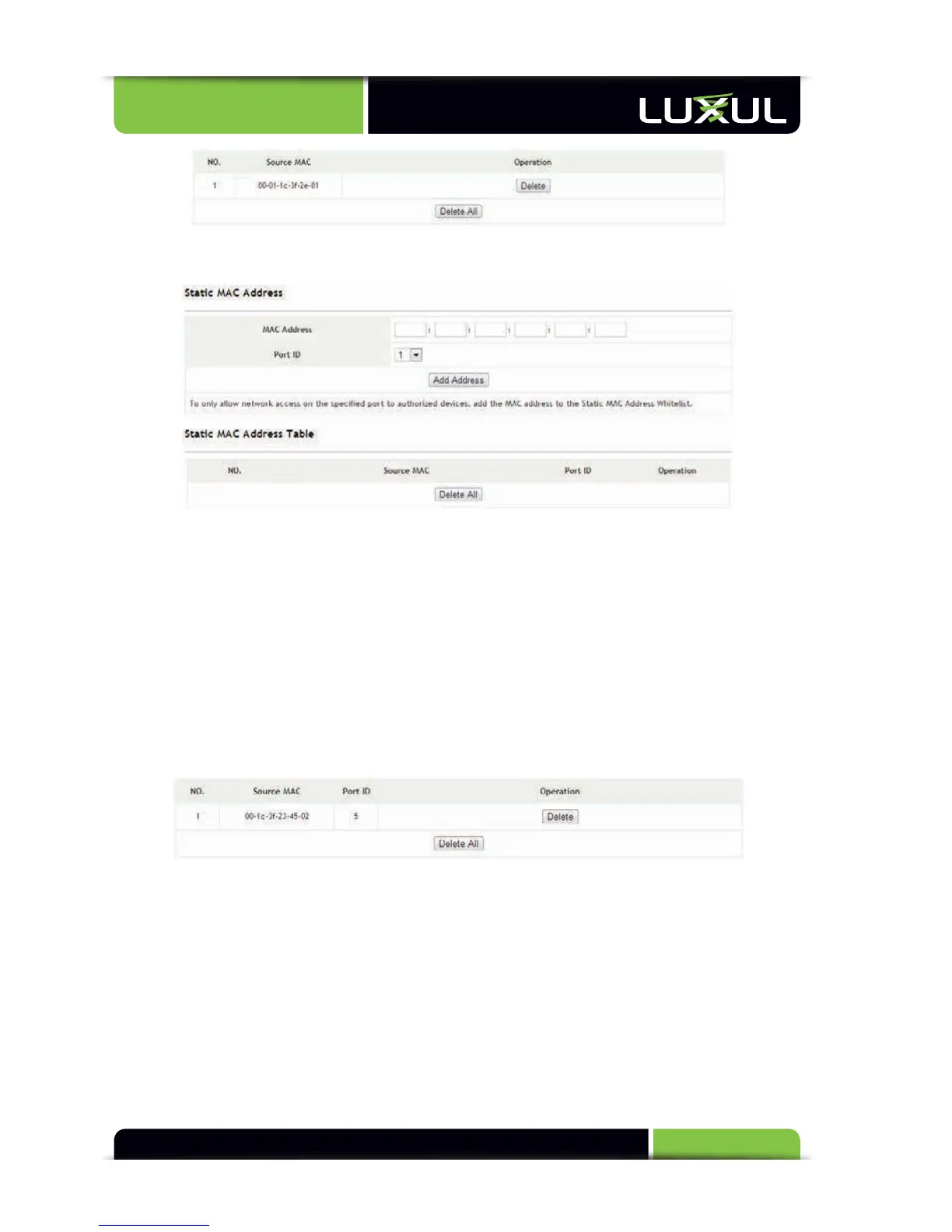

A Static MAC Address assigns and binds a particular MAC address to a specified
port. Data transmission of that MAC address can then only be forwarded through
the corresponding port.
w
MAC Address: Enter the MAC address to be assigned
w
Port ID: Select the port to which the MAC address will be bound
Static MAC Address Table: Lists bound MAC addresses and the ports to which
they have been assigned, as shown below. You can click “Delete” on the right
to delete the corresponding MAC address assignment or click “Delete All” to
remove all MAC address bindings.
5.9 802.1X
802.1X provides methods and policies for authenticating network users and allow
for network access. It is a port-based authentication policy, for the purpose
of controlling access to a particular port. It “enables” the port upon successful
authentication to allow transmission of all data or “disables” this port upon failed
authentication.
5.9.1 802.1X Configuration
5.9.2 802.1X Port
Configuration
