7.5.2 Monitor Page
The Monitor page is where signals are routed, levels and pan settings are established, and meters can be viewed for all channels on the
Hilo. It is visible whenever the “Monitor” button is green in the Navigation Bar. The section on the right, with the Play and Record
devices, is only visible when the LSLOT button is green.
The upper row of faders are for the inputs. These are the physical inputs, Line In and Digital In, on the left, and Play streams from the
computer on the right (again, only visible when “LSlot” is selected from the Navigation Bar). In 8-chanel mode (USB Only), Play
Devices 1-8 will appear here, and in 16-channel mode, Play 1-16 will appear, always grouped in stereo pairs. When a valid ADAT
light pipe source is connected to the Hilo ADAT Input, then the ADAT input channels will appear between the physical inputs and

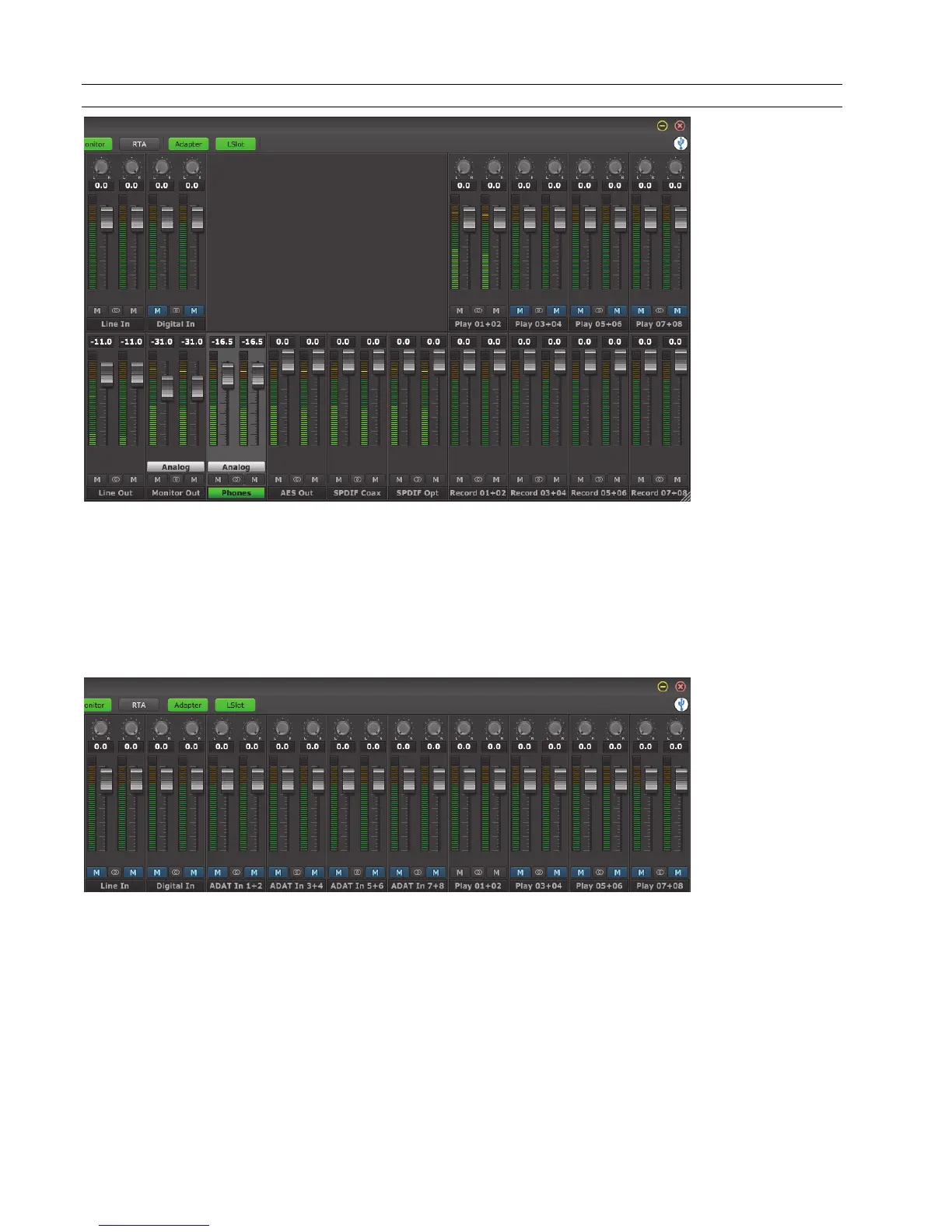

play devices, like this:
The purpose of this pane is to show input signal meter activity, allow assignment of physical inputs to record devices within the
operating system, and manage the levels, routing, and pan positions of input signals being monitored through Hilo outputs.
The bottom row of the monitor page reveals the physical outputs, Line Out, Monitor Out, Phones Out, and the Digital Outputs. To the
right, if the “LSLOT” button is green in the Navigation Bar, the Play streams from the computer will appear. Like with the Play
Devices, in 8-chanel mode Record Devices 1-8 will appear here, and in 16-channel mode, Record 1-16 will appear. If the Optical Out
Mode on the Adapter page is set to “ADAT”, then the ADAT Outputs will appear between the physical outputs and the play streams,
like this:
