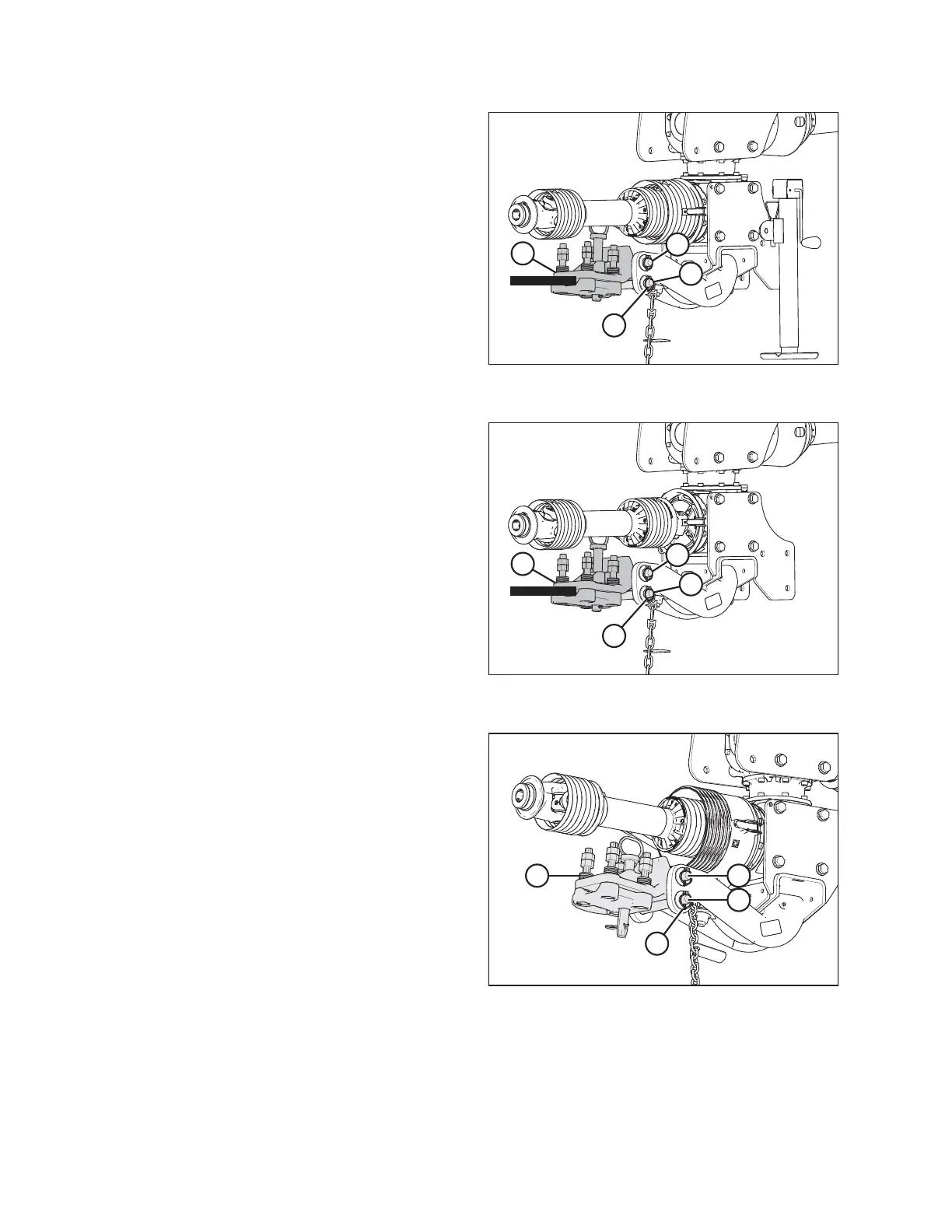

Figure 6.7: Rotary Disc Pull-Type Hitch – Model Year
2018 and Prior
1026350
A
B
C
D
Figure 6.8: Rotary Disc Pull-Type Hitch – Model Year
2019
1030355
AB
D
C
Figure 6.9: Rotary Disc Pull-Type Hitch – Model Year
2020 and Later
4. Lower the hitch with the jack so that pin (A) engages
drawbar hitch adapter (B).
5. Install clevis pin (C) and secure with lynch pin (D).
