214633 69 Revision C

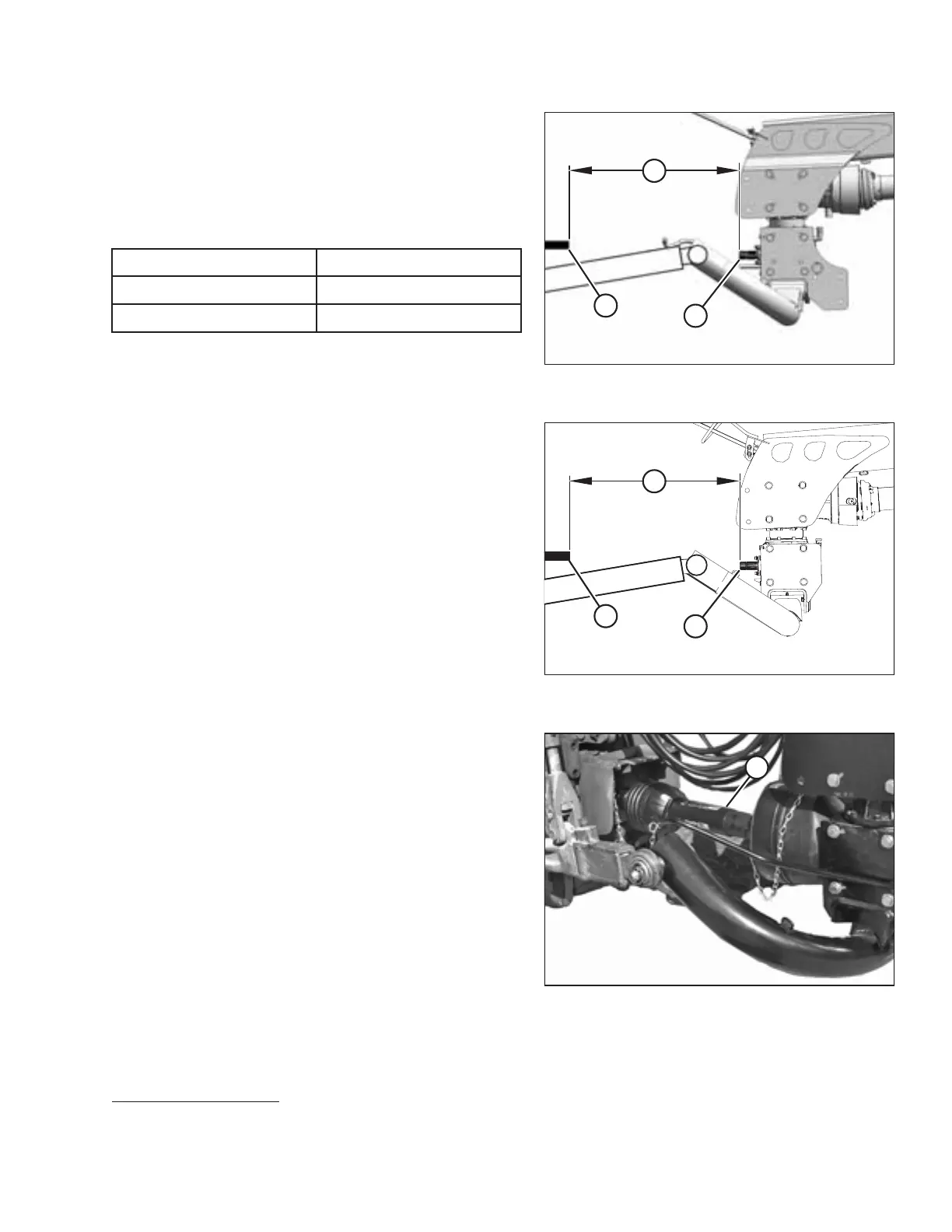

Figure 6.20: Allowable Driveline Length – Model Year
2019 and Prior
Figure 6.21: Allowable Driveline Length – Model Year
2020 and Later
6. Check distance (C) between tractor primary power take-off
(PTO) shaft (A) and rotary disc pull-type hitch gearbox
shaft (B) without the front half of the driveline attached.
7. Ensure that distance measurement (C) does NOT exceed
the dimensions listed in Table 6.1, page 69.
Table 6.1 Distance between Hitch Gearbox and Tractor PTO
Driveline Shaft Size
Distance (C)
9
34 mm (1 3/8 in.) 650 mm (25 9/16 in.)
43 mm (1 3/4 in.) 750 mm (29 1/2 in.)
Figure 6.22: Driveline Attached to Tractor PTO
8. Position primary driveline (A) onto the tractor’s PTO shaft,
making sure that the driveline is approximately level.
9. Pull back the collar on driveline (A) and push the driveline
until it locks. Release the collar.
REFERENCE
9. If distance (C) is greater than the values shown, a longer driveline is required. Refer to the rotary disc pull-type
operator’s manual, options and attachments section for ordering information.
