Magnescale LT10A-105 - Setting the Measuring Mode

LT10A / LT11A Series
20 (E)
3 Push
SET
to set.
Set mode flashes.
The other channel A modes disappear.
4 Push
MODE
to select the setting mode for channel B.
Currently set channel B mode flashes.
5 Same as 2.
6 Push
SET
to set.
Modes set for channels A and B flash.
7 Push
MODE
to return to the measuring state.
Modes set for channels A and B light.
Note
If you do not press
SET
the previous settings will be kept.
M A X
A
M A X
P ―P
A
B

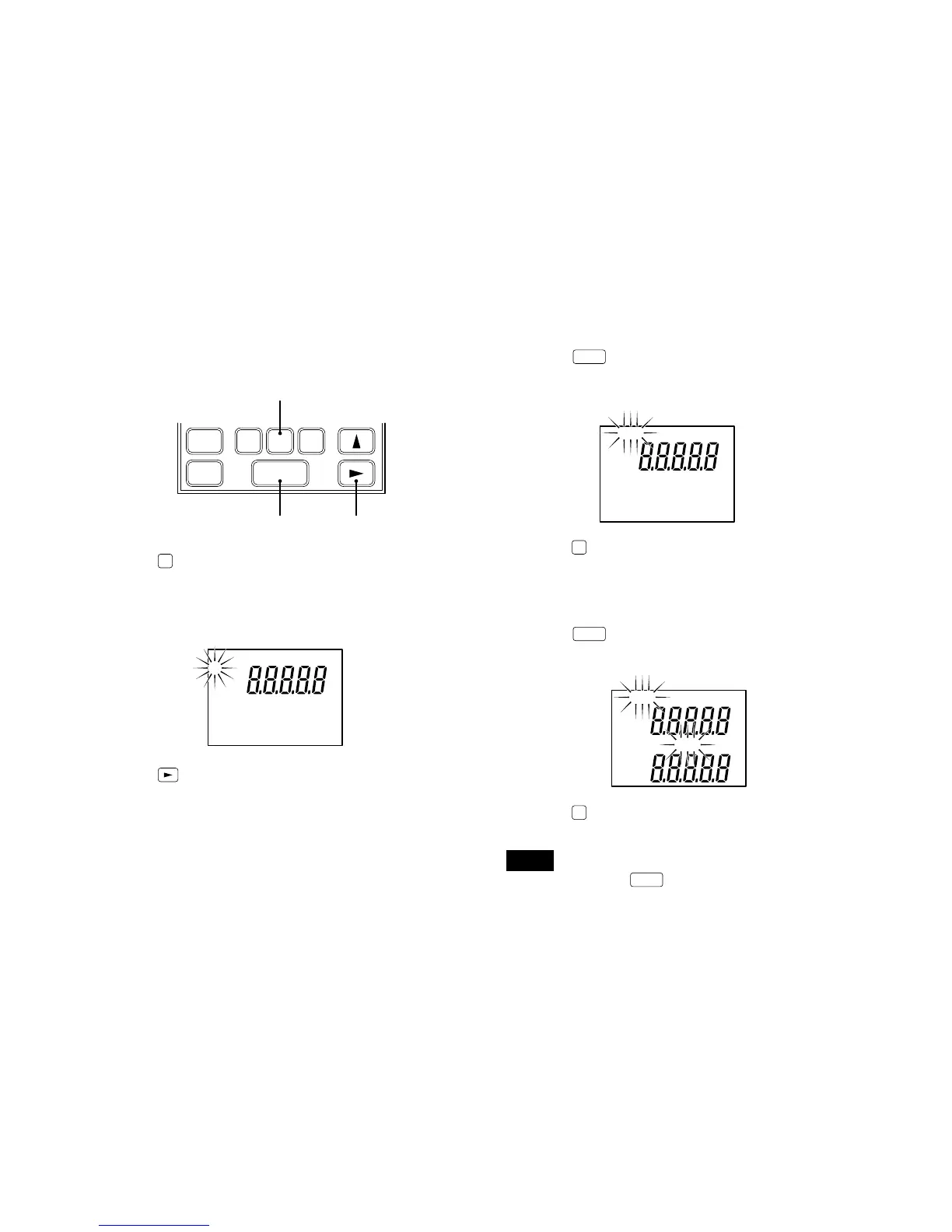

5-2-2. Setting the measuring mode
1 Push
MODE
to select the mode for setting a measuring
mode (current value, maximum value, minimum value,
or peak-to peak value) for channel A.
∗ Each of there modes are indicated “A”, “MAX”, “MIN”
and “P-P”, respectively.
2 Push
to select a measuring mode.
The selected mode’s indicator flashes.
3, 6 2, 5
1, 4, 7
SET
P
MODE COMP
RESET
B
RESET
A
M A X M I N P ―P
A
