5. Operation
This sections uses the 2 channel model in its explanations.
The 1 channel model is the same as the 2 channel model
without the B channel.
BCD and RS-232C models are noted in the text.
5-1. Initial settings
An initialization is carried out at the time of shipping;
however it is possible to make the following selections
depending on intended use. Details of the settings at the
time of shipping are given in each section.
• Changing between inches/mm
Turn on power while holding down
RESET
A
and press
MODE
key.
Press
to change between inches/mm.
Press
SET
to set and return to the measuring state.
• Device is set to mm at the time of shipping.
• To change the initial settings hold down the
SET
key and
press the
MODE
key for approximately 2 seconds.
Basic operation
MODE
: to the next item.
: Select item.
SET
: Set item.
Note
• Even if you select an item with the
key, no changes
will be mode until you press the
SET
key.
• Once the initial setting mode has been entered it is not
possible to return to the measuring state partway
through. Press the
MODE
key repeatedly to skip the items.
5-1-1. Basic settings

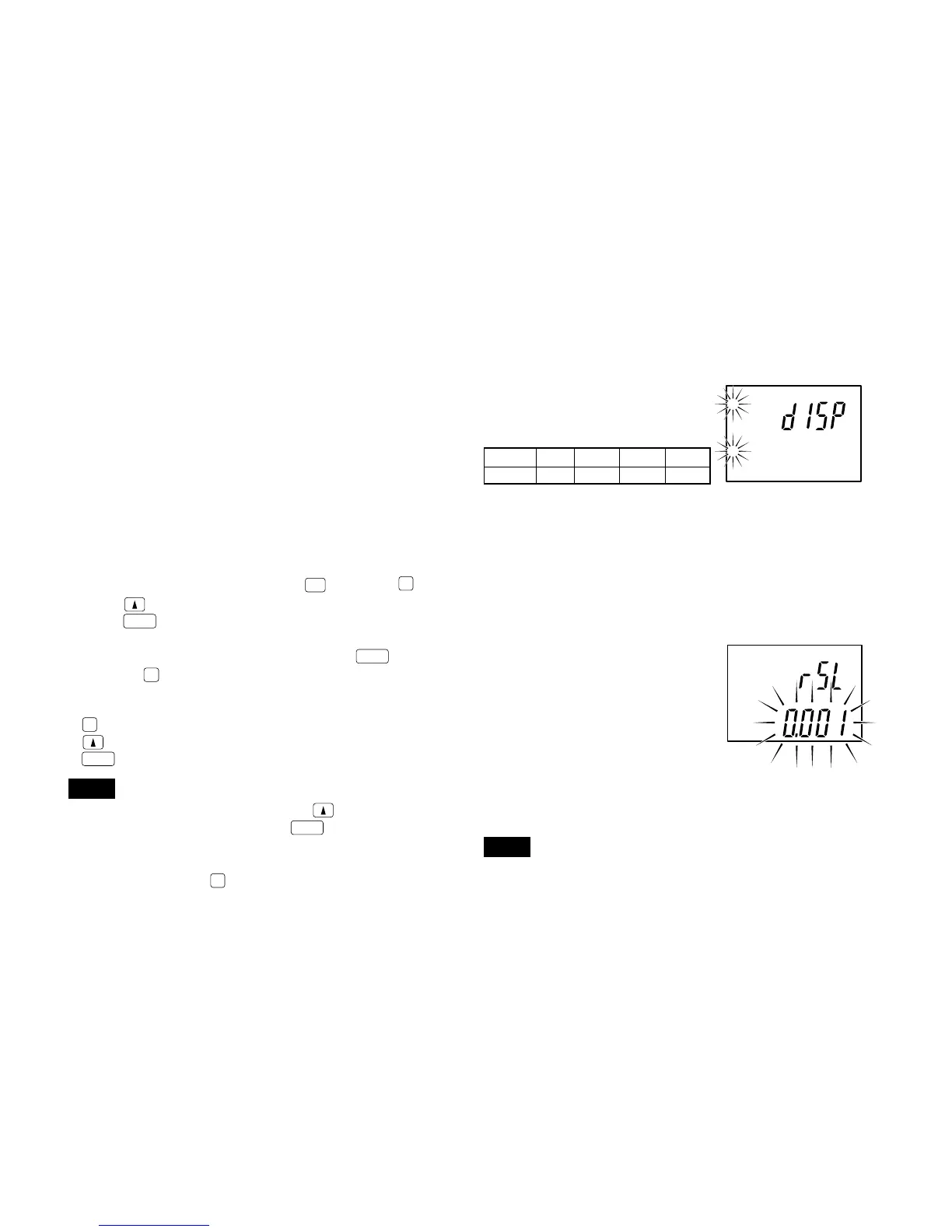

1. Setting the display
(2 channel models)
One of the following may be
chosen:
When the upper display A+B is
selected, the lower display only
shows the current value of the
selected channel and no
operation can be made on the
lower display.
2. Setting the display resolution or direction
(channel A)
0.001/0.005/0.01/–0.001/–0.005/
–0.01 mm
• With the measuring unit’s
spindle pushed in:
+: positive direction
–: negative direction
∗ When set to inches, values are chosen from 0.0002,
0.0005, –0.0002, and –0.0005.
Note
With the LT10A series, 0.001 mm and –0.001 mm (0.0001"
and –0.0001") are not avaible.
Upper AA+BA+BA+B
Lower BA B –
factory-set
factory-set (LT11A)
A
A
B
